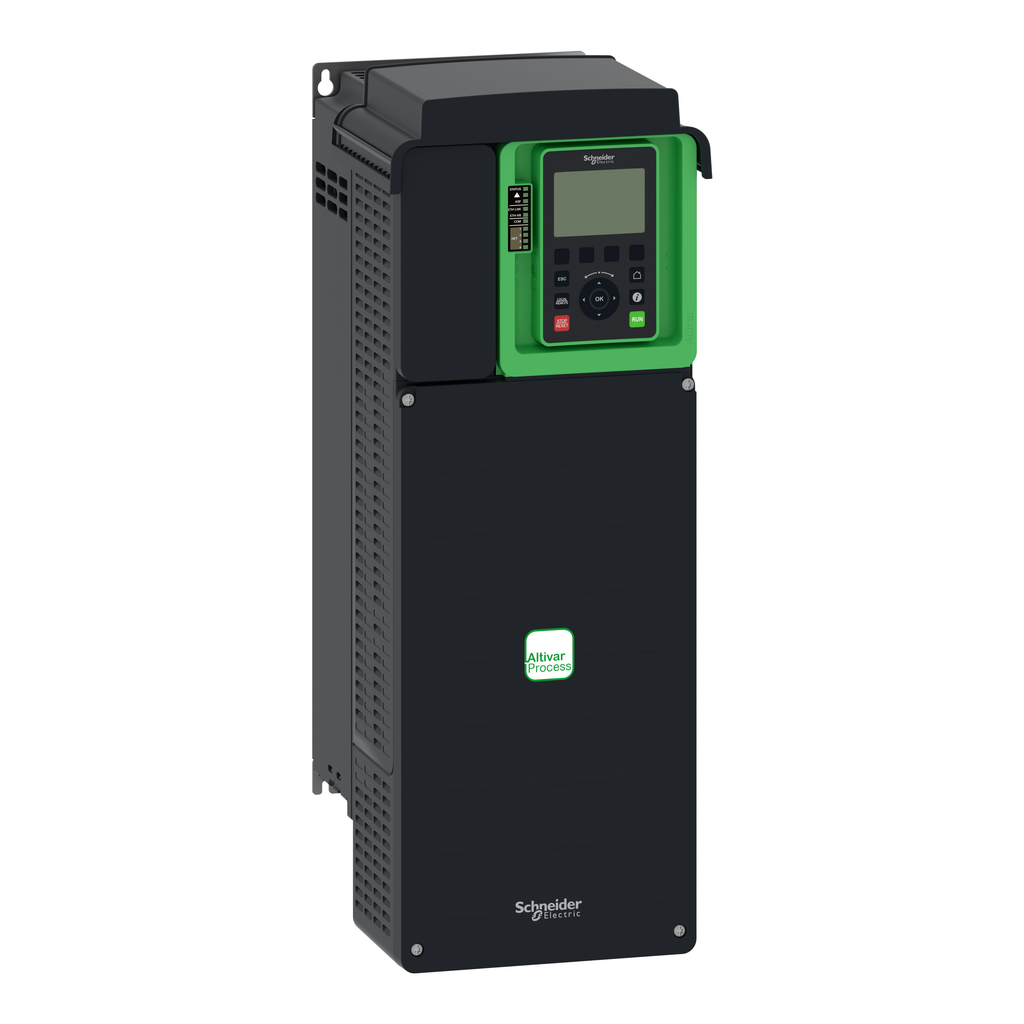

Schneider Electric ATV630D15N4 SQD variable speed drive 15kW 20hp

Product Description

The Schneider Electric ATV630D15N4 is a variable speed drive designed for controlling three-phase synchronous and asynchronous motors. This drive operates within a supply voltage range of three hundred eighty to four hundred eighty volts AC. It includes built-in communication ports for easy connectivity, featuring three RJ45 ports, one Ethernet port, and two serial ports.

• Energy-efficient design with up to thirty percent savings during standby.
• Accommodates motors rated up to fifteen kilowatts or twenty horsepower.
• Available for applications requiring slight and significant overloads.

Product Highlights

This drive is particularly suitable for applications in water management, mining, and food processing.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• MPN: ATV630D15N4
• Catalog Number: ATV630D15N4
• Net Weight: 13.6 kg
• Dimensions: 211 mm width, 546 mm height, 232 mm depth
• Applications: Synchronous and asynchronous motors, process utilities
• Mounting Type: Wall-mounted
• Country of Origin: India
