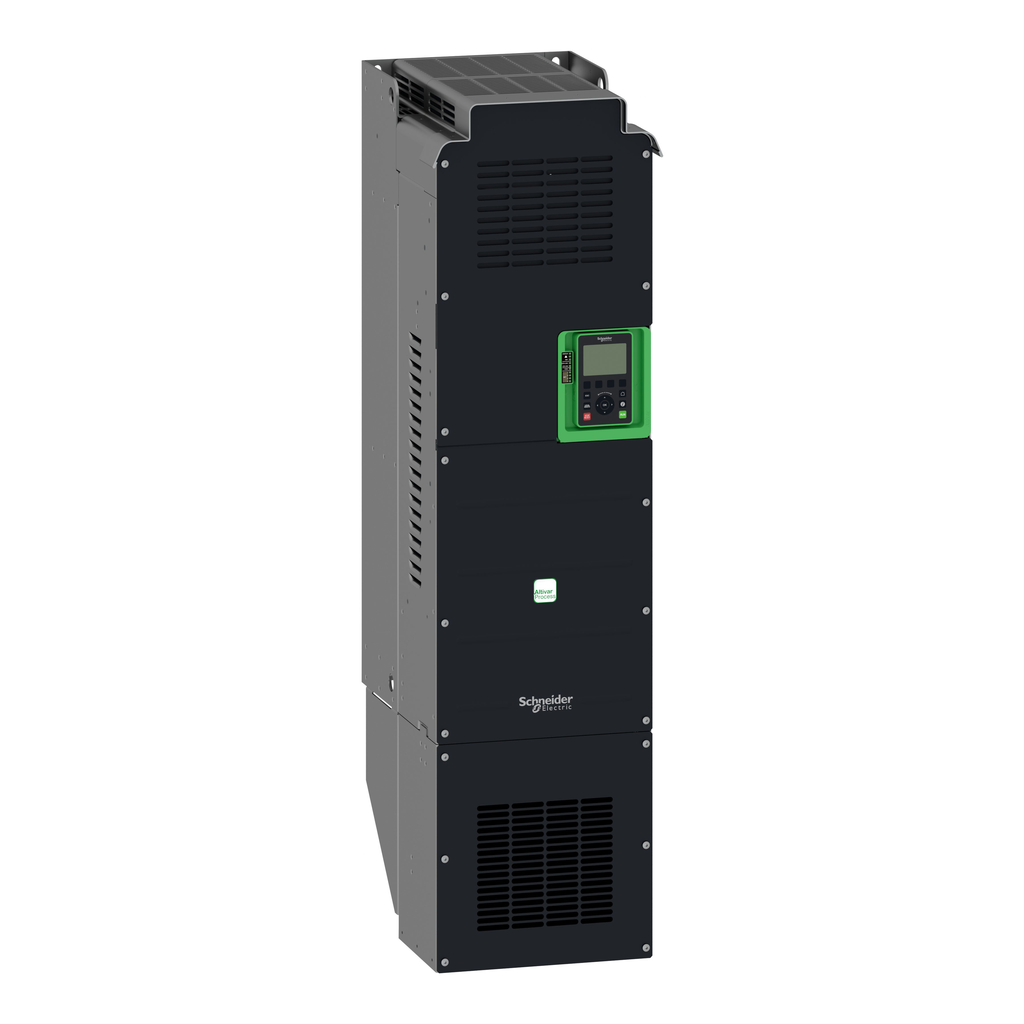

Schneider Electric ATV630C16N4 variable speed drive 160kW 250hp 380 to 480V replacement MPN

Product Description

The Schneider Electric ATV630C16N4 is a variable speed drive designed for 3-phase synchronous and asynchronous motors. This device supports a supply voltage range of three hundred eighty volts to four hundred eighty volts AC. It includes three RJ45 communication ports, one Ethernet port, and two serial ports. The drive saves energy by up to thirty percent during standby periods through its Stop and Go operation.

• Designed for motors up to 160kW / 250hp with slight overload capability.
• Supports significant overload applications for motors up to 132kW / 200hp.
• Compact dimensions of 320mm wide, 852mm high, and 390mm deep with a weight of 82kg.

Product Highlights

This drive is ideal for applications in water management, oil and gas, and food and beverage sectors. Its flexible design allows wall mounting in a vertical position with an angle adjustment of +/- 10 degrees.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: ATV630C16N4
• Weight: 82 kg
• Dimensions: 320 mm (width) x 852 mm (height) x 390 mm (depth)
• Rated Supply Voltage: 380V to 480V AC
• Energy Saving: Up to 30%
• Compatible Motors: Synchronous and asynchronous
• Environmental Conditions: -15 to 50 degrees Celsius
• Certifications: ATEX, CSA, UL
