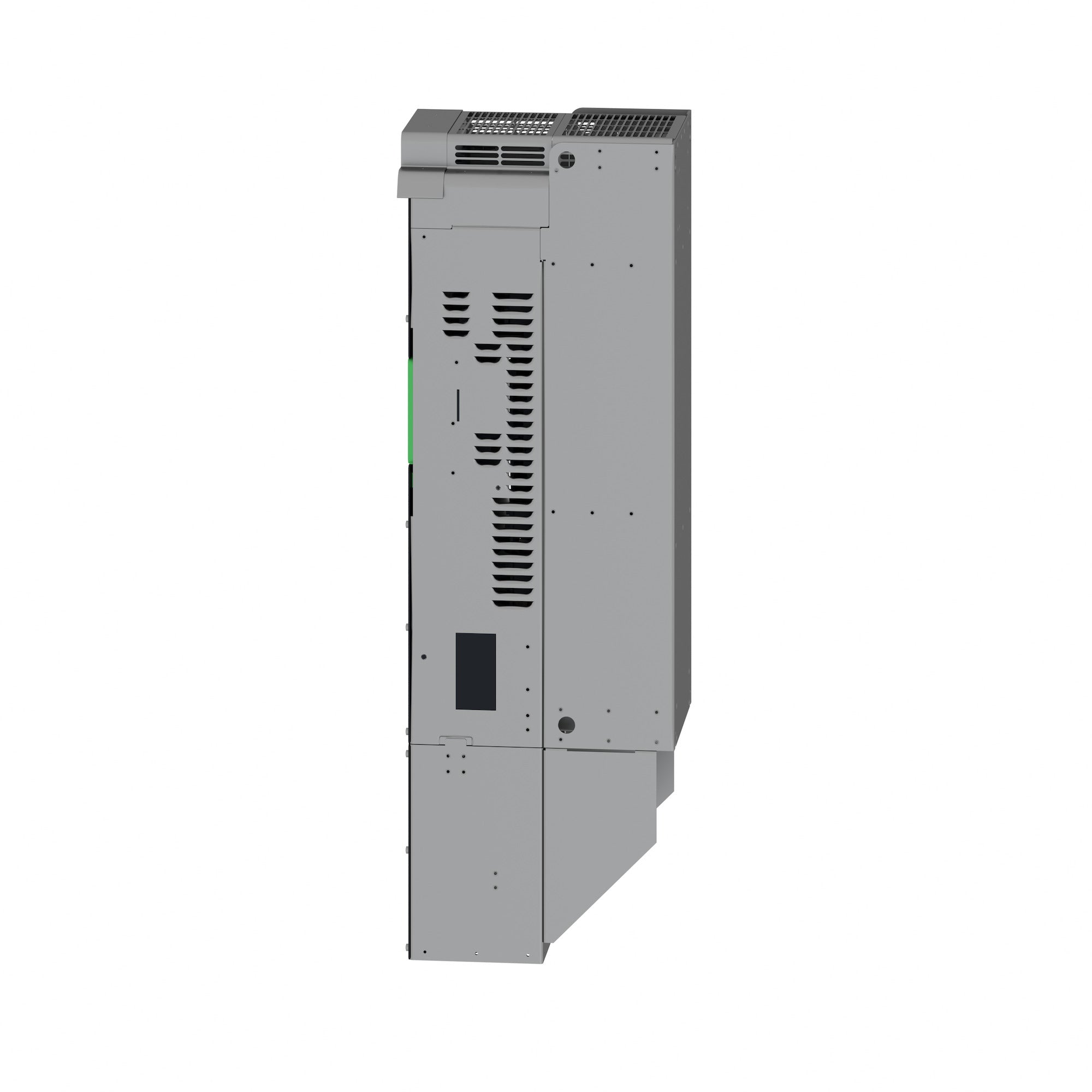

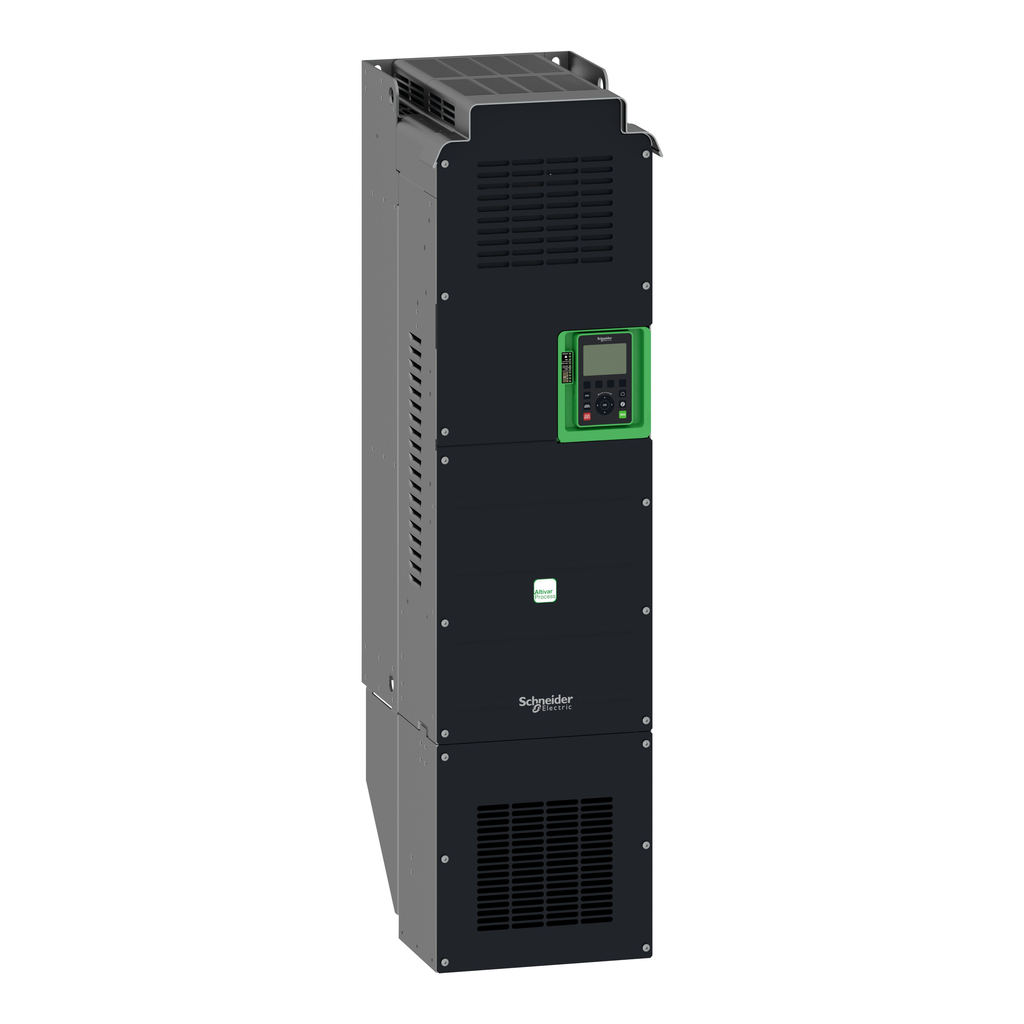

Schneider Electric ATV630C11N4 variable speed drive 110kW 150hp 380 to 480V

Product Description

The Schneider Electric ATV630C11N4 is a variable speed drive designed for 3-phase synchronous and asynchronous motors. It operates at supply voltages ranging from 380V to 480V AC and is equipped with 3 built-in RJ45 communication ports, including 1 Ethernet and 2 serial ports.

• Supports motors up to 110kW/150hp with slight overload.
• Energy-saving features, achieving up to 30% savings during standby.
• Vertical wall mounting capability.

Product Highlights

This drive is efficient for fluid management applications in sectors like wastewater treatment, mining, and food processing. It provides flexibility and effective energy management.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: ATV630C11N4

Technical Specifications

• Type: Variable speed drive
• Power Rating: 110kW / 150hp
• Voltage: 380V to 480V AC
• Weight: 82 kg
• Dimensions: 320 mm wide, 852 mm high, 390 mm deep
• Number of Phases: 3 Phase
• Mounting Type: Wall-Mounted
• Country of Origin: India
