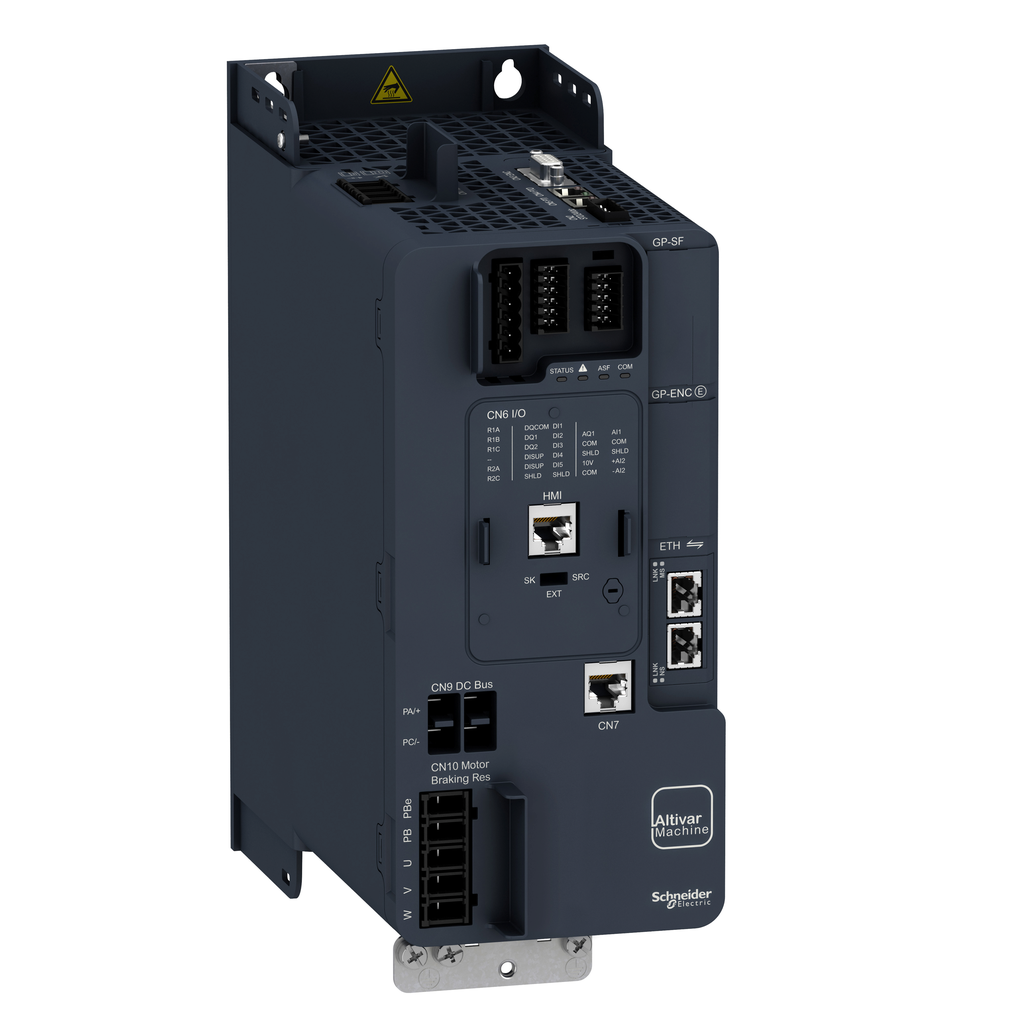

Schneider Electric ATV340U75N4E SQD variable speed dri 7.5kW 3 phases Ethernet

Product Description

The Schneider Electric ATV340U75N4E is a variable speed drive designed for 3-phase synchronous and asynchronous motors. It operates efficiently in both open and closed-loop control systems.

• Rated power up to 7.5kW / 10hp
• Rated voltage range from 380V to 480V AC
• Multi-protocol Ethernet and Modbus TCP communication

Product Highlights

This model is built for heavy-duty applications, suited for harsh environments. It features high temperature resistance, weighing three kilograms with compact dimensions of one hundred ten millimeters wide, two hundred seventy millimeters high, and two hundred thirty-four millimeters deep.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ATV340U75N4E
• Output Voltage: <= power supply voltage
• Weight: 3 kg
• Width: 110 mm
• Height: 270 mm
• Depth: 234 mm
• Country of Origin: Indonesia
• Certifications: CE, UL, CSA, T.V
