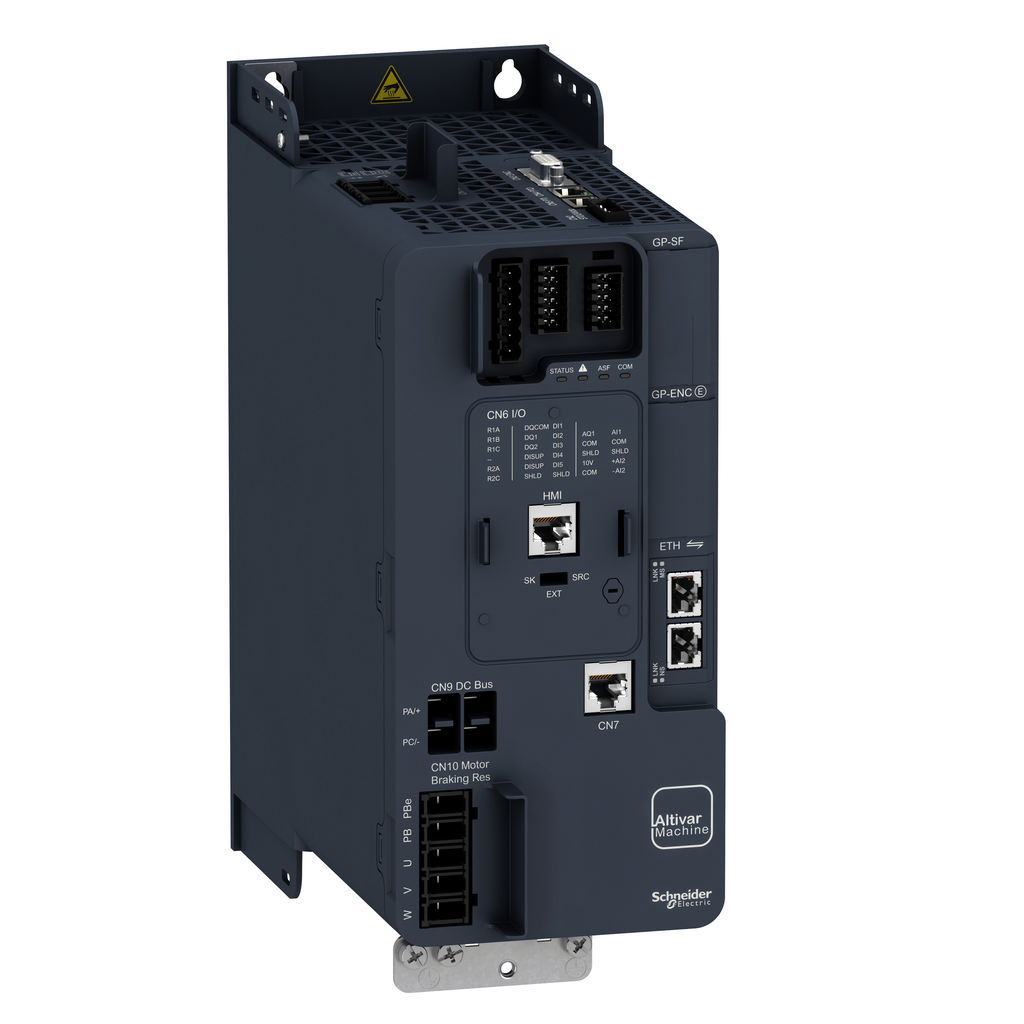

Schneider Electric ATV340U55N4E variable speed dri 5.5kW 3 phase 400V

Product Description

The Schneider Electric ATV340U55N4E is a variable speed drive that supports three-phase synchronous and asynchronous motors, enabling open and closed loop control. It operates at a power level of up to five point five kilowatts or seven point five horsepower and accommodates voltage levels ranging from three hundred eighty to four hundred eighty volts AC.

This drive is designed for use in challenging environments, effectively handling vibrations, shocks, and non-conductive dust. It can withstand temperatures up to sixty degrees Celsius. The ATV340 includes Modbus serial line communication protocols as standard and features integrated multi-protocol Ethernet, including Ethernet IP and Modbus TCP interfaces.

• Rated power: 5.5kW / 7.5hp
• Rated voltage: 380V to 480V AC
• Weight: 2.9kg

Product Highlights

The ATV340 is suitable for various applications such as packaging, material handling, and hoisting, ensuring compliance with international standards like IEC/EN 61800-5-1 and IEC/EN 61800-3.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: United States

Technical Specifications

• Catalog Number: ATV340U55N4E
• Net Weight: 2.9 kg
• Dimensions: 110 mm wide, 270 mm high, 234 mm deep
• Mounting Type: Cabinet Mount
• Certification: CE, UL, CSA, T.V.
• Operating Temperature: Up to 60°C
• Housing Material: Plastic
• Number of Phases: 3 Phase
