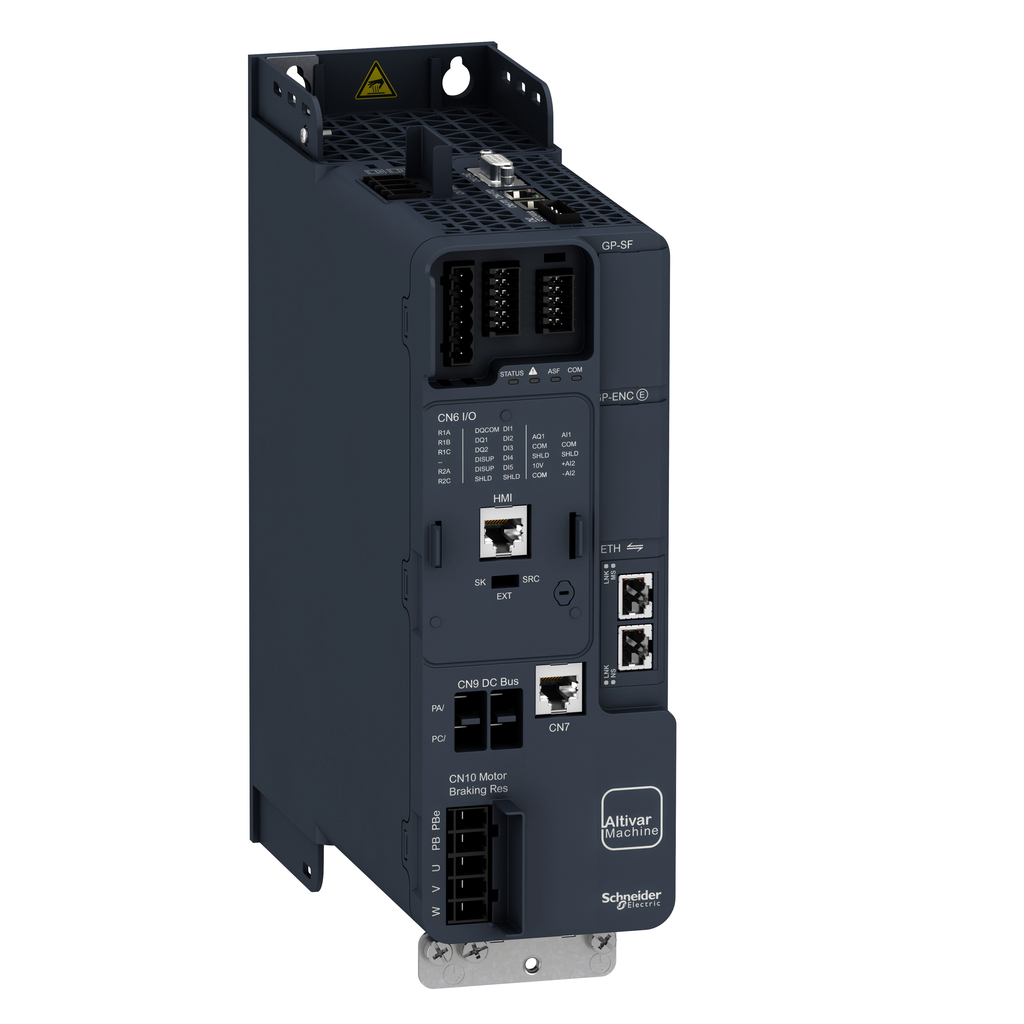

Schneider Electric ATV340U07N4E variable speed drive 0.75kW 400V 3 phases Ethernet

Product Description

Schneider Electric ATV340U07N4E is a variable speed drive designed for 3-phase motors. The drive supports open and closed loop control and operates efficiently at a power rating of up to 0.75 kilowatt or 1 horsepower. It is suitable for voltages ranging from 380 to 480 volts AC. The ATV340 is built to withstand harsh environments, offering resistance to vibration, shock, and non-conductive dust. It can function in high temperatures up to sixty degrees Celsius.

• Integrates Modbus and Ethernet serial communication protocols.
• Features multi-protocol Ethernet, including Ethernet/IP and Modbus TCP interfaces.
• Designed for common applications like material handling and packaging.

Product Highlights

The ATV340 drive is reliable for various industrial applications and offers expansive connectivity options for seamless integration.

Product Information

Standard Information

• Catalog Number: ATV340U07N4E
• Manufacturer: Schneider Electric

Technical Specifications

• Operating Power: 0.75 kW
• Voltage: 380-480 V AC
• Weight: 1.7 kg
• Dimensions: 85 mm (W) x 270 mm (H) x 232.5 mm (D)
• Certification: CE, UL, CSA
• Country of Origin: Indonesia
• Temperature Range: -40 to 70 degrees C
