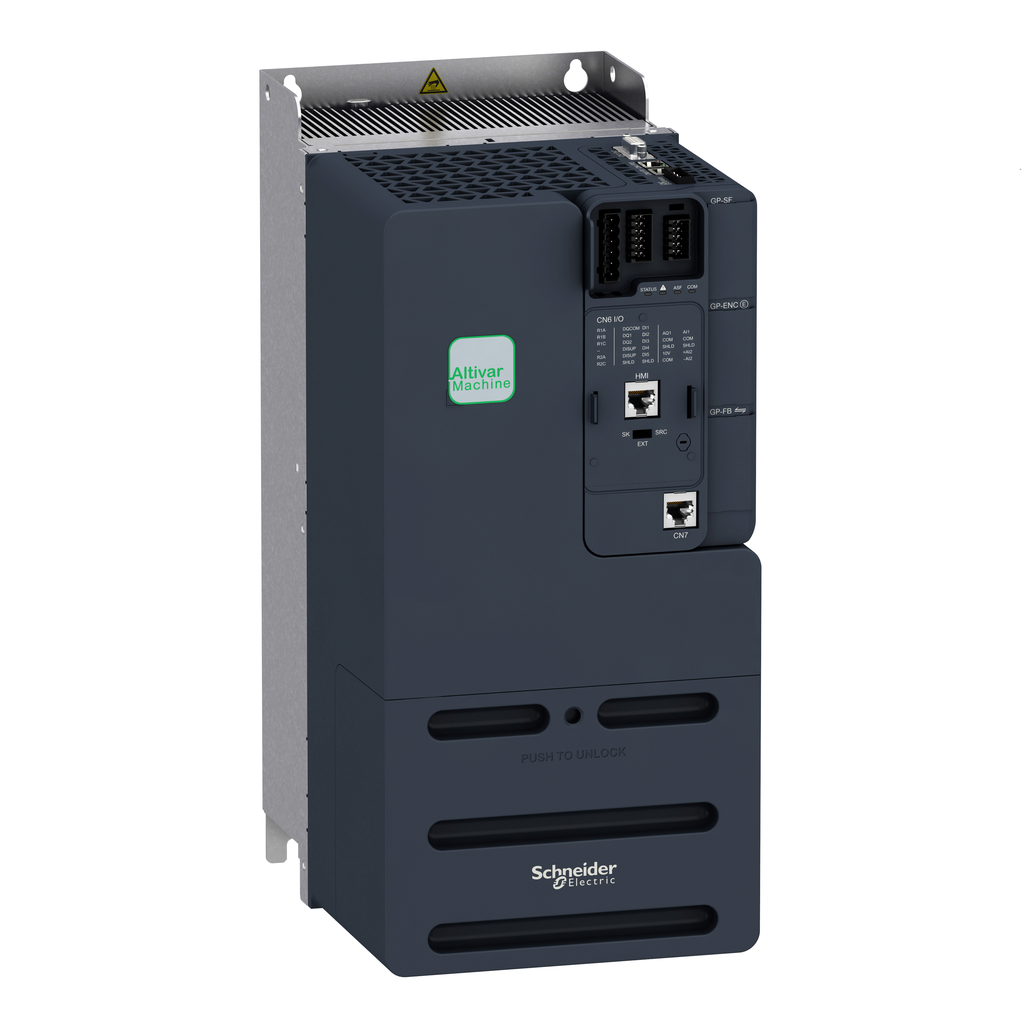

Schneider Electric ATV340D15N4 SQD variable speed drive 15kW 400V 3 phases

Product Description

The Schneider Electric ATV340D15N4 is a variable speed drive designed for powering 3-phase synchronous and asynchronous motors. This model operates efficiently in both open and closed loop control systems. It supports a rated power of up to fifteen kilowatts and operates between three hundred eighty volts to four hundred eighty volts AC. The ATV340 series is robustly built to withstand harsh environments, offering resistance to vibration, shock, and non-conductive dust, with temperature tolerance reaching up to sixty degrees Celsius.

• Integrates Modbus serial communication protocols.
• Suitable for applications in packaging, material handling, and hoisting.
• Complies with IEC standards and is CE, UL, and CSA certified.

Product Highlights

This drive includes features tailored to common industrial applications while being adaptable to various configurations through Schneider Electric's EcoStruxure platform.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: ATV340D15N4

Technical Specifications

• Weight: 20.94 lb
• Dimensions: 180 mm width, 385 mm height, 249 mm depth
• Voltage Rating: 380V to 480V AC
• Power Output: Up to 15 kW / 20 hp
• Certification: CE, UL, CSA, TV
• Mounting Type: Vertical Mount
• Number of Phases: 3 Phase
• Country of Origin: United States
