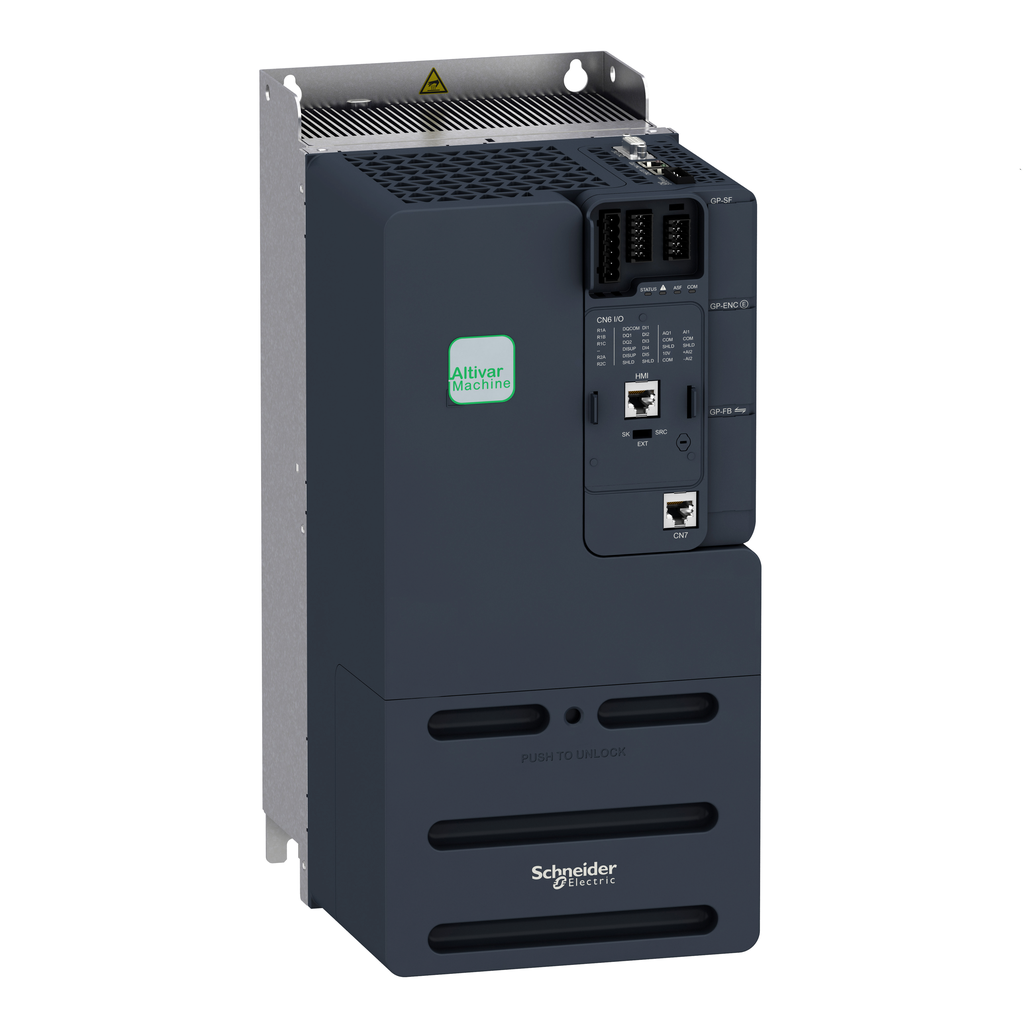

Schneider Electric ATV340D11N4 variable speed drive 11kW 3 phase

Product Description

This Schneider Electric ATV340D11N4 variable speed drive powers three-phase synchronous and asynchronous motors in both open and closed loop control systems. This drive operates at a maximum power of eleven kilowatts and is suitable for voltage ratings between three hundred eighty to four hundred eighty volts alternating current. The ATV340 is robustly designed to operate in harsh environments, effectively resisting vibration, shock, and non-conductive dust, with temperature resistance up to sixty degrees Celsius.

Key features include:

• Integrates Modbus serial communication protocols.
• Heavy-duty construction for rigorous applications like material handling and packaging.
• Conforms to multiple international standards, including IEC/EN 61800-5-1 and UL certifications.

Product Highlights

The ATV340D11N4 is built for efficiency and resilience, supporting applications such as hoisting and material working. It is designed for vertical installation with a mounting tolerance of plus or minus ten degrees and utilizes four fixing holes for secure placement.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• MPN: ATV340D11N4
• Catalog Number: ATV340D11N4
• Operating Voltage: 380V to 480V AC
• Rated Power: 11kW / 15hp
• Weight: 9.5 kg
• Dimensions: 180 mm wide, 385 mm high, 249 mm deep
• Number of Phases: 3 Phase
• Certification: CE, UL, CSA
• Country of Origin: Mexico
