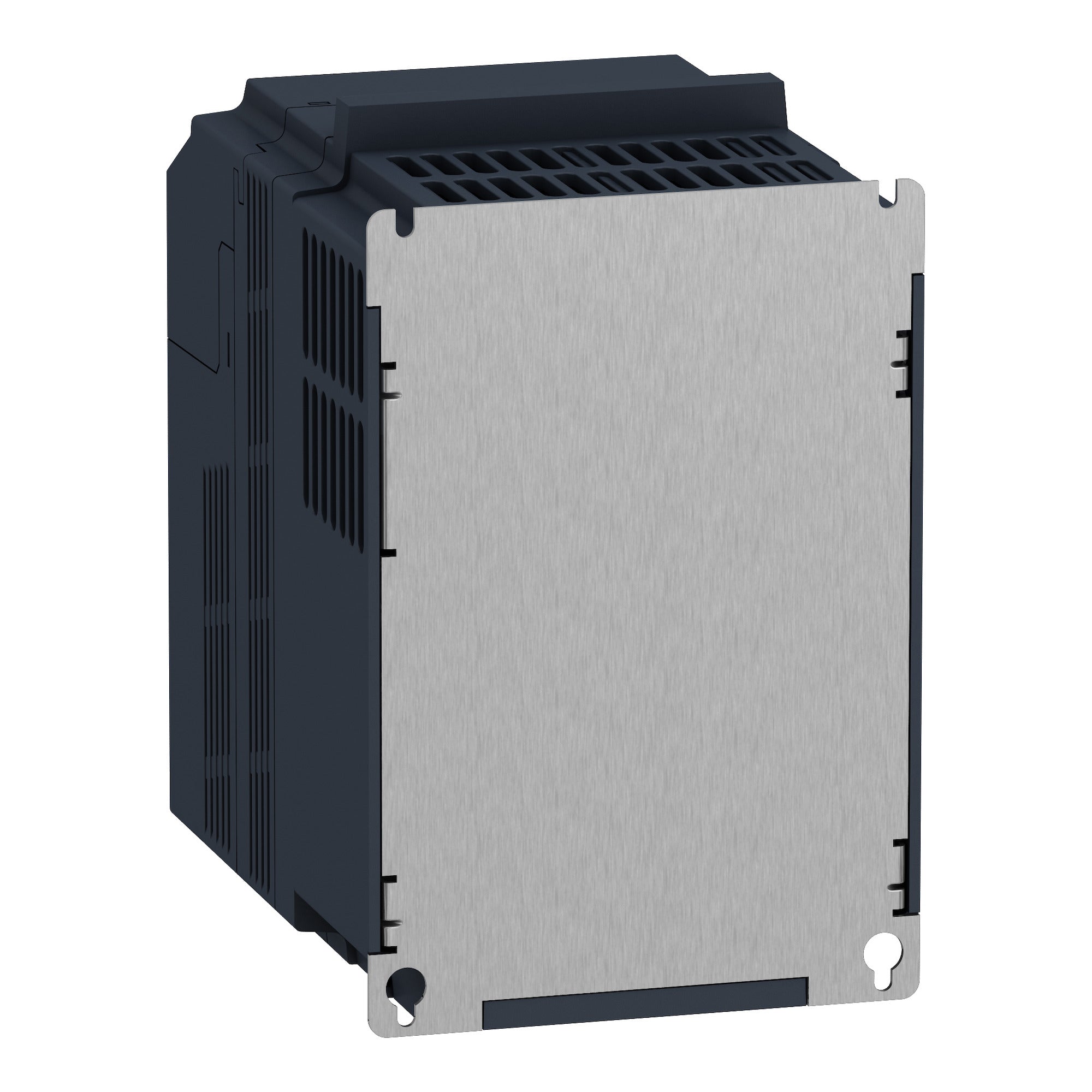

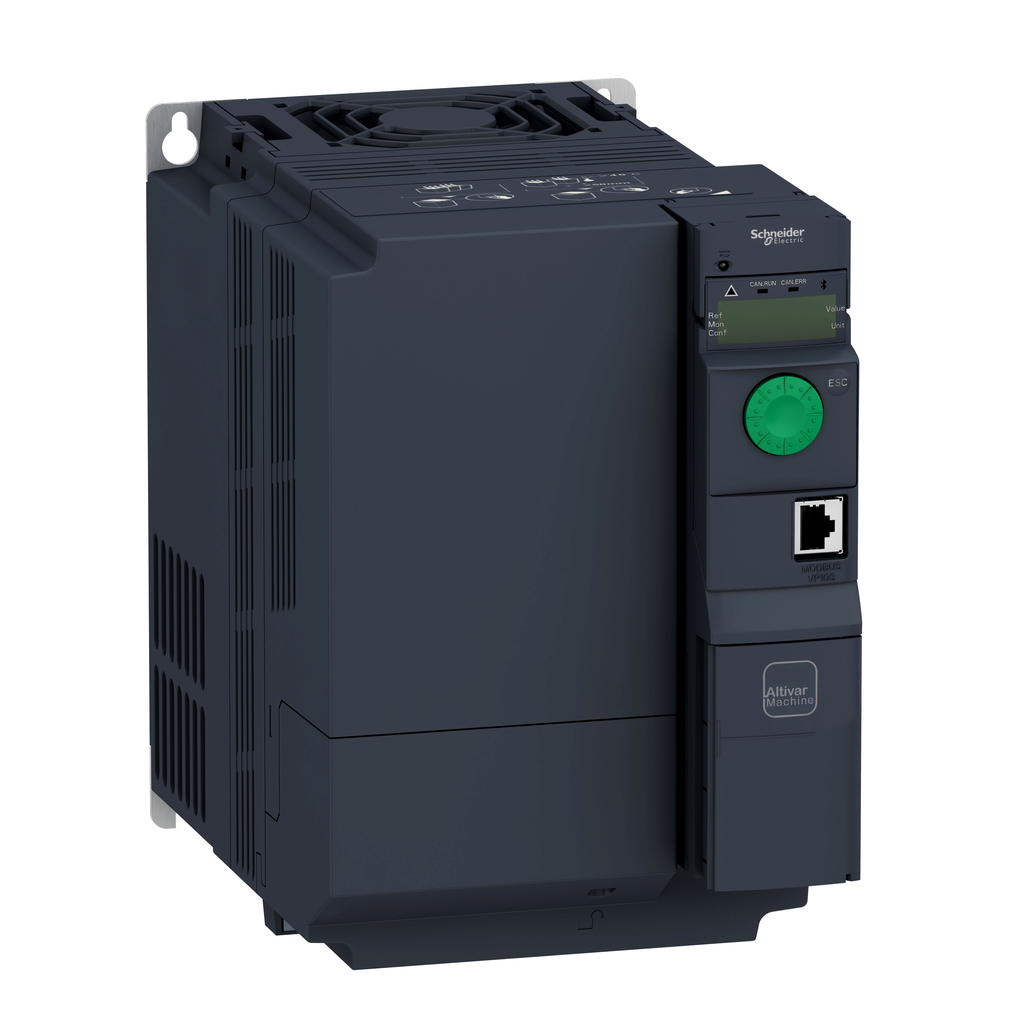

Schneider Electric ATV320U75N4B variable speed drive 7.5kW (book)

Product Description

Schneider Electric ATV320U75N4B is a variable speed drive designed to manage 3-phase synchronous and asynchronous motors. This drive can handle a power rating of up to 7.5 kilowatts, or ten horsepower, and operates within a voltage range of three hundred eighty to five hundred volts AC. The compact book form factor simplifies installation into automation cabinets, providing a space-efficient solution.

• Rated power up to 7.5 kW / 10 hp
• Designed for 3-phase motors
• Operating voltage from 380V to 500V AC

Product Highlights

ATV320U75N4B is optimized for a range of applications, including material handling and packaging. It offers high performance with flux vector control for precise torque and speed management, even at low speeds.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ATV320U75N4B
• Weight: 9.70 lb
• Dimensions: 12.4 in x 5.9 in x 12.1 in
• Number of Phases: 3 Phase
• Country of Origin: Indonesia
• Certifications: CE, UL, CSA, NOM, EAC, RCM
• GTIN: 03606480931307
• Storage Temperature: -25 to 70 degrees C
