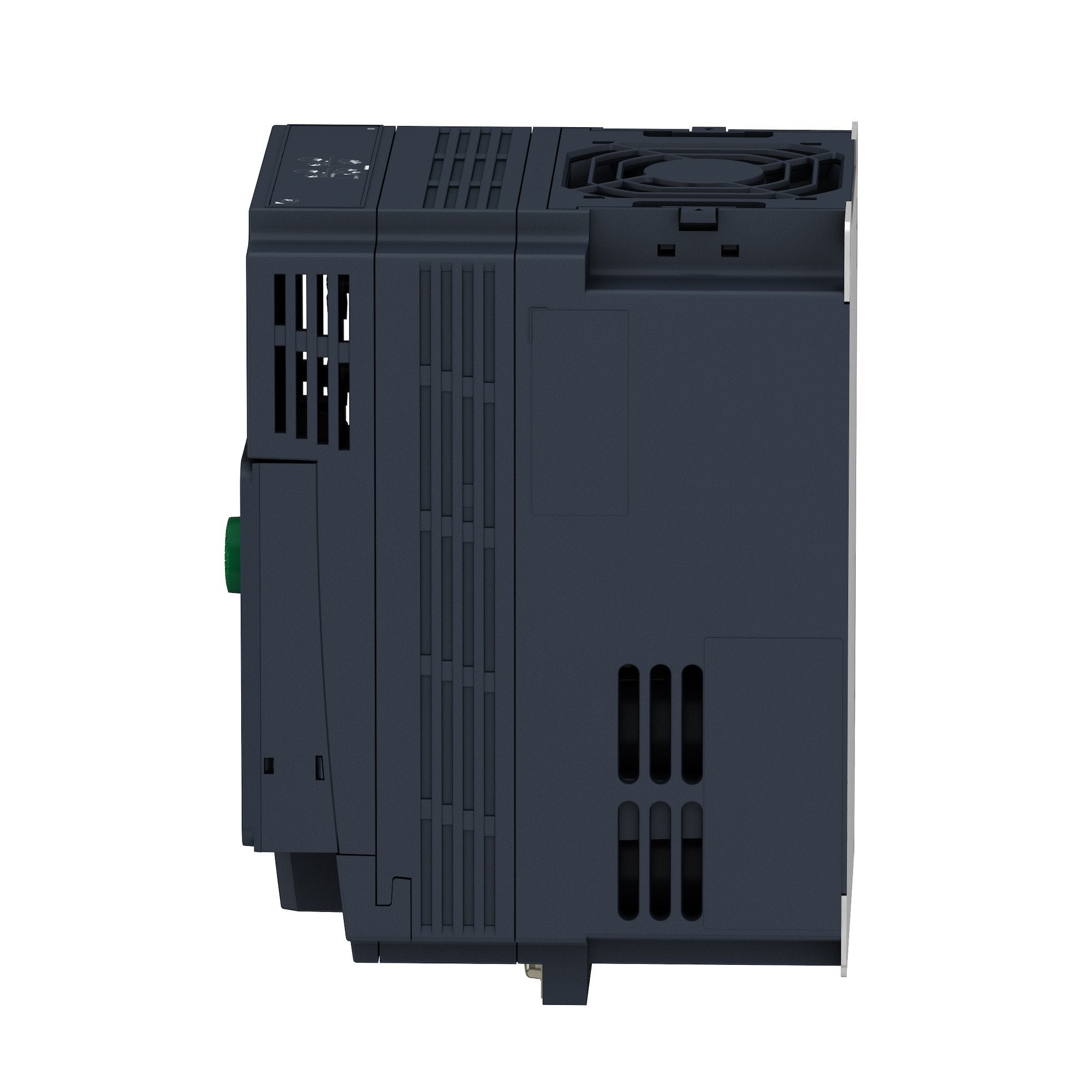

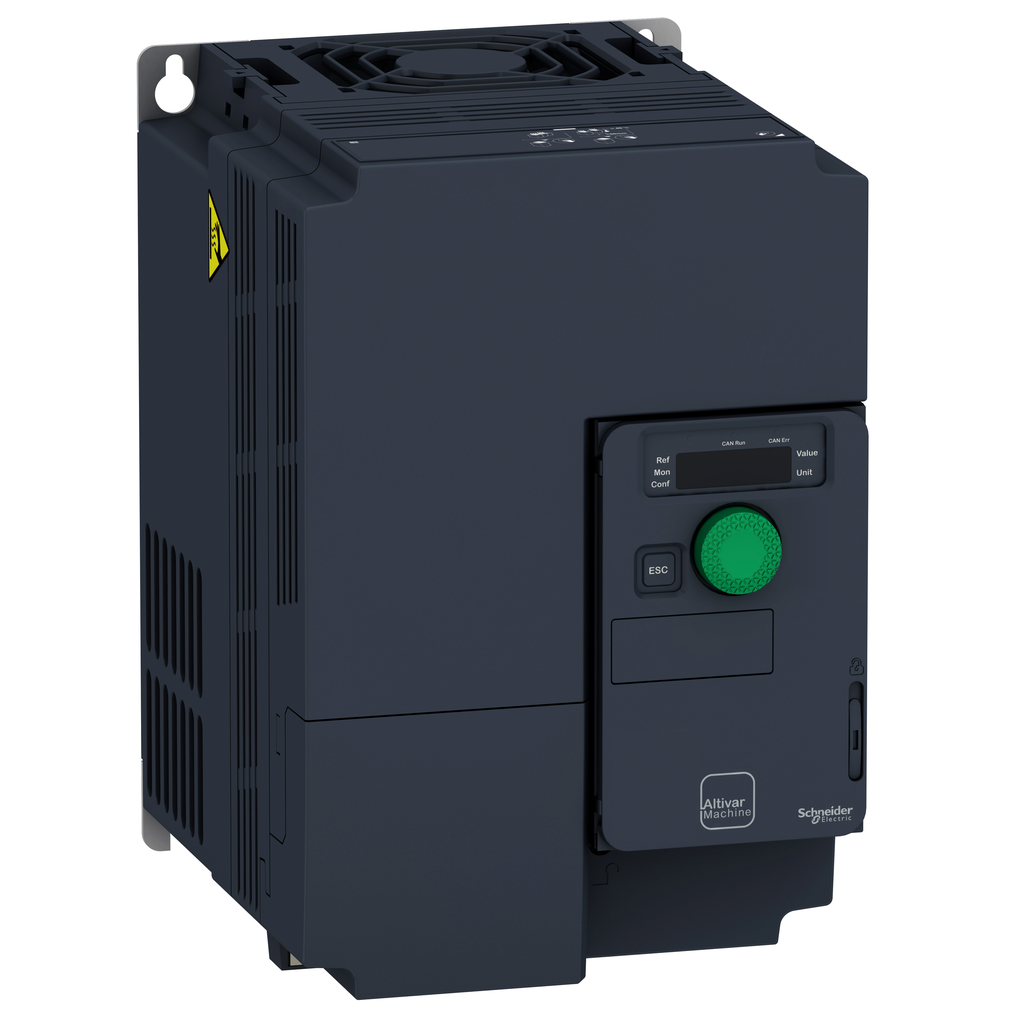

Schneider Electric ATV320U75M3C variable speed dri 7.5kW (Compact)

Product Description

The Schneider Electric ATV320U75M3C is a variable speed drive designed for Original Equipment Manufacturers (OEMs). It operates with a rated power of up to seven point five kilowatts and supports voltages from two hundred to two hundred forty volts AC. The compact design allows for vertical stacking, making it suitable for machine frames. This drive maintains operational stability in environments with high temperatures, up to sixty degrees Celsius, thanks to its robust IEC 60721-3-3 class 3C3 coated printed circuit boards.

• Rated power of 7.5 kW / 10 hp
• Voltage range of 200V to 240V AC
• High dynamic performance with flux vector control

Product Highlights

The ATV320U75M3C drive includes functions for precise control at low speeds, energy-saving features for synchronous motors, and safety configurations using SoMove software.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: ATV320U75M3C

Technical Specifications

• Dimensions: 150 mm width, 232 mm height, 178 mm depth
• Net Weight: 3.6 kg
• Mounting Type: Wall-Mounted
• Certification: ATEX, CE, EAC, GOST, KC, NOM, RCM
• Applications: Complex machines
• Housing Material: Plastic
• Phases: 3 Phase
• Storage Temperature: -25 to 70 degrees Celsius
