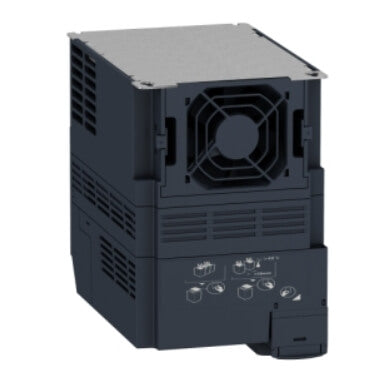

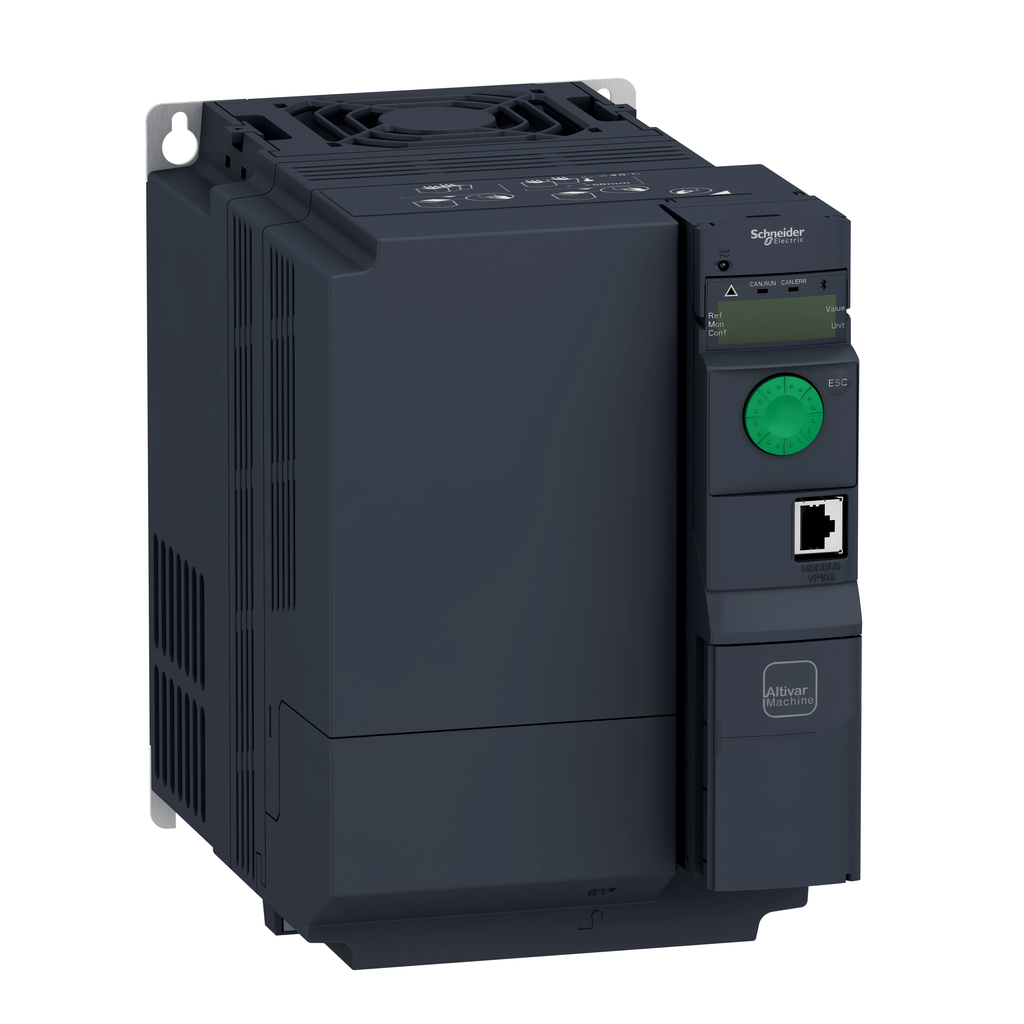

Schneider Electric ATV320U55N4B variable speed drive 5.5kW 380 to 500V

Product Description

This Schneider Electric ATV320U55N4B variable speed drive is designed to control 3-phase synchronous and asynchronous motors. The book form factor enables a straightforward installation within automation cabinets. It operates at a maximum rated power of 5.5kW and a voltage range of 380V to 500V AC. The unit's robust design features IEC 60721-3-3 class 3C3 coated printed circuit boards, ensuring reliability in harsh conditions with ambient temperatures up to sixty degrees Celsius without additional cooling.

• Rated power of 5.5kW / 7.5hp
• Voltage range from 380V to 500V AC
• Integrated safety functions for compliance with safety standards

Product Highlights

This drive includes functionalities that provide precision in torque and speed, high dynamic response using flux vector control, and energy efficiency for open-loop synchronous motors. It is suitable for various applications including packaging, material handling, and mechanical actuators.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ATV320U55N4B
• GTIN: 03606480931291
• Number of Phases: 3 Phase
• Weight: 4.4 kg
• Dimensions: 9.13 in (Length) x 5.91 in (Height) x 12.13 in (Depth)
• Certifications: CE, UL, CSA, NOM, EAC, RCM
• Country of Origin: Indonesia
• Made in USA: Yes
