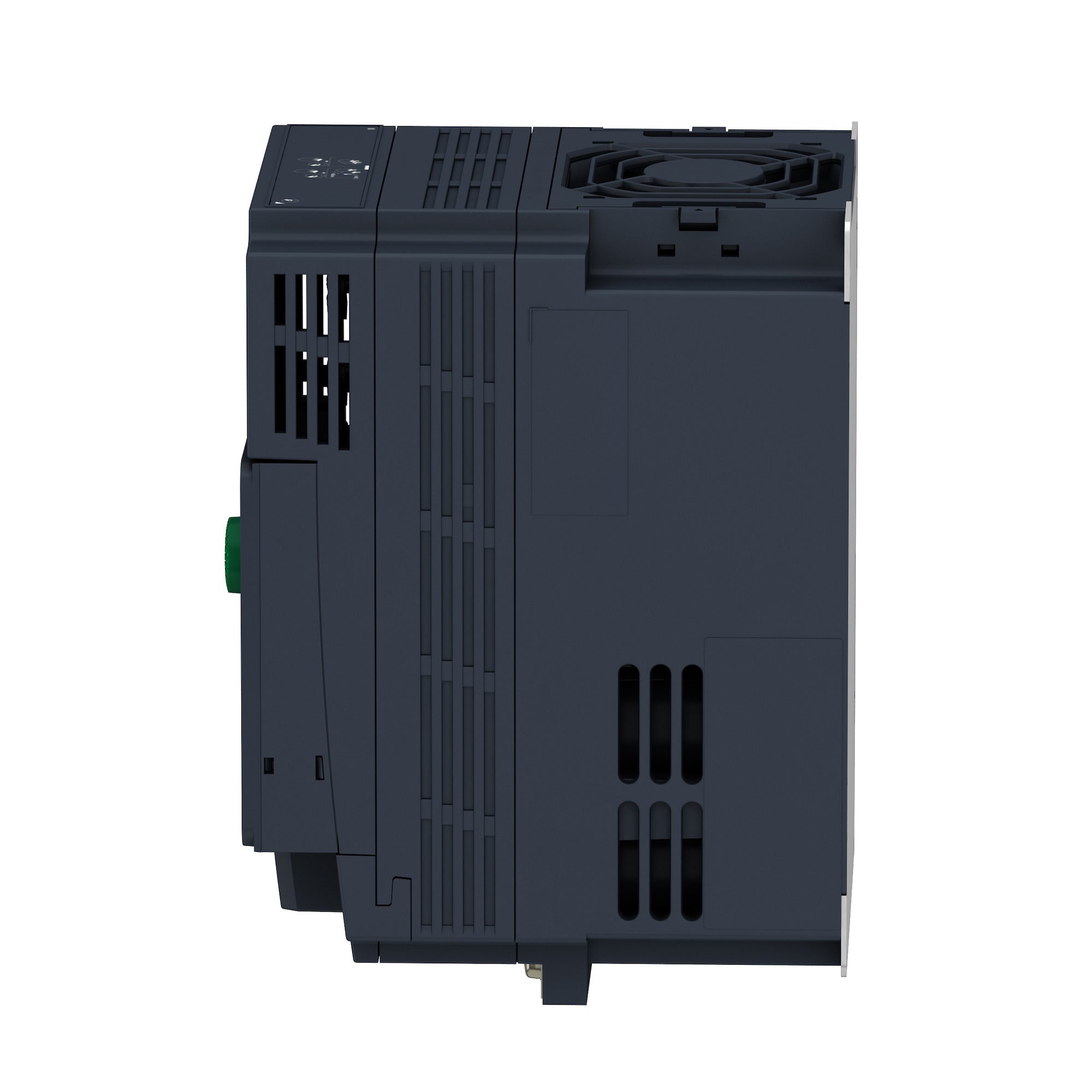

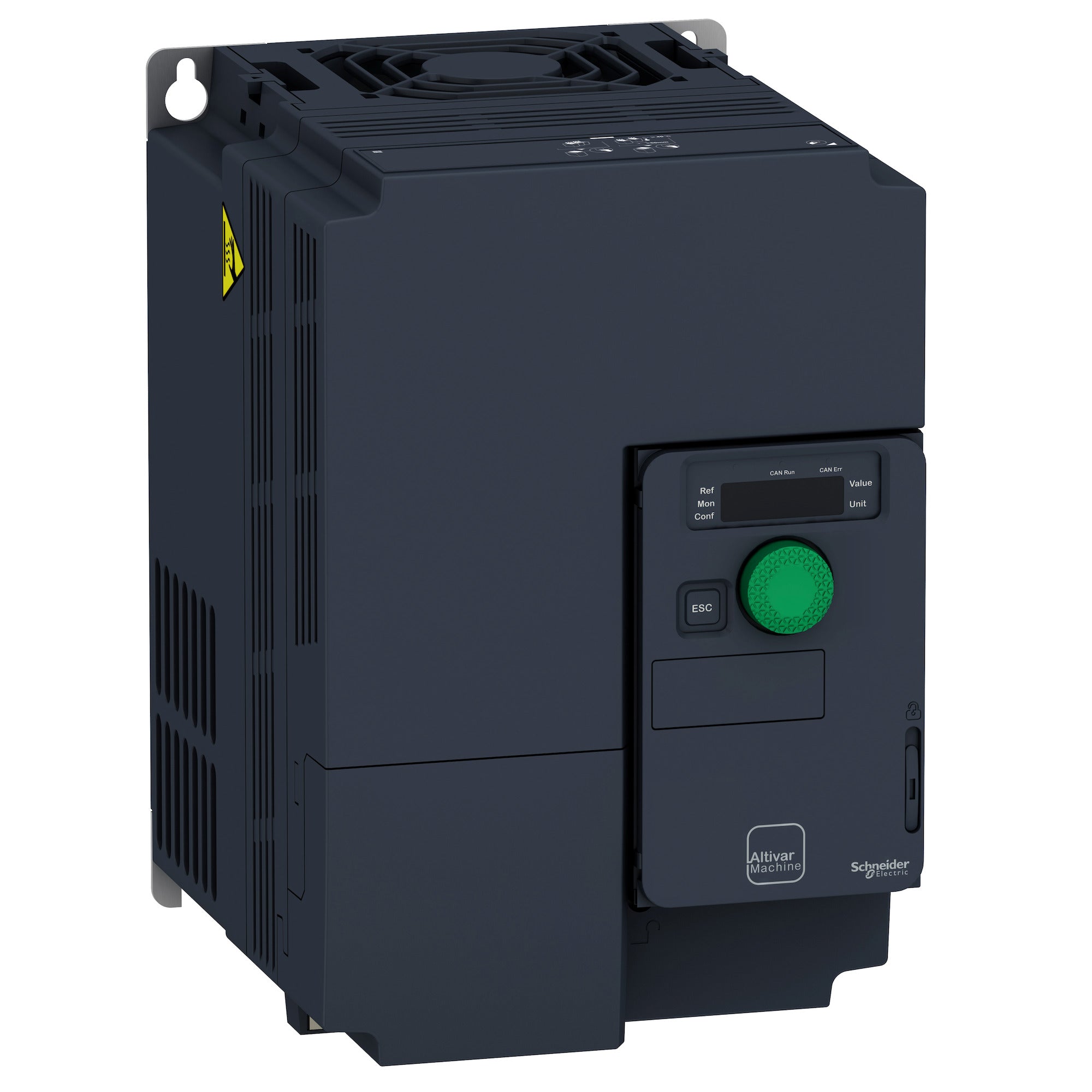

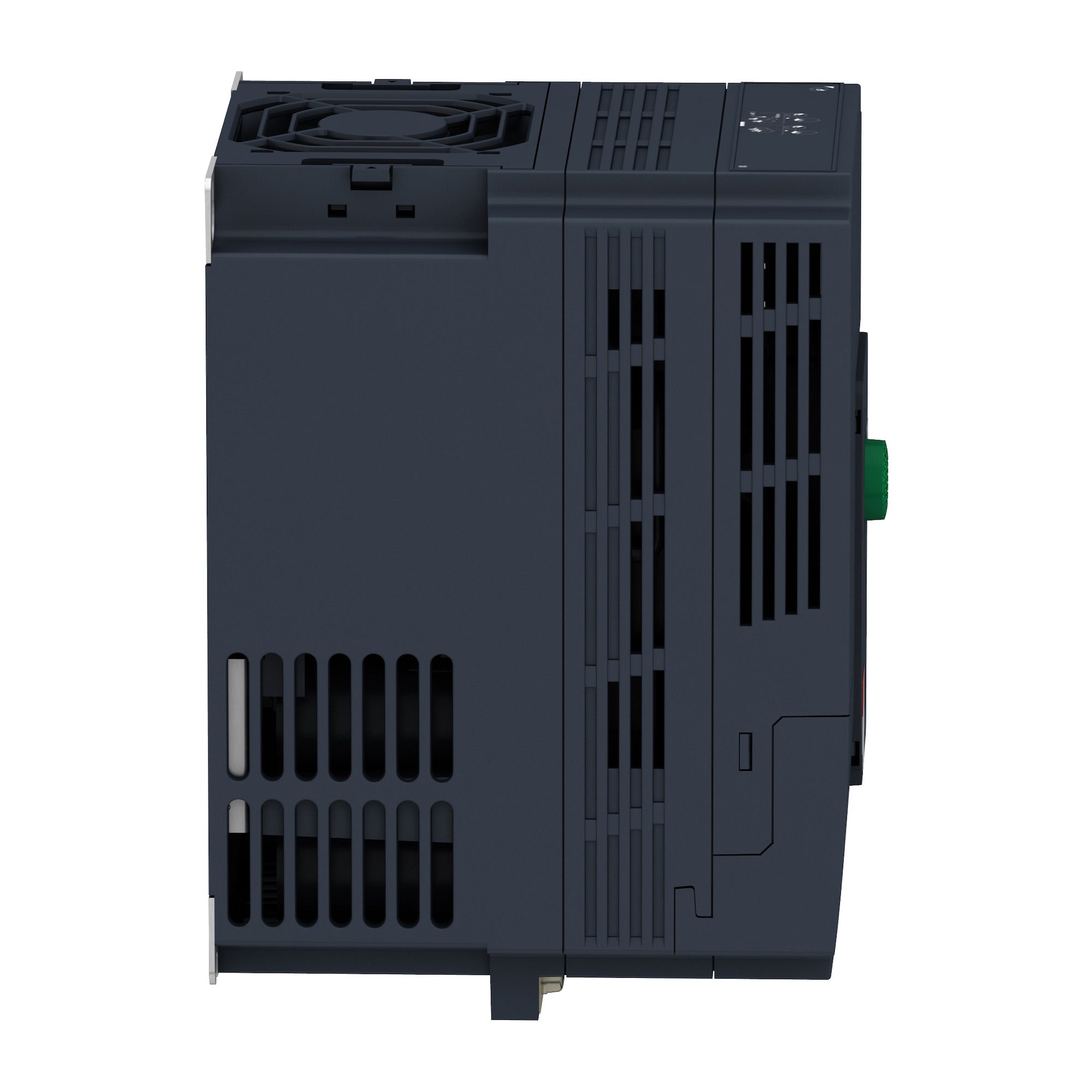

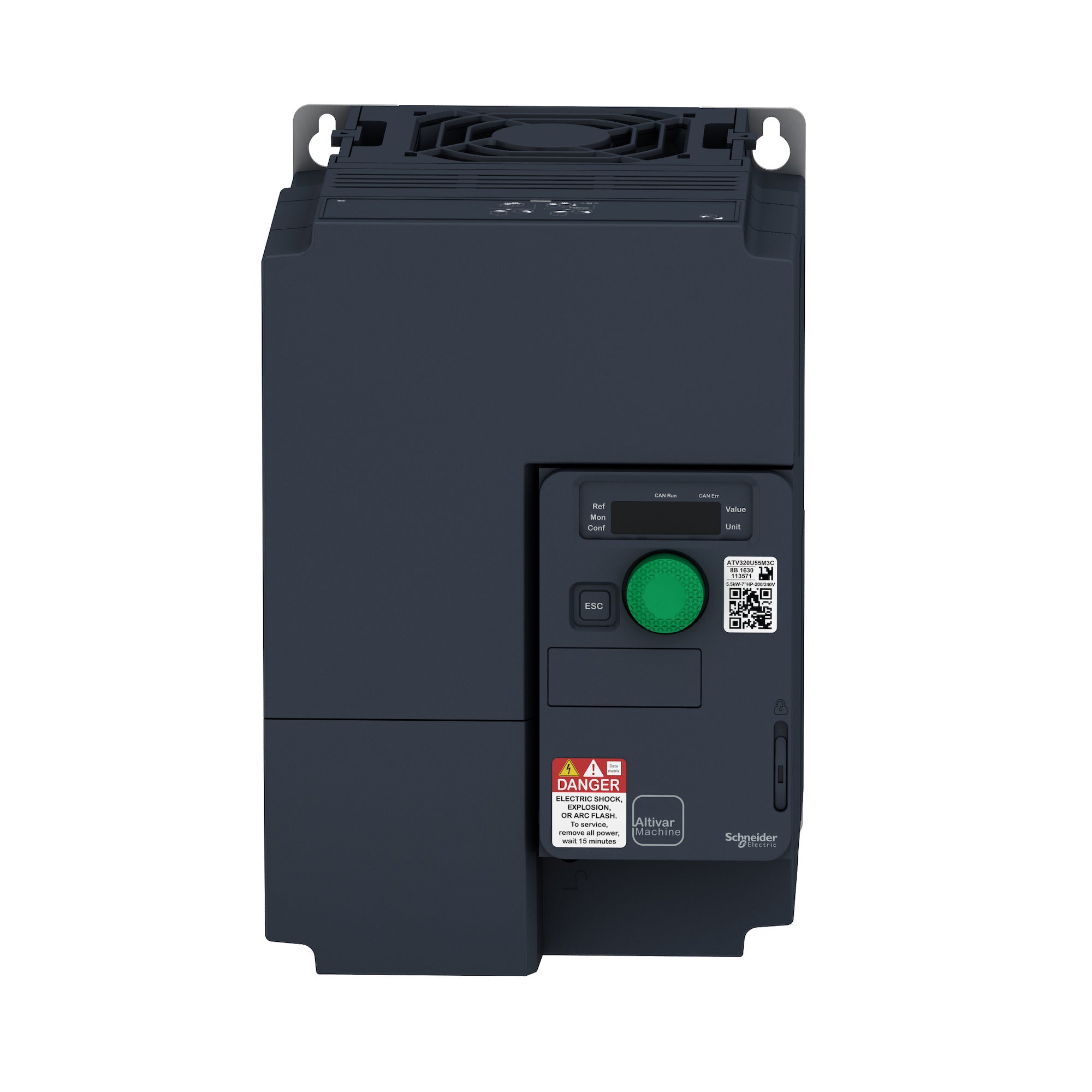

Schneider Electric ATV320U55M3C SQD Variable Speed Drive 5.5kW 200 to 240V AC

Product Description

Schneider Electric ATV320U55M3C is a variable speed drive designed for Original Equipment Manufacturers. This drive operates at a rated power of up to 5.5 kilowatts or 7.5 horsepower and supports voltage ranges from 200V to 240V AC. Its compact form allows for easy vertical installation within machine frames, and it is built to handle extreme conditions, operating at ambient temperatures up to 60C without needing additional cooling.

• Robust design with protected circuit boards for harsh environments
• Includes functions for torque, speed accuracy, and high dynamic performance
• Compatible with Schneider Electric’s EcoStruxure Machine for configuration and diagnostics

Product Highlights

This drive is ideal for applications in packaging, material handling, mechanical actuators, and textile machinery. It meets international standards including IEC, UL, and TUV.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Series: ATV320

Technical Specifications

• Power Rating: 5.5 kW / 7.5 hp
• Voltage Range: 200V to 240V AC
• Weight: 3.5 kg (7.72 lb)
• Dimensions: 150 mm width, 232 mm height, 178 mm depth
• Number of Phases: 3 Phase
• Storage Temperature: -25 to 70 degrees C
• Mounting Type: Wall-Mounted
• Certifications: ATEX, CE, EAC, GOST, KC, NOM, RCM
