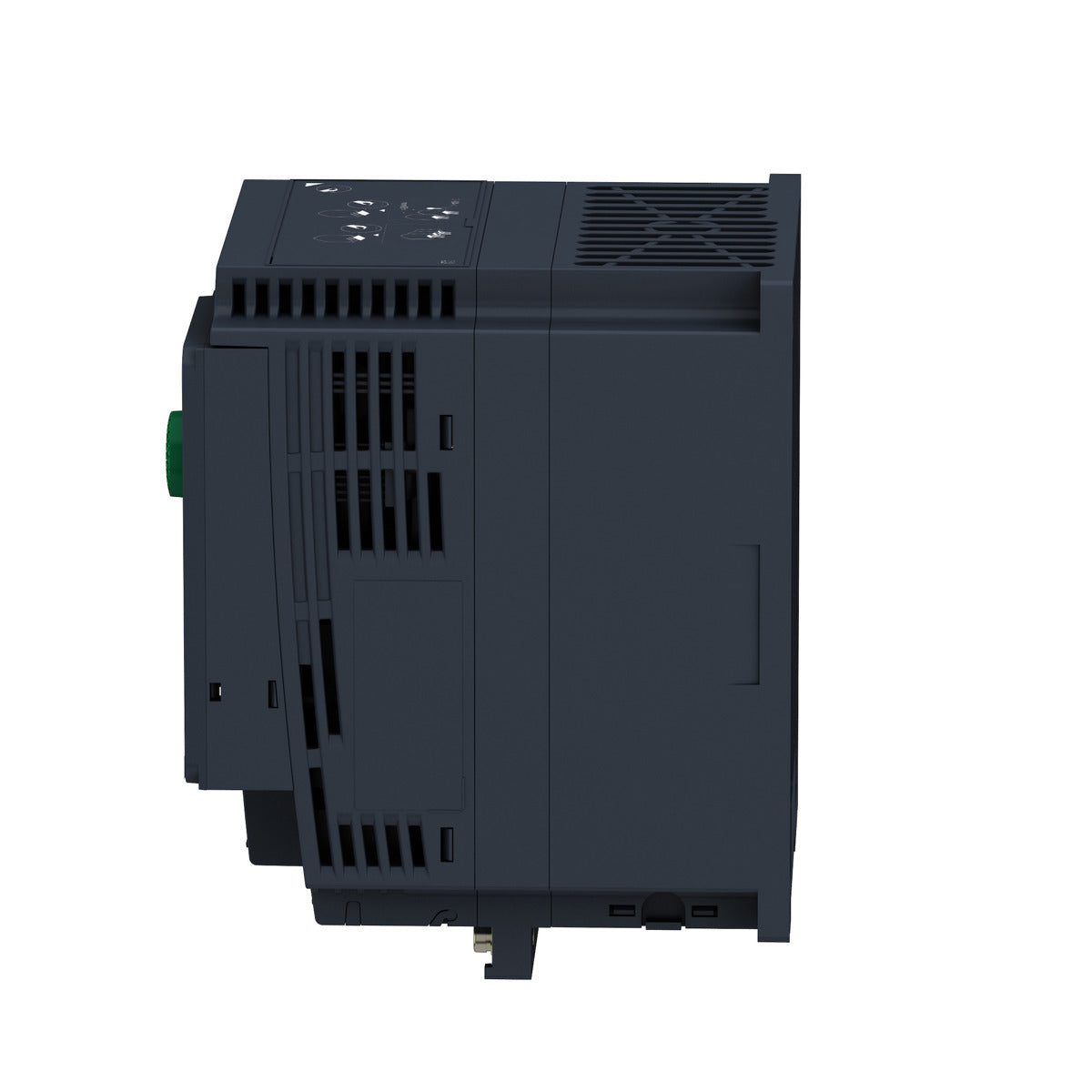

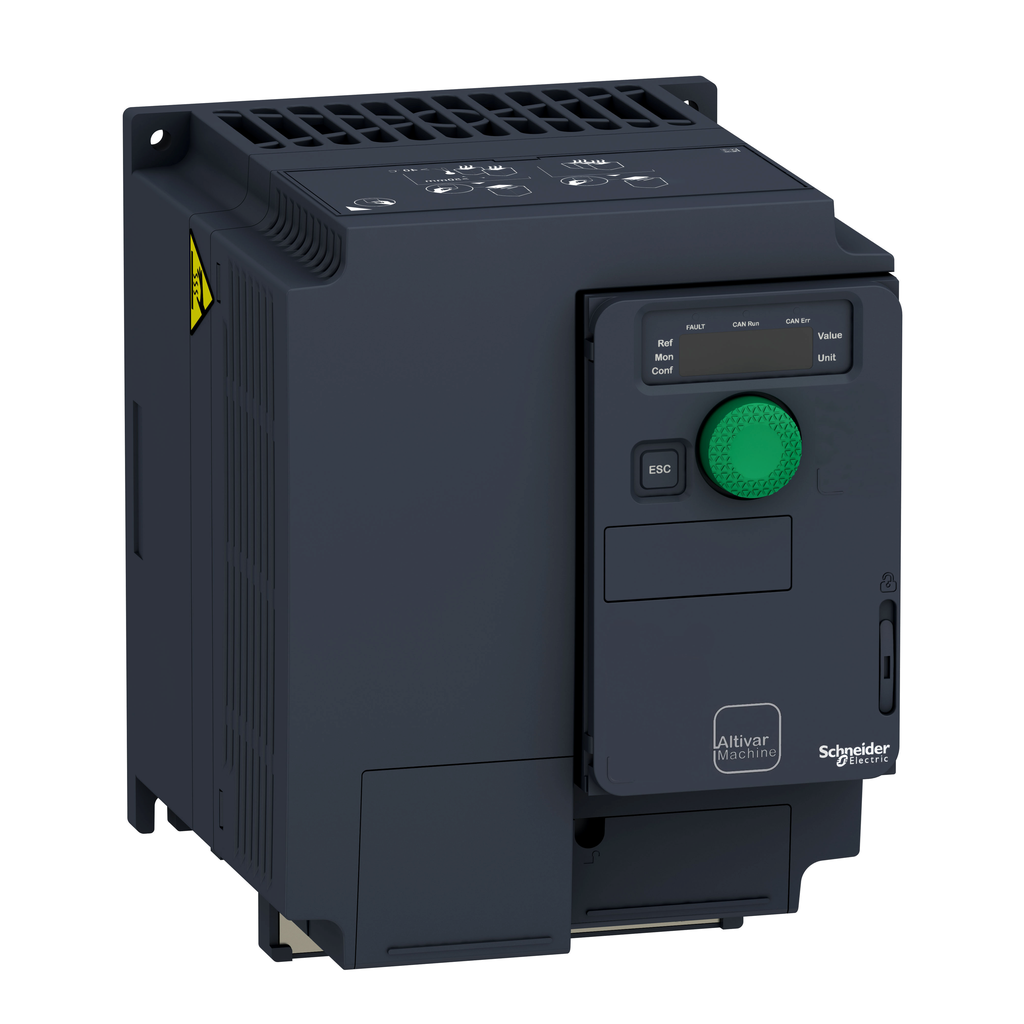

Schneider Electric ATV320U40N4C Variable Speed Drive, Altivar 320, 4 kW, 380 to 500V, 3-Phase, Compact

Product Description

The Schneider Electric ATV320U40N4C Variable Speed Drive is designed for controlling 3-phase synchronous and asynchronous motors. It operates at a rated power of four kilowatts and a voltage range of three hundred eighty to five hundred volts AC. Its compact form allows for vertical stacking in machine frames, making it suitable for various installation layouts.

• Operates at a rated power of four kilowatts.
• Compatible with 3-phase motors.
• Built to function in harsh environments up to sixty degrees Celsius.

Product Highlights

Ideal for OEM applications, the ATV320U40N4C supports various functions like torque control, speed accuracy, and quick response times. It is suitable for uses in packaging, material handling, textile production, and more.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: ATV320U40N4C

Technical Specifications

• Rated Power: 4 kW
• Voltage Range: 380V to 500V AC
• Current: 9.5 A
• Phase: 3
• Protection Class: IP20
• Weight: 4.85 lb (2.2 kg)
• Dimensions: 6.22 in (length) x 5.51 in (width) x 7.24 in (height)
• Mounting Type: Wall-mounted
• Certifications: CE, UL, CSA, EAC
