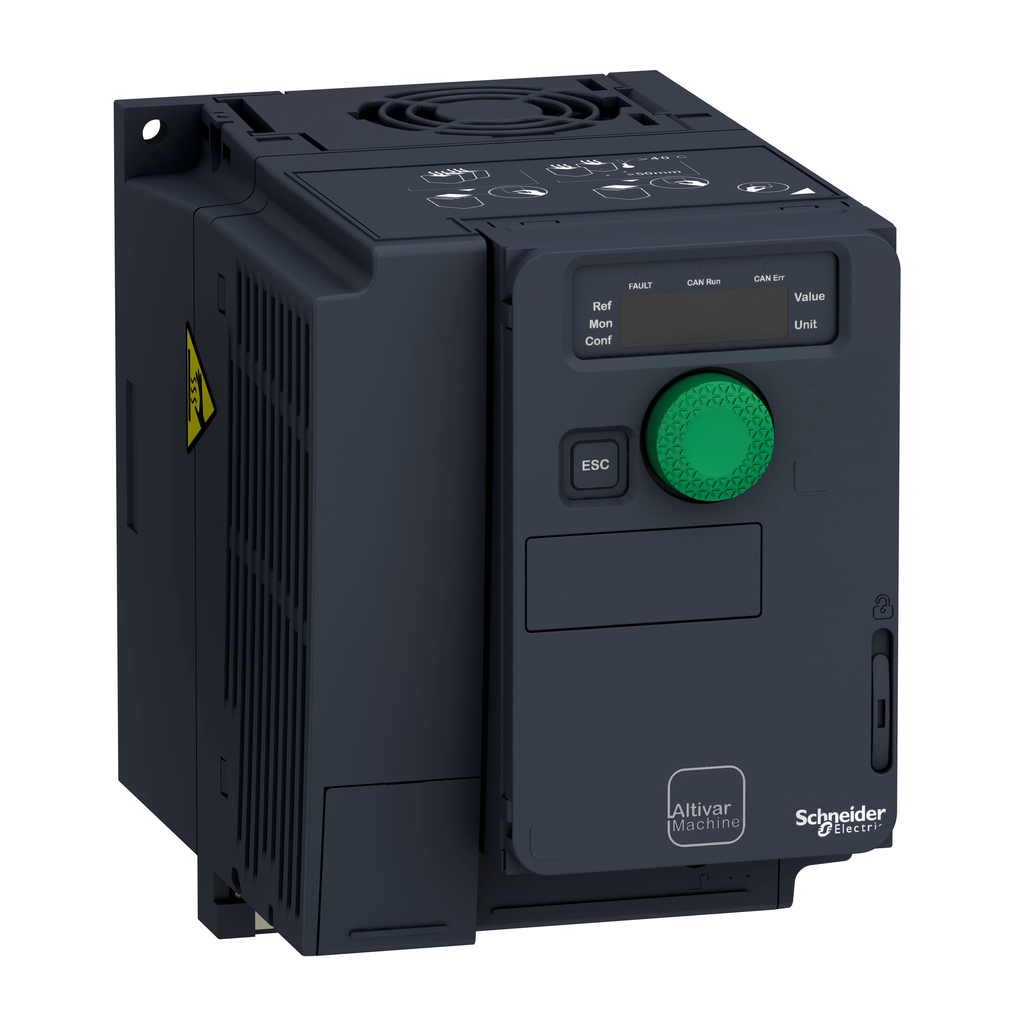

Schneider Electric ATV320U22M2C SQD variable speed dri 2.2kW (Compact)

Product Description

The Schneider Electric ATV320U22M2C is a variable speed drive designed for single-phase synchronous and asynchronous motors. It operates at a power rating of two point two kilowatts and a voltage range from two hundred to two hundred forty volts AC. This drive's compact size allows for vertical stacking in machine frames. It features a robust build, utilizing coated printed circuit boards that can operate at ambient temperatures up to sixty degrees Celsius without extra cooling.

• Rated power up to 2.2kW / 3hp
• Temperature capability of up to 60 degrees Celsius
• Configured safety functions via SoMove software

Product Highlights

The ATV320U22M2C offers high dynamic performance with flux vector control, torque, and speed accuracy at low speeds. This drive supports parallel connection for motors, aiding energy efficiency. It is well-suited for OEMs and various applications, including textile operations and material handling.

Product Information

Standard Information

• Catalog Number: ATV320U22M2C
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Variable speed drive
• Brand: Schneider Electric
• Width: One hundred five millimeters
• Height: One hundred forty-two millimeters
• Depth: One hundred fifty-eight millimeters
• Weight: 1.6 kilograms
• Mounting Type: Wall-Mounted
• Country of Origin: Indonesia
