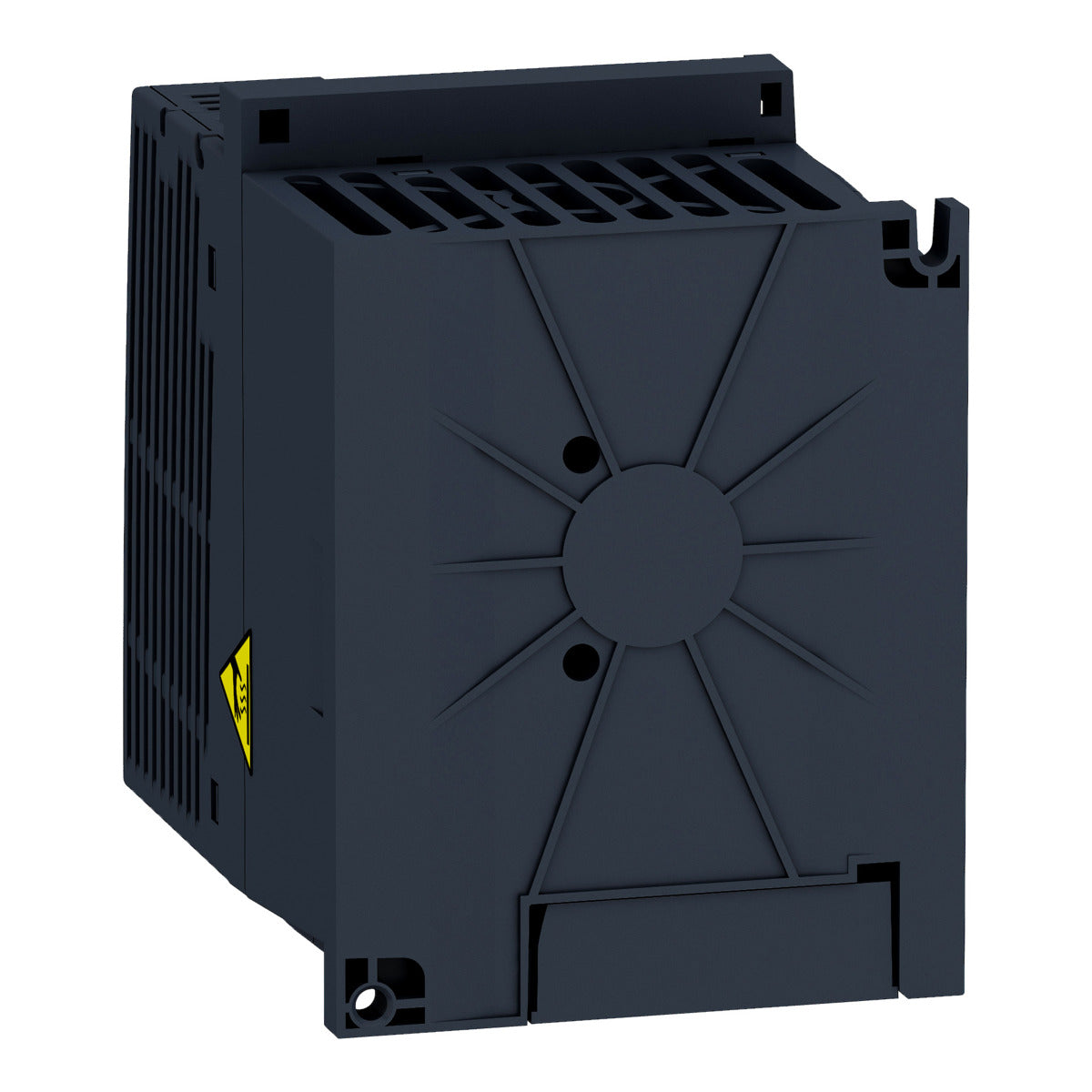

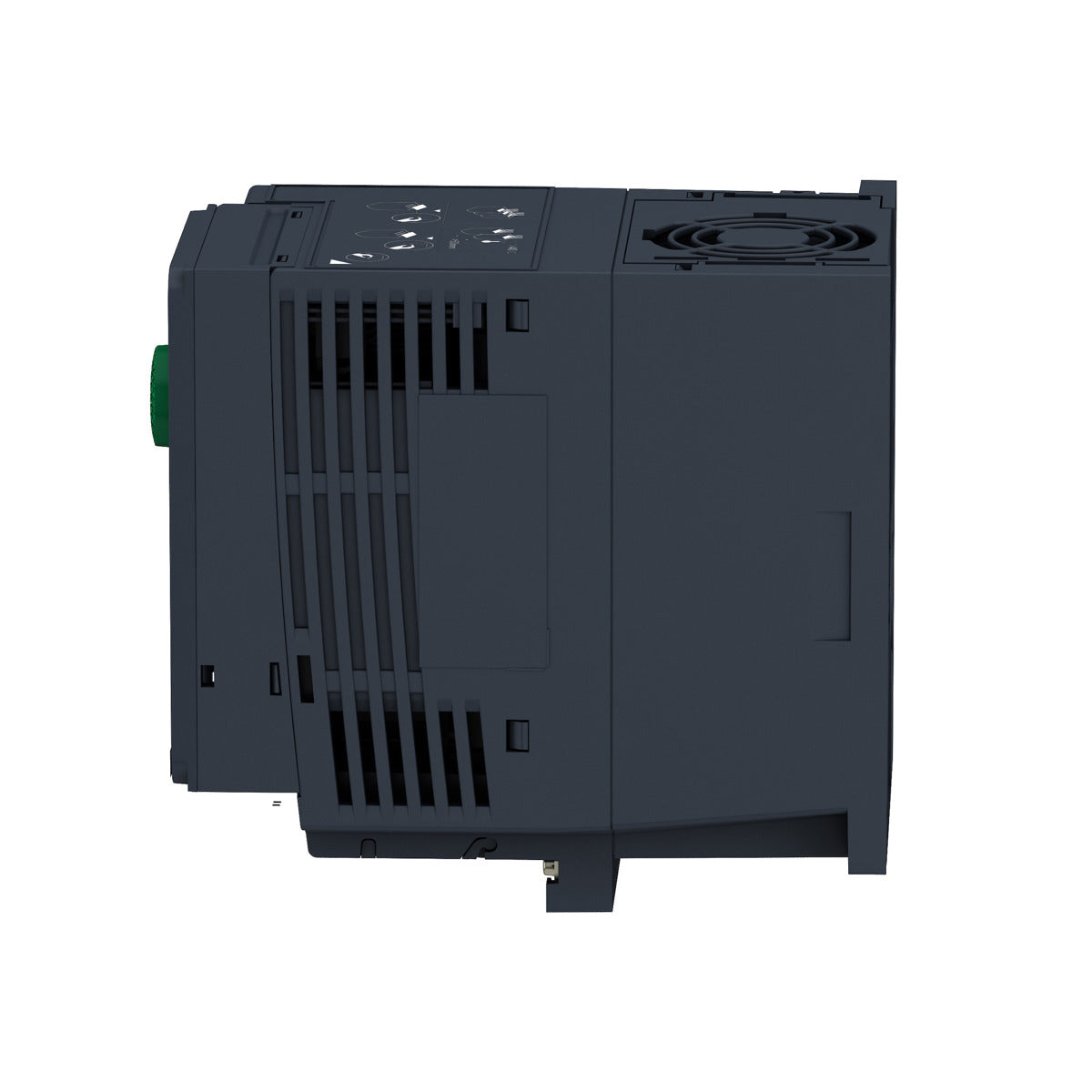

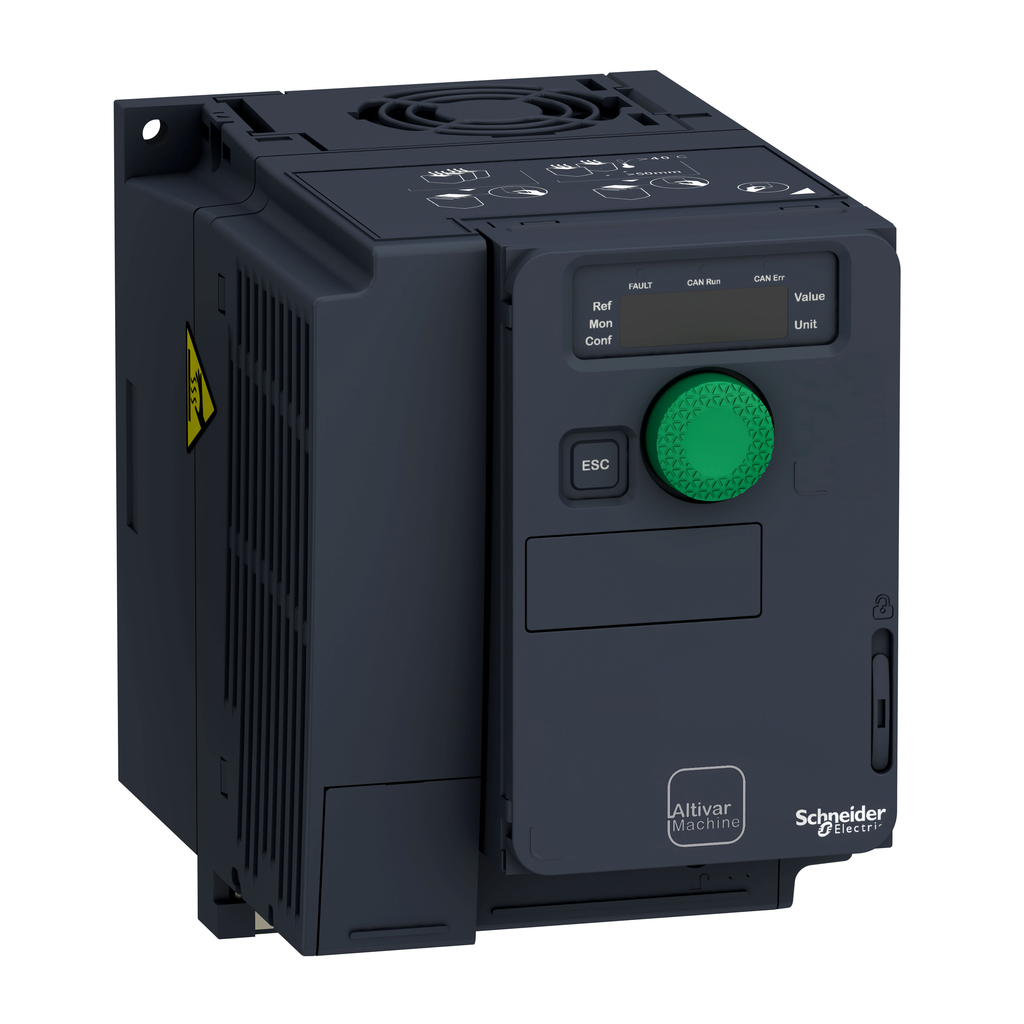

Schneider Electric ATV320U15N4C variable speed drive 1.5kW 380 to 500V 3 Phase

Product Description

The Schneider Electric ATV320U15N4C is a variable speed drive designed for powering three-phase synchronous and asynchronous motors. This model operates at a rated power of up to one point five kilowatts and supports voltage from three hundred eighty to five hundred volts AC. The compact design enables vertical stacking in machine frames, making it efficient for various installation scenarios.

• Robust design featuring IEC 60721-3-3 class 3C3 coated PCBs for enhanced durability in harsh environments.
• High dynamic performance with sensorless flux vector control, ideal for applications requiring precise speed and torque.
• Compliance with international standards such as IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and emissions.

Product Highlights

This drive is particularly suitable for OEMs, supporting diverse applications in packaging, material handling, and textile processes. The Altivar 320 includes built-in safety functions configurable via SoMove software, enhancing operational security and reliability.

Product Information

Standard Information

• Catalog Number: ATV320U15N4C
• Brand: Schneider Electric

Technical Specifications

• Type: Variable speed drive
• Weight: 2.87 lb
• Dimensions: 6.22 in depth, 4.13 in height, 4.13 in width
• Power Rating: 1.5 kW
• Input Voltage: 380V to 500V AC
• Phases: 3 Phase
• Housing Material: Plastic
• Country of Origin: Indonesia
