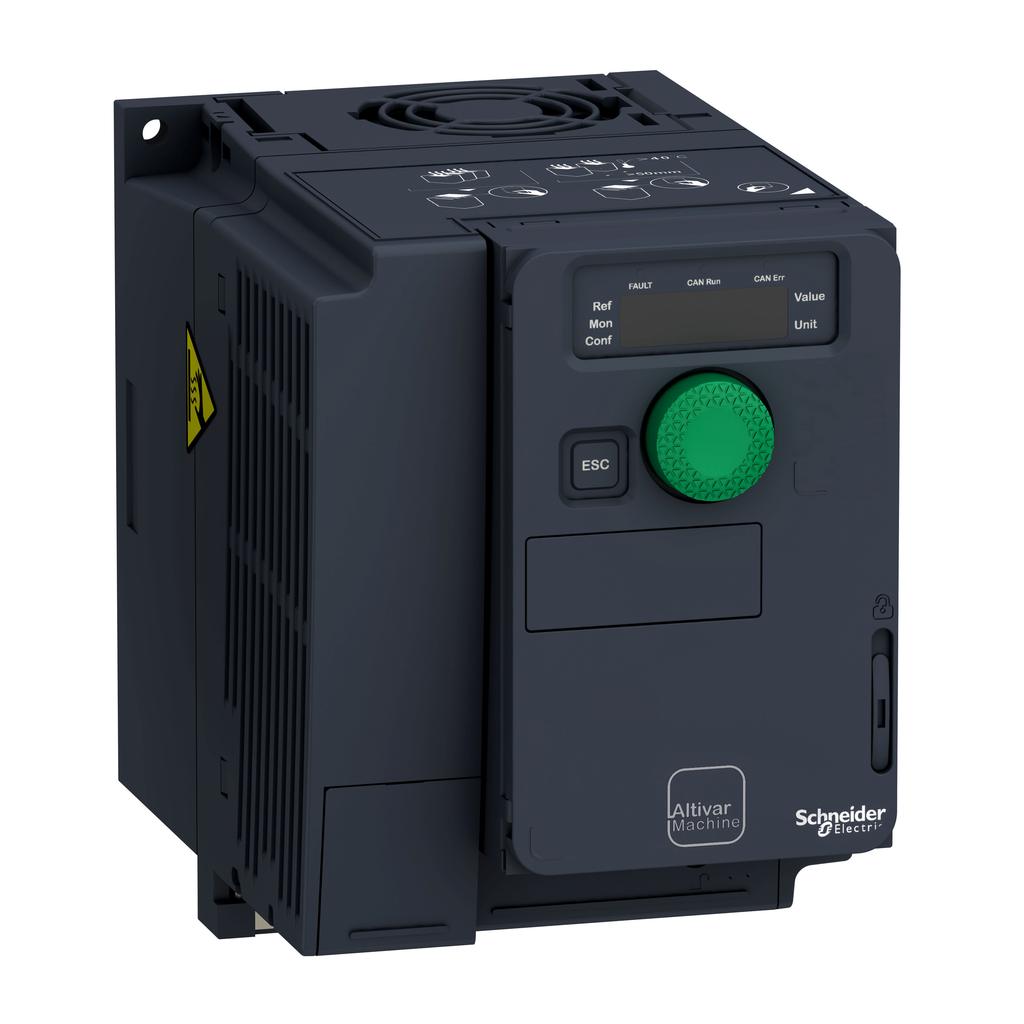

Schneider Electric ATV320U15M2C variable speed dri 1.5kW 200 to 240V AC

Product Description

The Schneider Electric ATV320U15M2C is a variable speed drive designed for single-phase synchronous and asynchronous motors. It operates at a rated power of one point five kilowatts or two horsepower and supports voltages between two hundred to two hundred forty volts AC. The compact design allows for vertical stacking, optimizing space usage within machine frames.

• Rated power: 1.5 kW (2 hp)
• Voltage range: 200V to 240V AC
• Robust design suitable for harsh environments

Product Highlights

This drive features enhanced torque and speed control at low speeds, making it suitable for various applications like material handling, packaging, and hoisting. It also supports high dynamic performance through flux vector control without an external sensor.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ATV320U15M2C
• Power Rating: 1.5 kW
• Voltage Range: 200V to 240V AC
• Mounting Type: Wall-Mounted
• Weight: 3.53 lb
• Dimensions: 6.22 in x 4.13 in x 5.59 in
• Country of Origin: Indonesia
• Certifications: CE, UL, CSA, NOM, EAC, RCM
