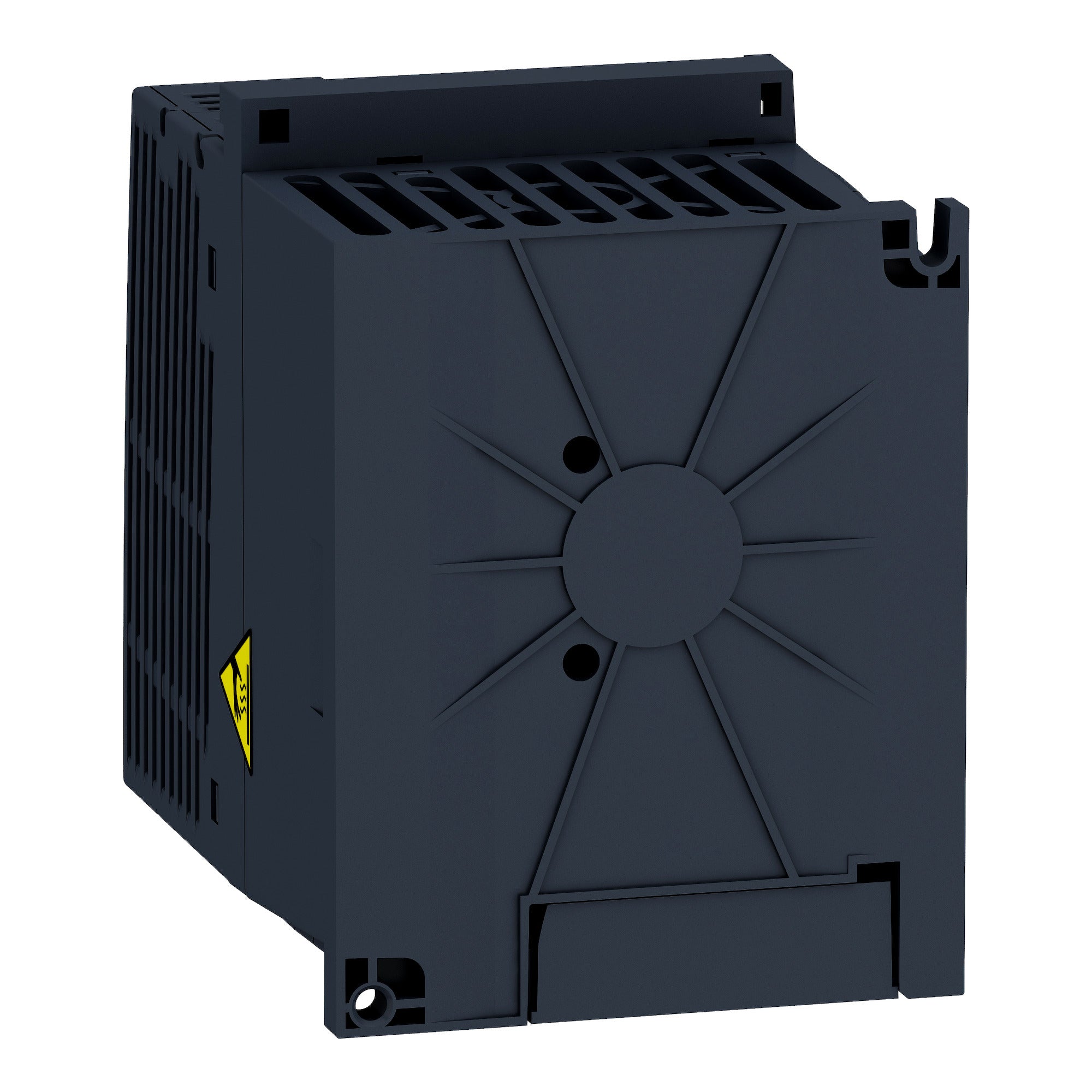

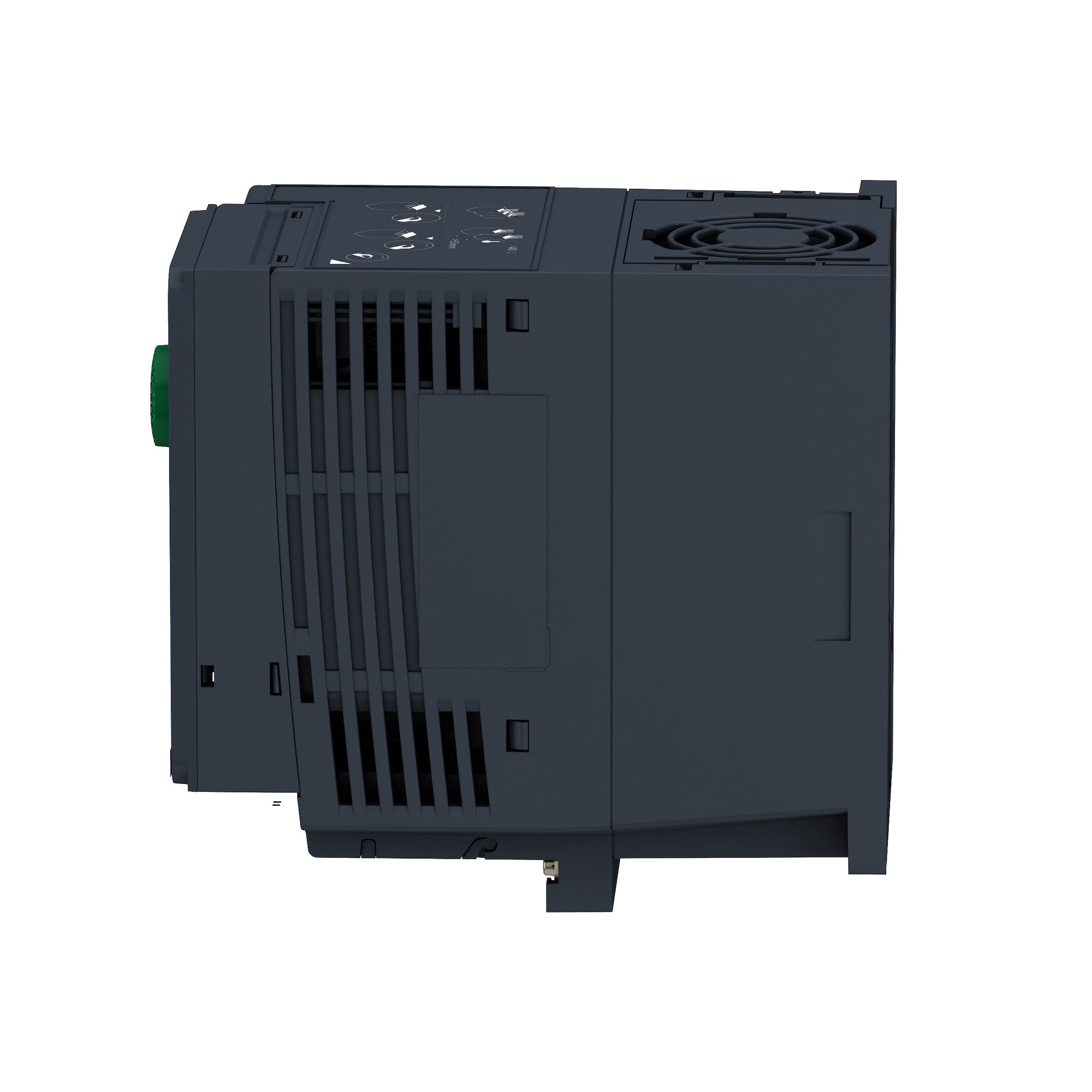

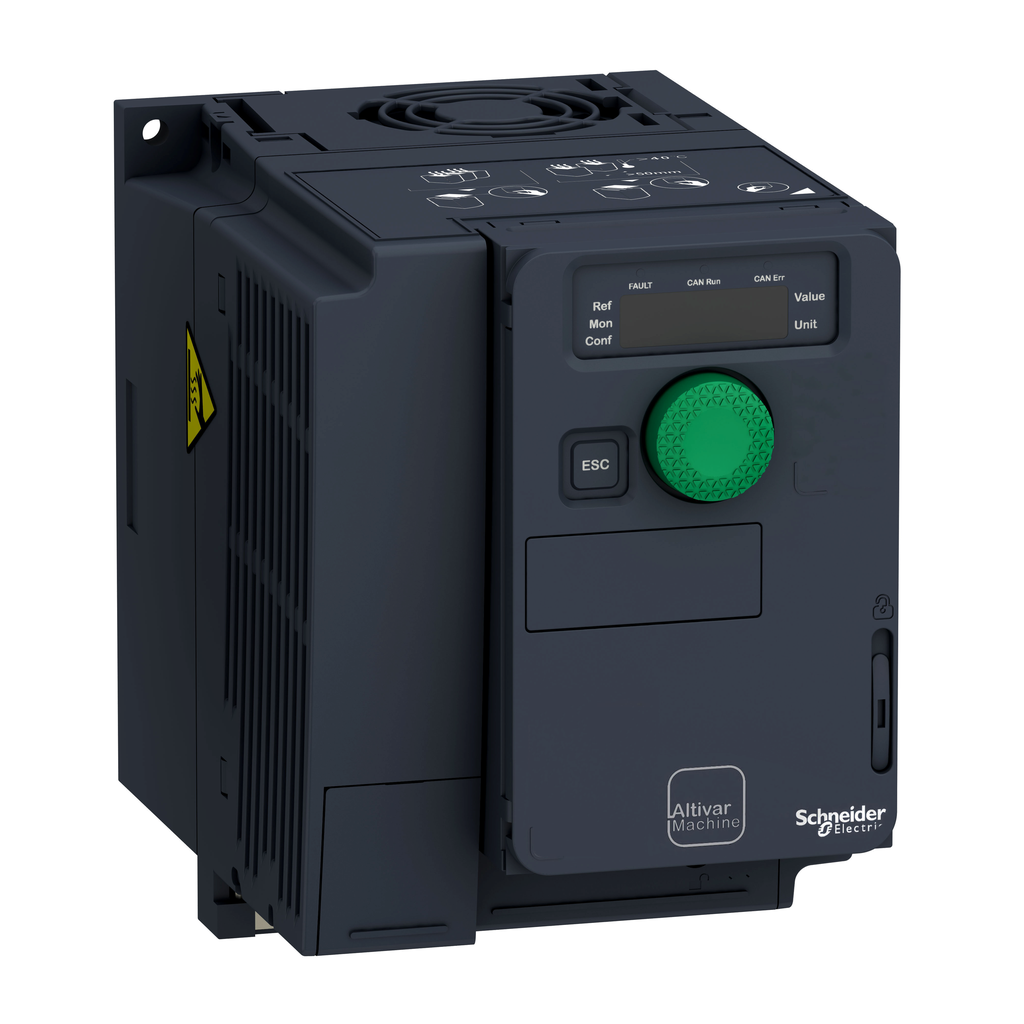

Schneider Electric ATV320U11N4C variable speed drive 1.1kW 380 to 500V

Product Description

The Schneider Electric ATV320U11N4C variable speed drive powers 3-phase synchronous and asynchronous motors efficiently. This drive operates at a maximum power of 1.1 kilowatt or 1.5 horsepower and supports input voltages ranging from 380 volts to 500 volts AC. Its compact design allows for vertical stacking in machine frames, optimizing space in control panels.

• Rated voltage range: 380V to 500V AC
• Compact form makes vertical installation easy
• Robust construction for harsh environments

Product Highlights

This drive is suitable for various applications including material handling, textile, and mechanical actuators. It includes five safety functions and is compatible with SoMove software for configuration and diagnostics.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ATV320U11N4C
• Power Rating: 1.1 kW
• Voltage Range: 380V to 500V AC
• Weight: 2.87 lb
• Height: 142 mm
• Width: 105 mm
• Depth: 158 mm
• Country of Origin: Indonesia
