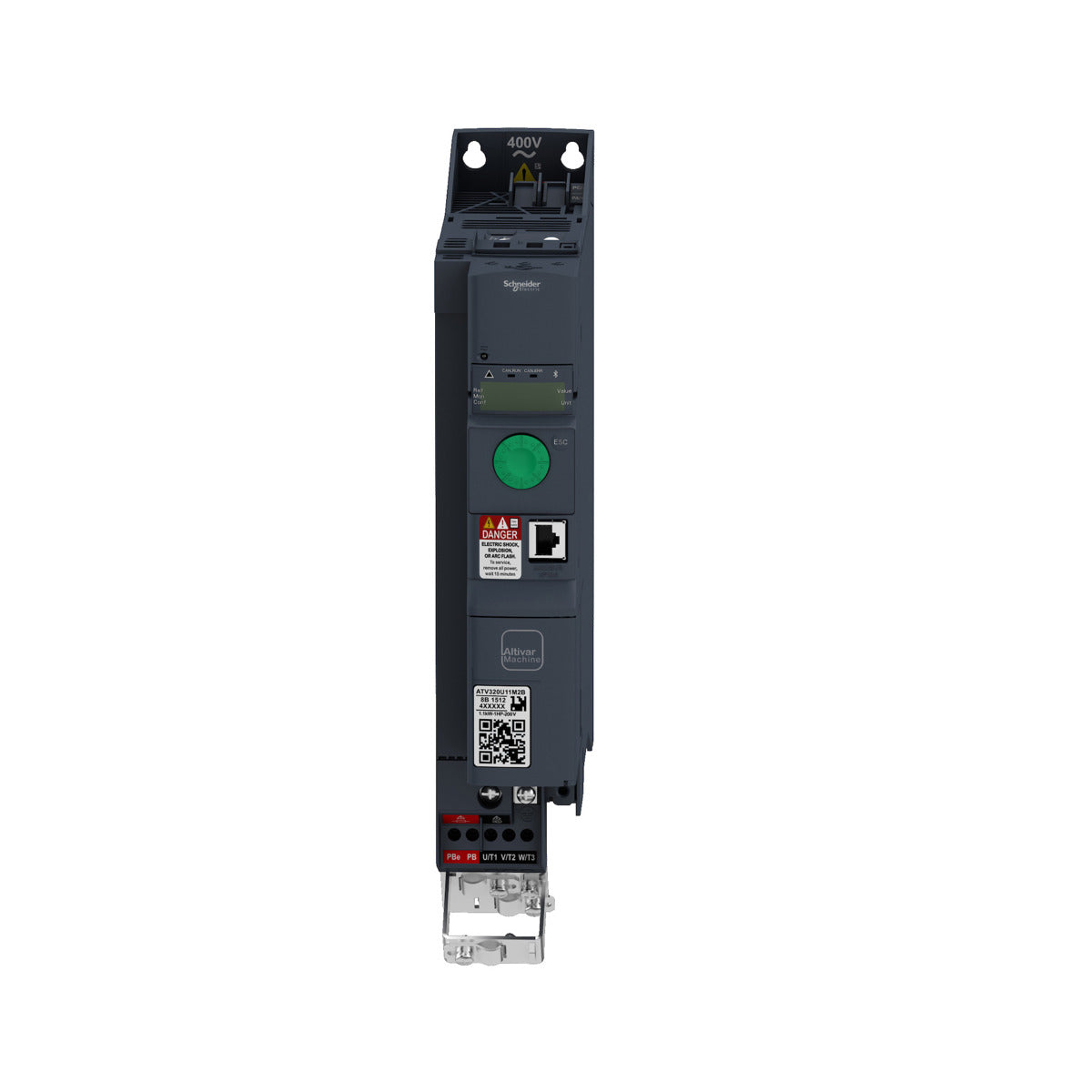

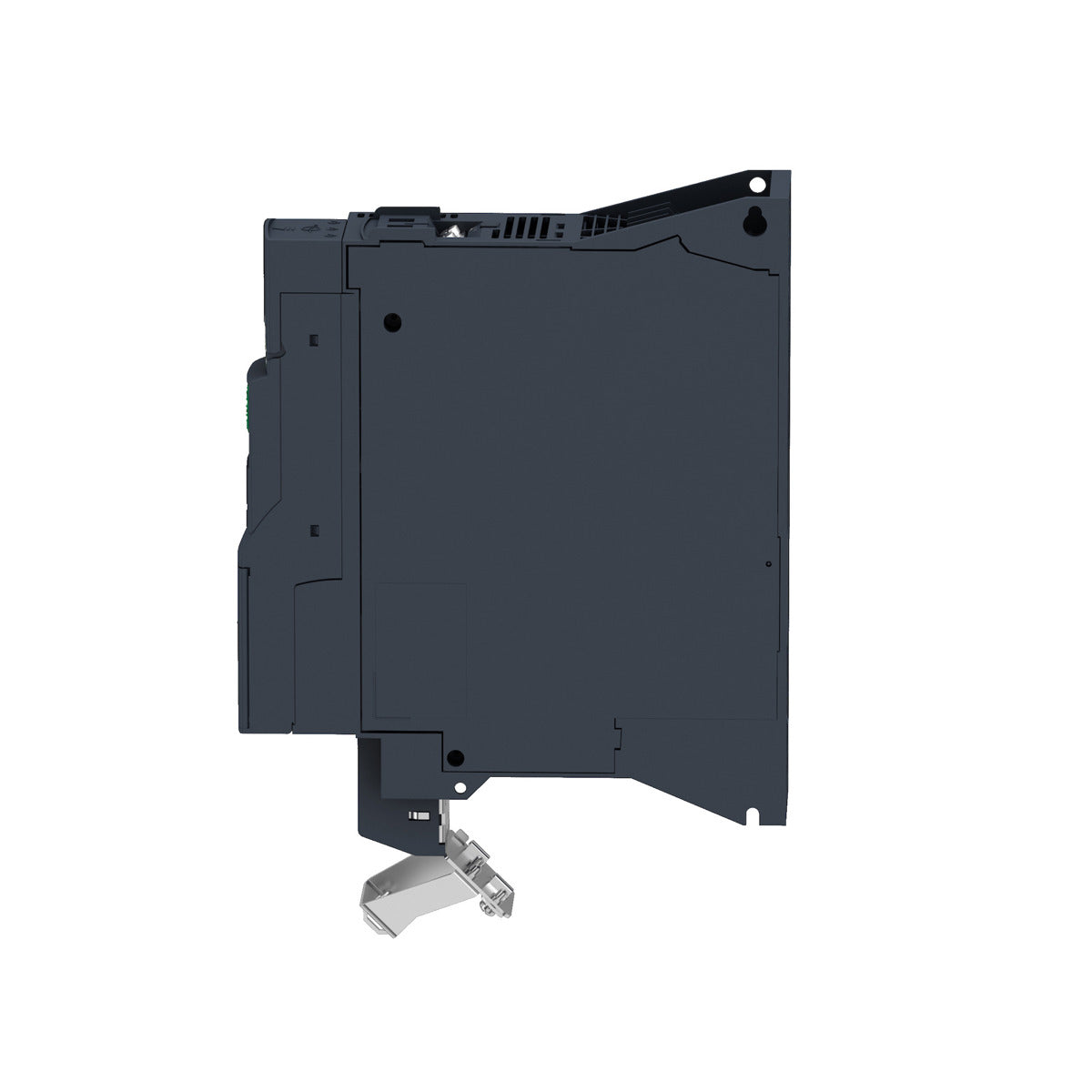

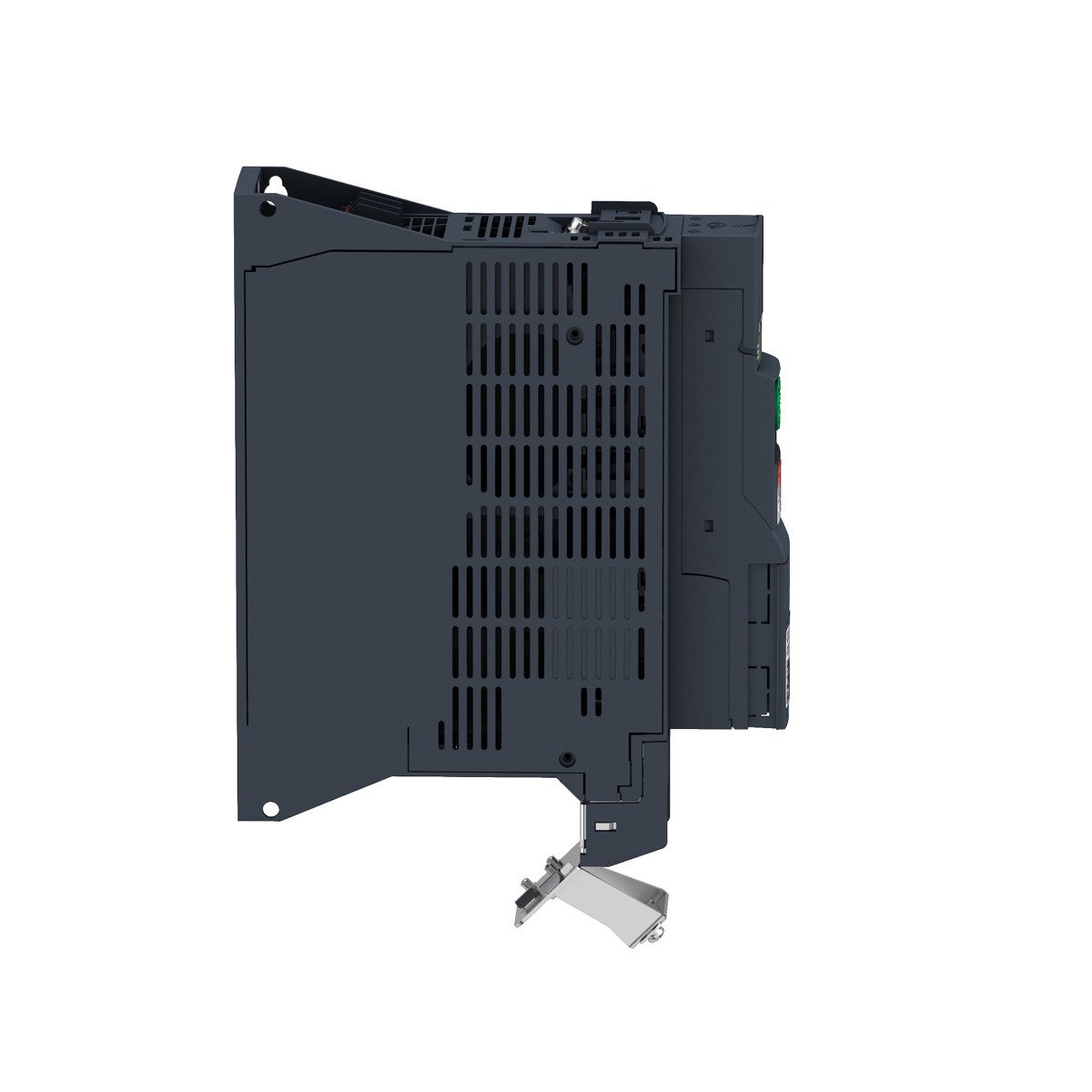

Schneider Electric ATV320U11N4B variable speed dri 1.1kW 380 to 500V

Product Description

The Schneider Electric ATV320U11N4B is a variable speed drive suitable for 3-phase synchronous and asynchronous motors. Designed for installation in automation cabinets, this drive operates with a power rating of up to 1.1 kW (1.5 hp) and can handle voltages between 380V and 500V AC. It features robust printed circuit boards that meet IEC 60721-3-3 class 3C3 standards, making it highly reliable in harsh environments, withstanding temperatures up to 60°C without additional cooling.

• Compatibility with a wide range of motor applications.
• Integrated safety functions for enhanced machine operation.
• Flexible mounting design for ease of installation.

Product Highlights

This drive is ideal for Original Equipment Manufacturers (OEMs) working in sectors like packaging, material handling, textiles, and mechanical actuators.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D

Technical Specifications

• Rated Power: 1.1 kW / 1.5 hp
• Rated Voltage: 380V to 500V AC
• Weight: 5.51 lb
• Dimensions: 9.65 in (length) x 325 mm (height) x 45 mm (width)
• Mounting Type: Cabinet Mount
• Certification: CE, UL, CSA, NOM, EAC
• Country of Origin: Indonesia
• Temperature Range: -25 to 70 degrees C
