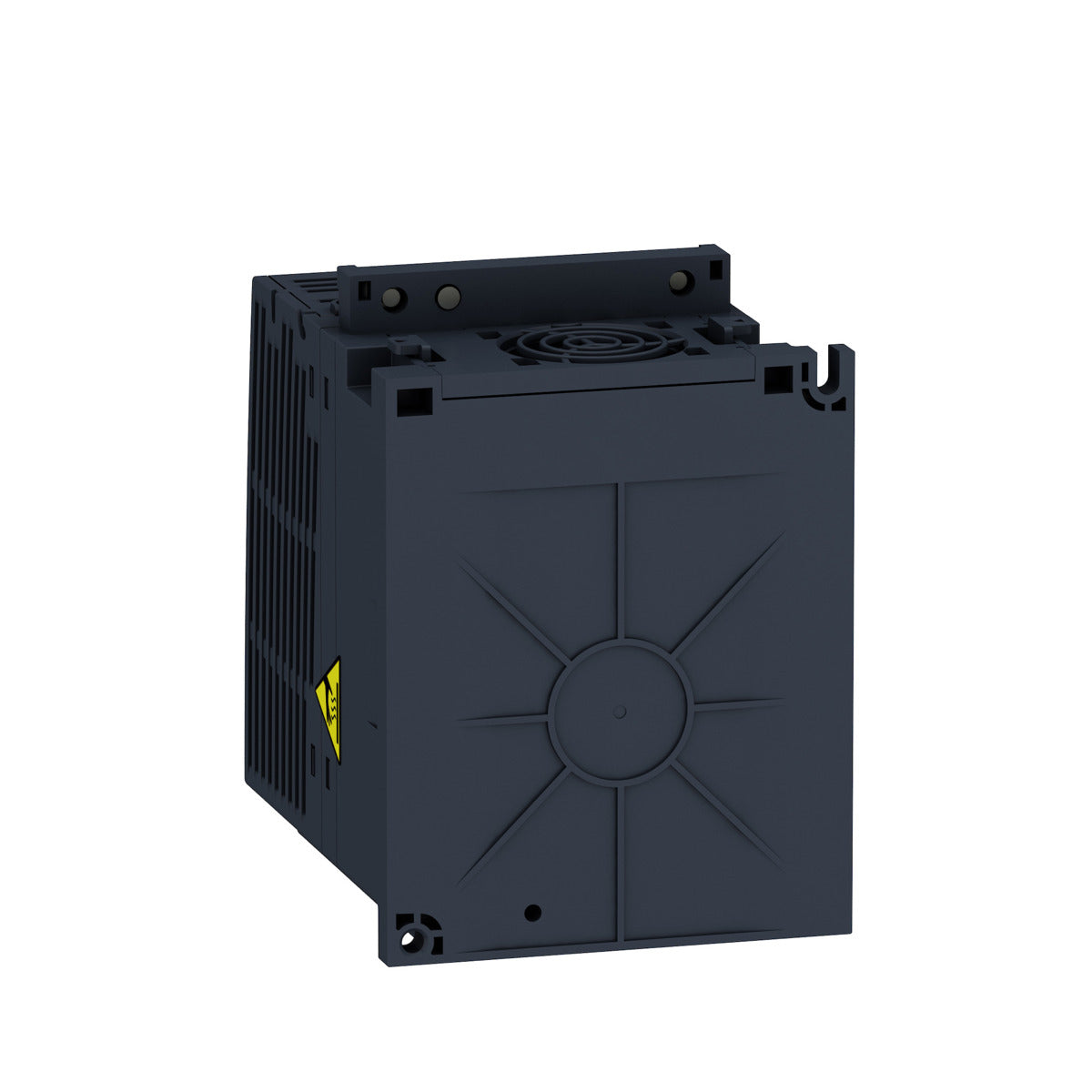

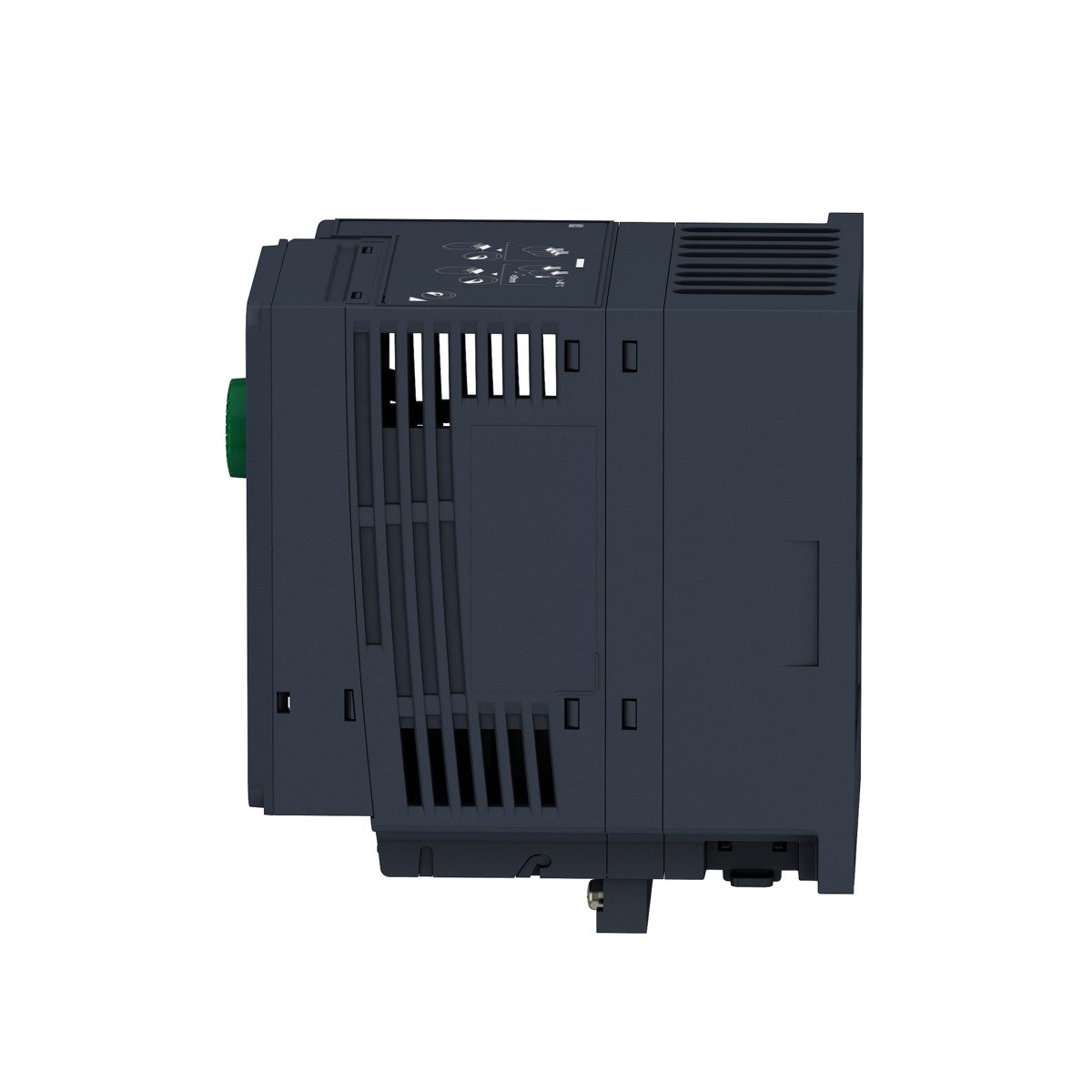

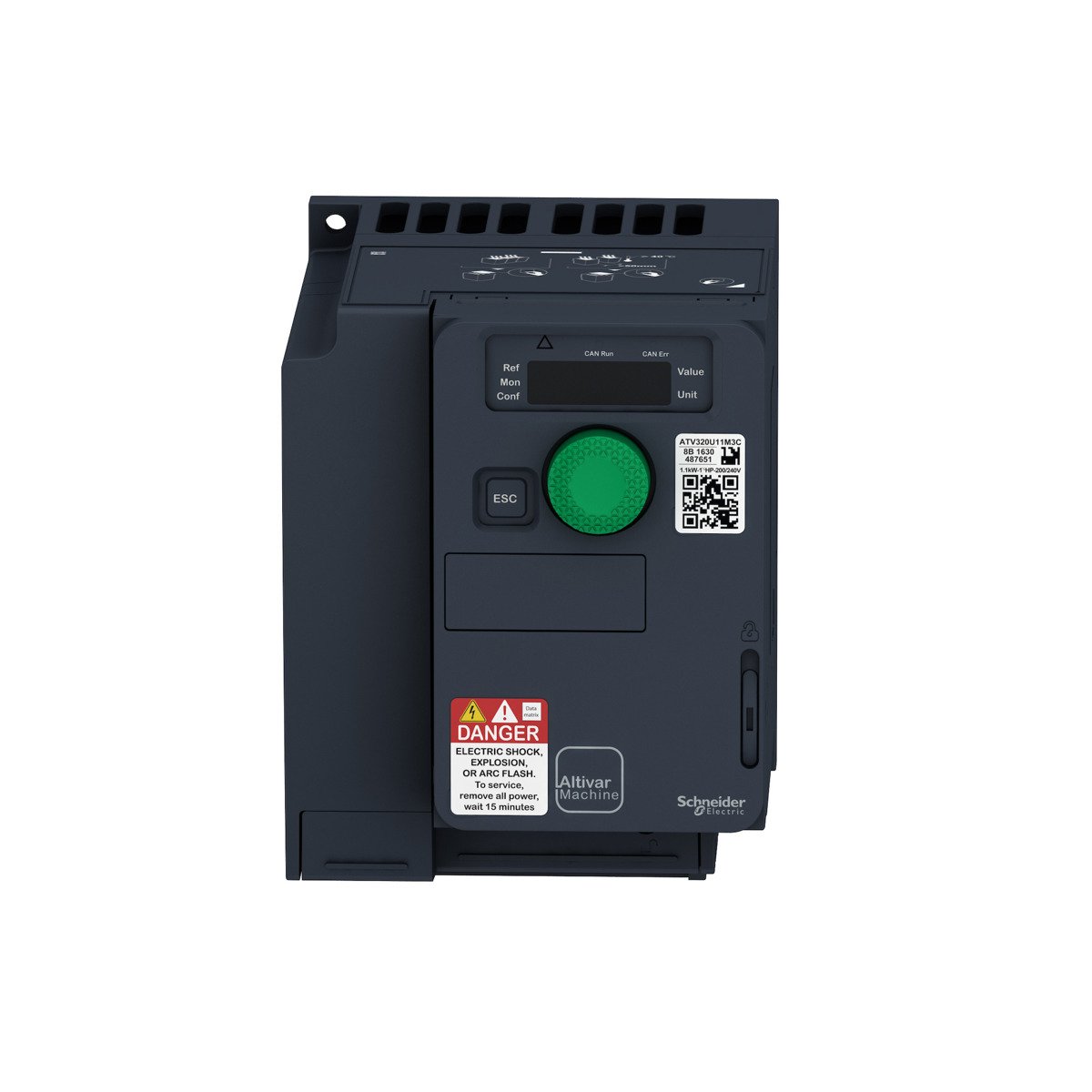

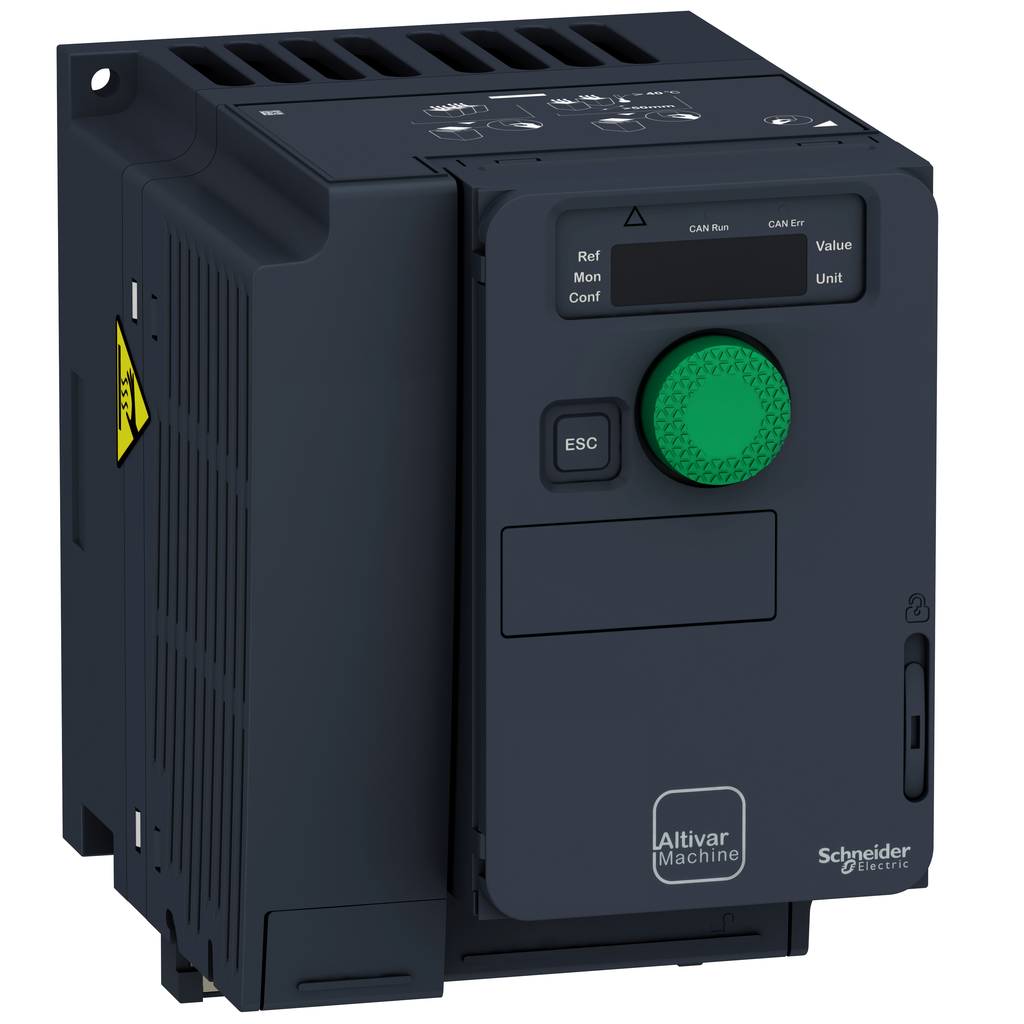

Schneider Electric ATV320U11M3C variable speed drive 1.1kW 200 to 240V 3 phases

Product Description

The Schneider Electric ATV320U11M3C is a variable speed drive designed for original equipment manufacturers (OEMs). This compact model allows for vertical stacking within machine frames. It operates at a rated power of one point one kilowatts (1.1kW) or one point five horsepower (1.5hp) and supports a voltage range of two hundred to two hundred forty volts AC (200V to 240V). The drive features coated printed circuit boards that enhance its functionality in harsh environments, allowing use at ambient temperatures up to sixty degrees Celsius (60°C) without supplemental cooling.

• Designed for OEMs with compact form for stacked installation
• Robust design suitable for high ambient temperatures
• Integrated safety functions for improved machine reliability

Product Highlights

This drive includes functions for torque and speed accuracy, high dynamic performance, and an extended frequency range for high-speed motors.

Product Information

Standard Information

• Brand: Schneider Electric
• Model Number: ATV320U11M3C

Technical Specifications

• Power Rating: 1.1 kW / 1.5 hp
• Voltage Range: 200V to 240V AC
• Weight: 1.4 kg
• Dimensions (WxHxD): 105 mm x 143 mm x 138 mm
• Mounting Type: Wall-mounted with vertical installation
• Safety Functions: 5 integrated safety features, configurable via SoMove software
• Certifications: IEC, UL, TUV, KC
• Country of Origin: Indonesia
