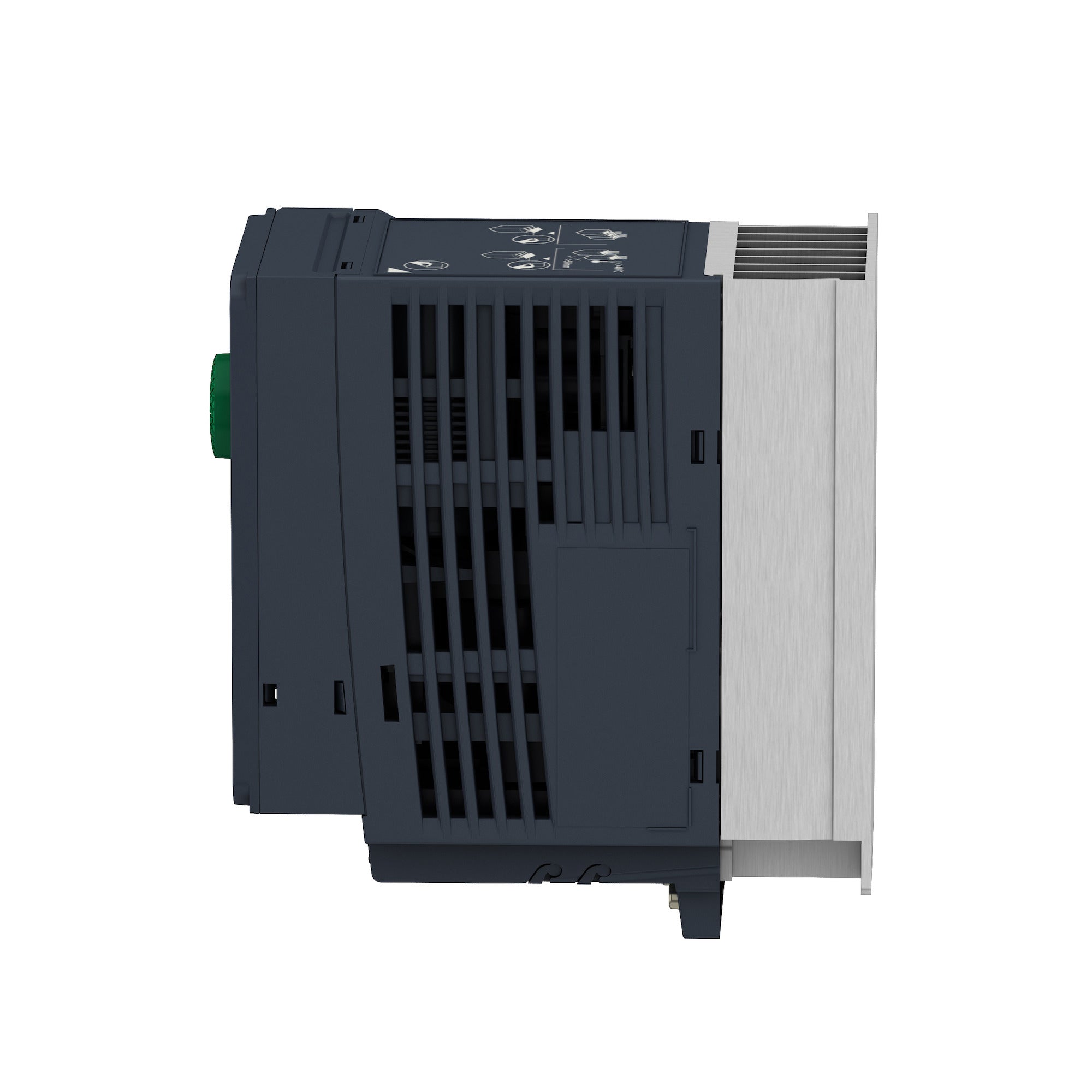

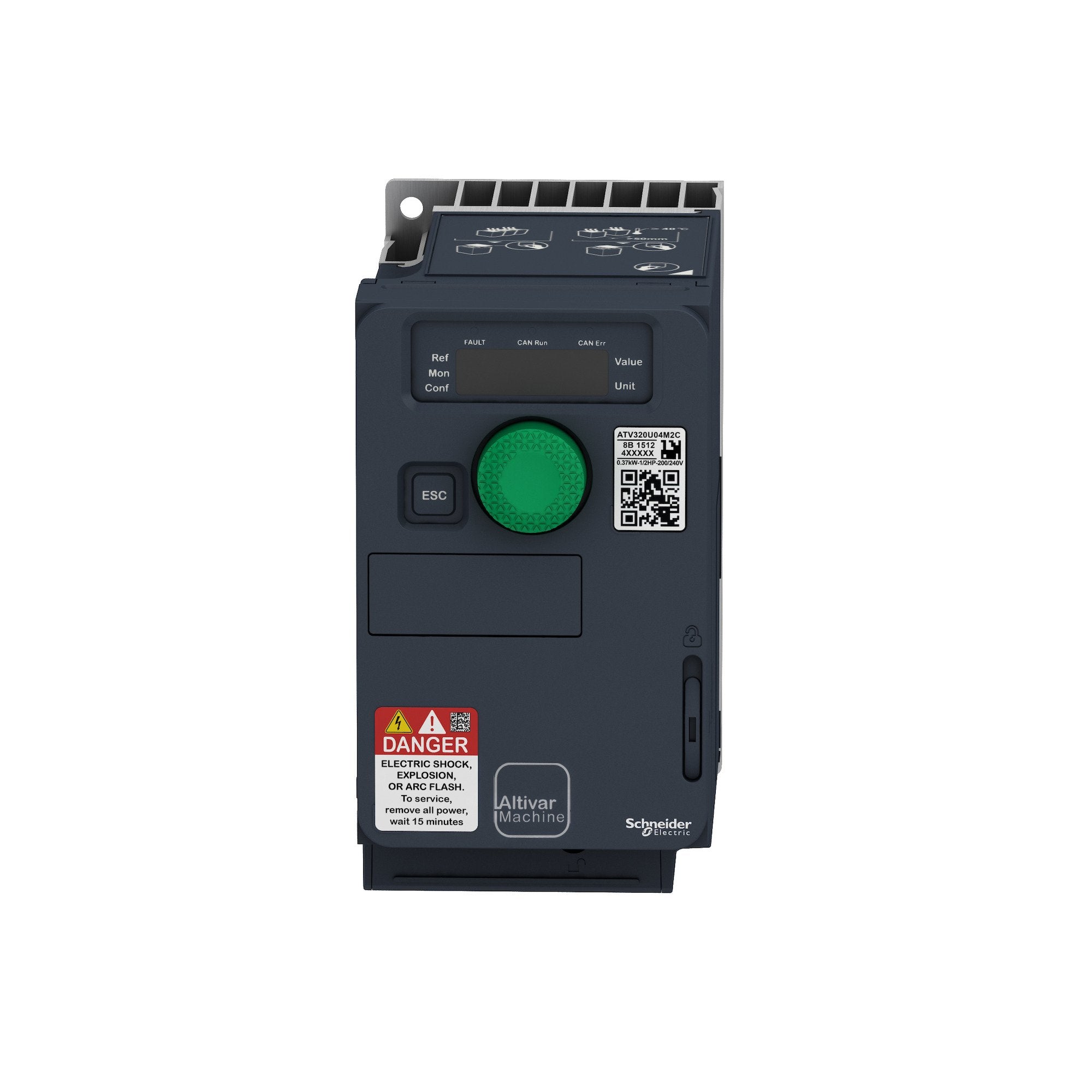

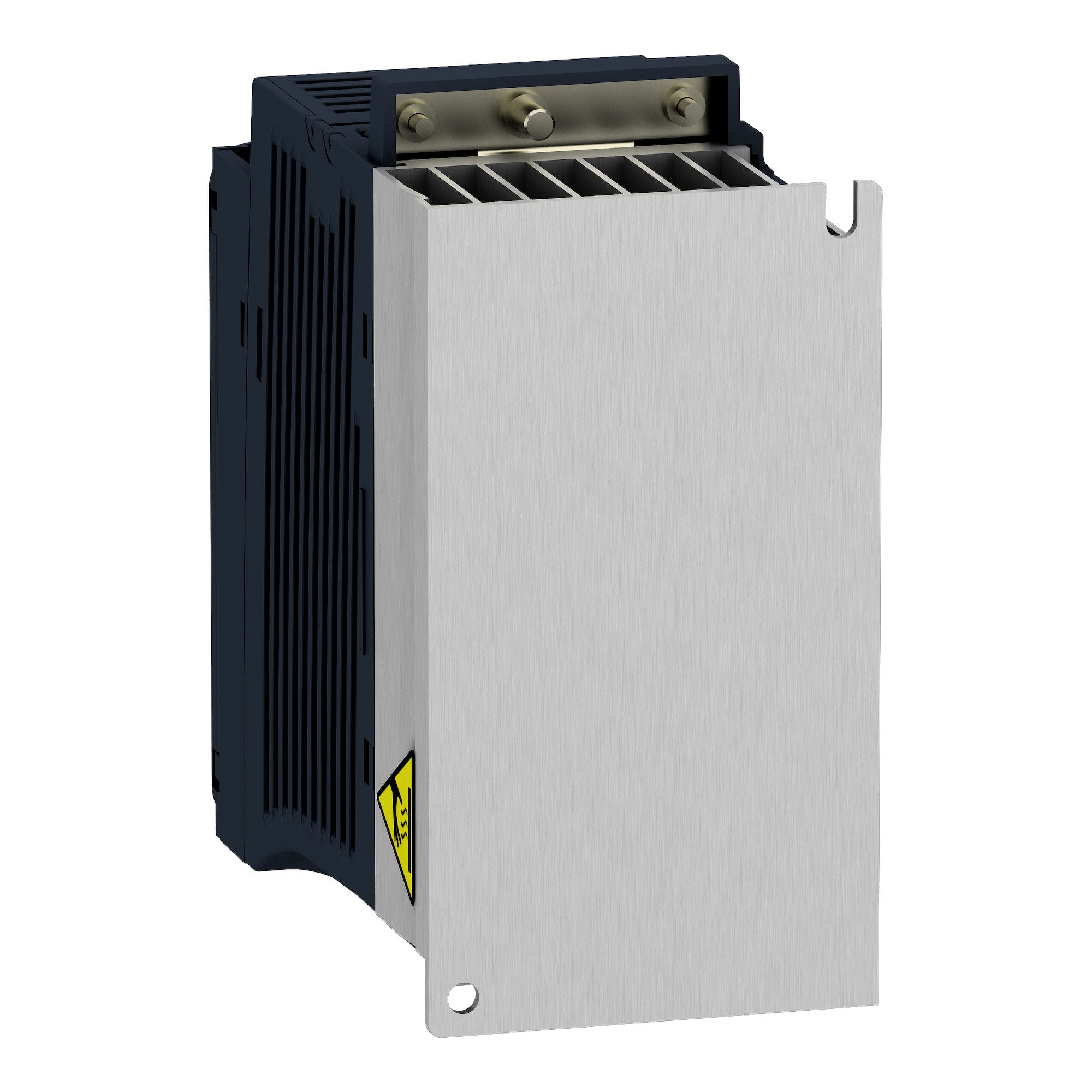

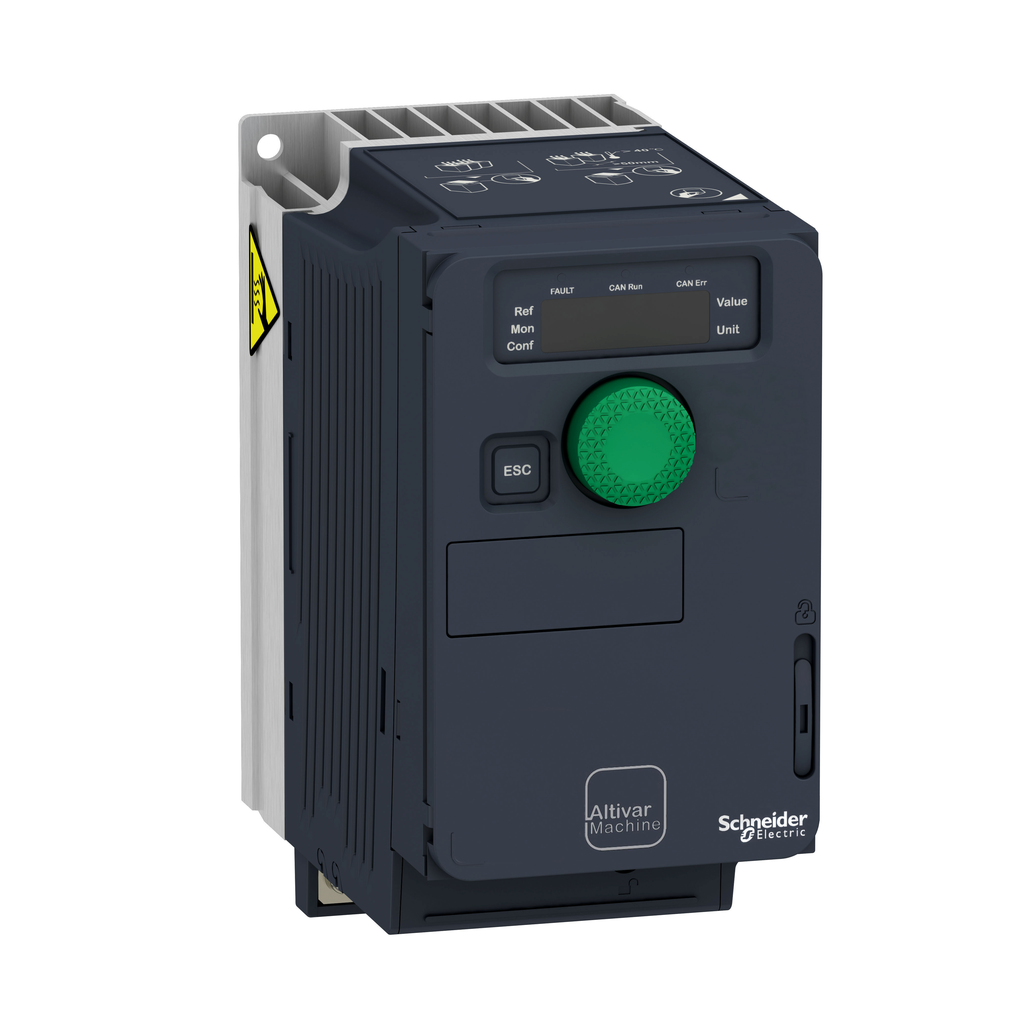

Schneider Electric ATV320U07M3C variable speed drive 0.75kW 200 to 240V

Product Description

Schneider Electric offers the ATV320U07M3C variable speed drive. This device operates at a rated power of up to 0.75kW or 1hp, with a voltage range from two hundred volts to two hundred forty volts AC. It is suitable for original equipment manufacturers and can be vertically stacked in compact machine frames.

• Works at ambient temperatures up to sixty degrees Celsius.
• Incorporates torque and speed accuracy for various applications.
• Configured via SoMove software with multiple safety functions.

Product Highlights

The ATV320 drives are designed to meet advanced application requirements across packaging, material handling, and textile industries. They support both simple and complex machines.

Product Information

Standard Information

• Catalog Number: ATV320U07M3C
• Manufacturer: Schneider Electric

Technical Specifications

• Power Rating: 0.75 kW
• Voltage Range: 200V to 240V AC
• Weight: 1 kg
• Dimensions: 72 mm width, 143 mm height, 138 mm depth
• Phases: 3 Phase
• Storage Temperature: -25 to 70 degrees C
• Certifications: IEC, UL, TUV, KC
• Safety Functions: 5 safety functions via SoMove software
