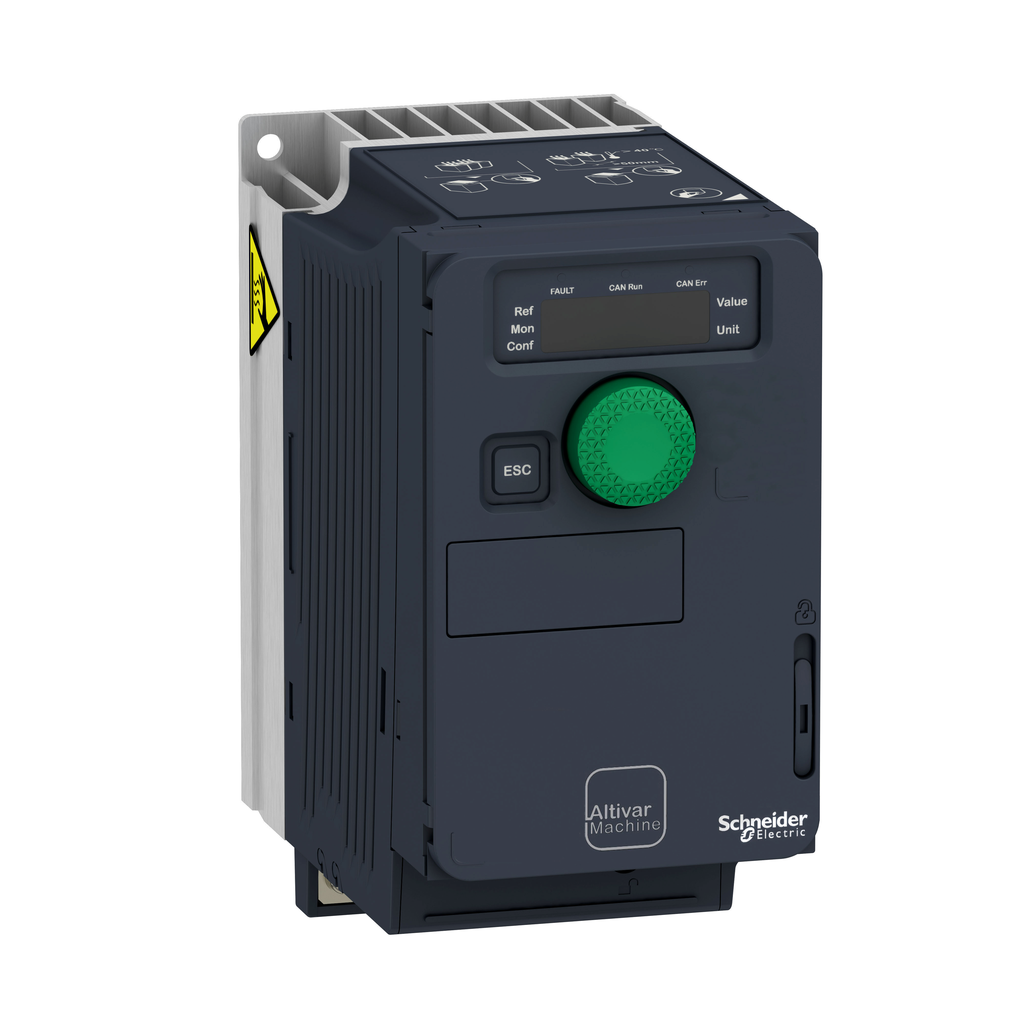

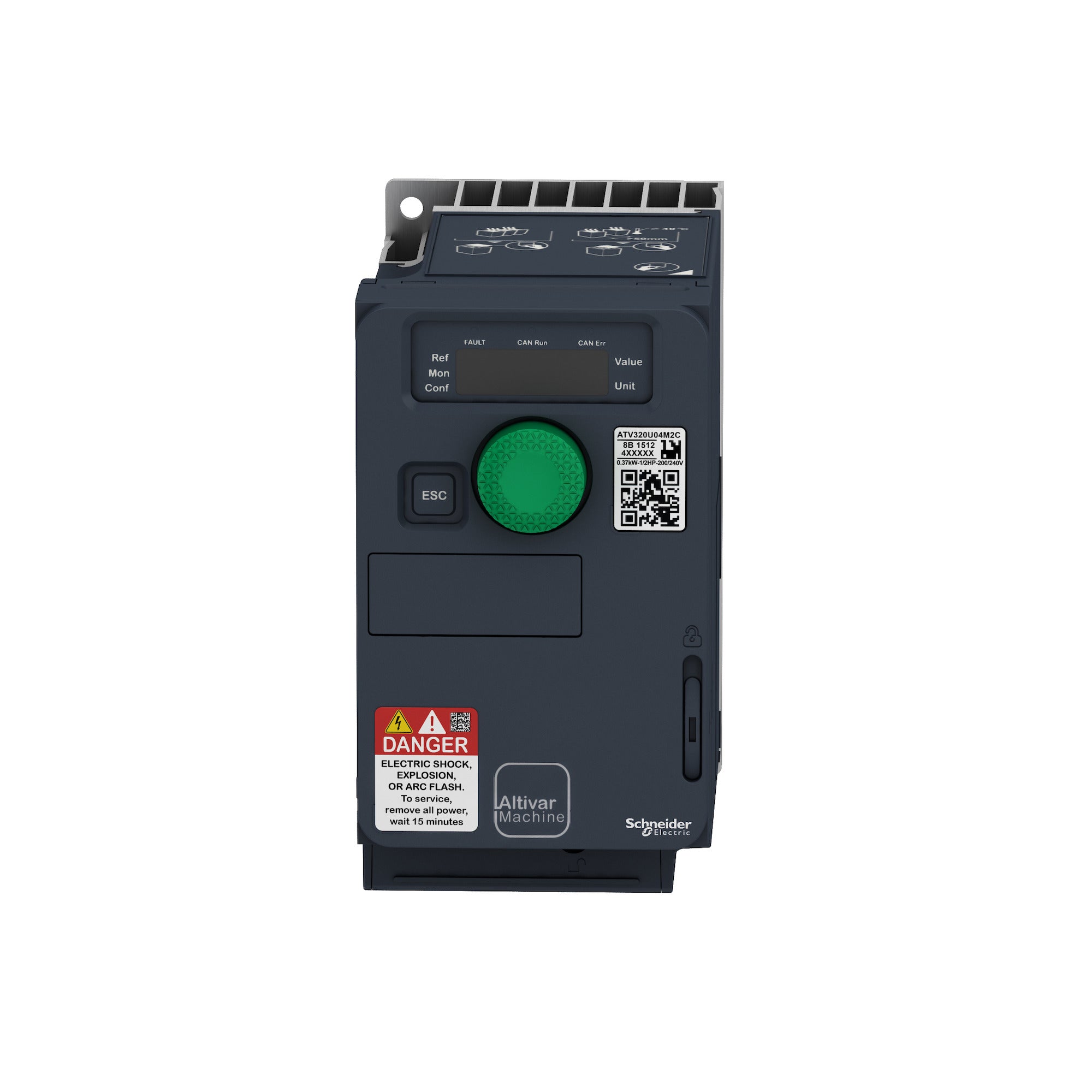

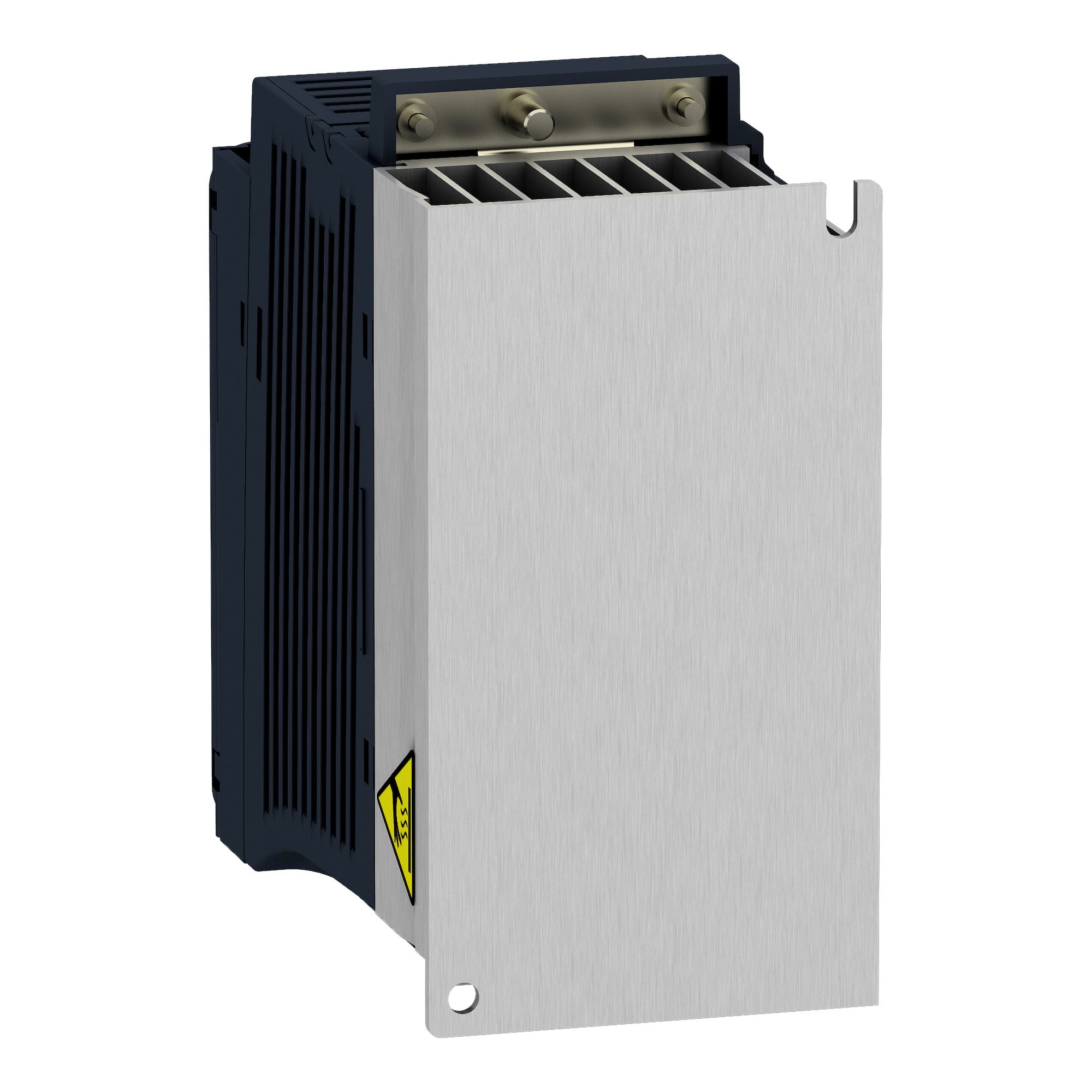

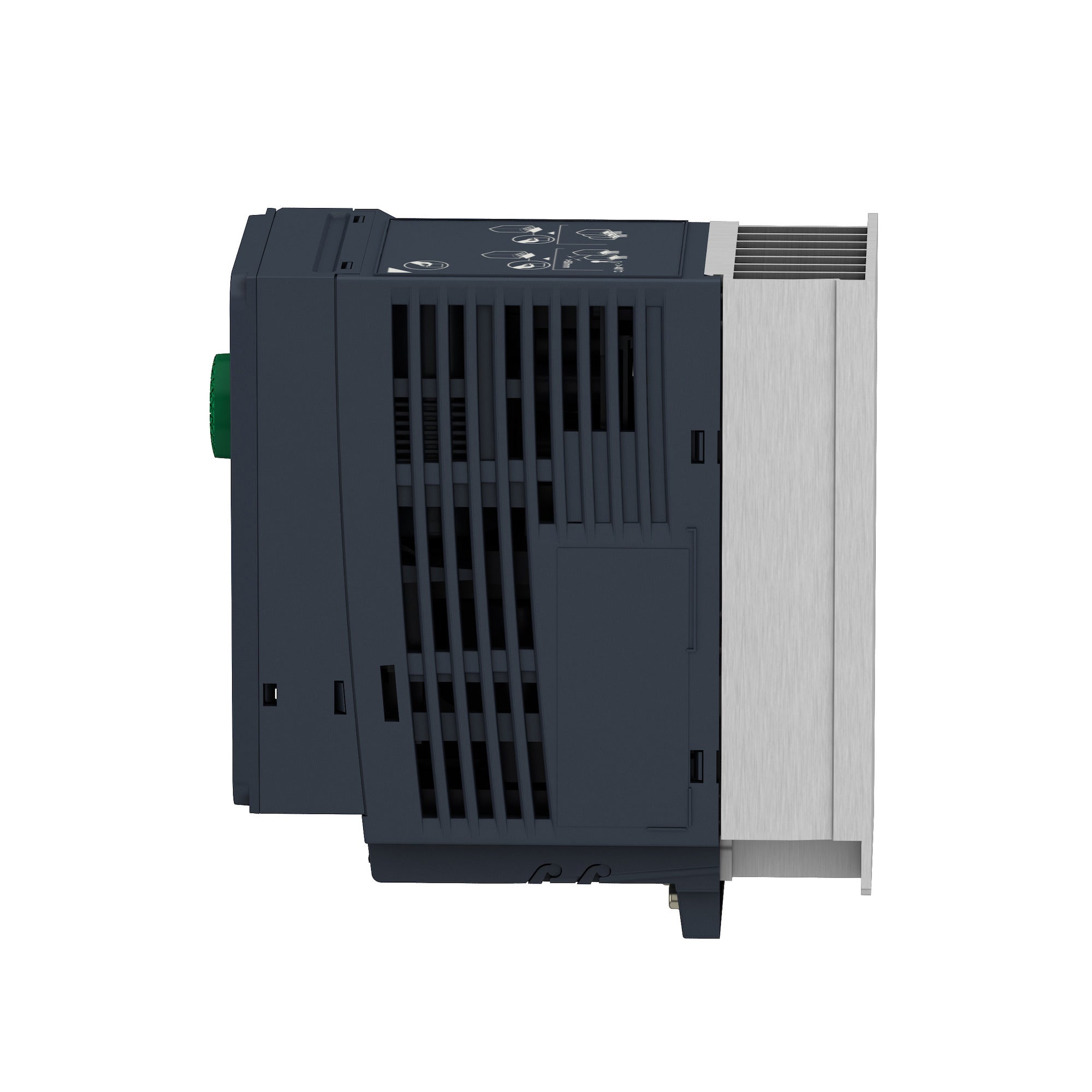

Schneider Electric ATV320U07M2C variable speed drive 0.75kW 200 to 240V

Product Description

The Schneider Electric ATV320U07M2C is a variable speed drive that operates with single-phase synchronous and asynchronous motors. This device has a compact form factor that allows for vertical stacking within machine frames, optimizing space usage. It supports a rated power of up to 0.75 kilowatt and a voltage range of 200 to 240 volts AC. The robust design is suitable for harsh environmental conditions, handling ambient temperatures up to sixty degrees Celsius without additional cooling.

• Compatible with asynchronous and synchronous motors including IE2, IE3, and PM types.
• Includes a transient overtorque function to prevent machine stoppages.
• Safety functions designed to meet international standards for machine safety requirements.

Product Highlights

The ATV320 drive enhances machine control with high dynamic performance and energy savings. It is ideal for applications such as material handling, packaging, and mechanical actuators.

Product Information

Standard Information

• Catalog Number: ATV320U07M2C
• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Type: Variable speed drive
• Weight: 2.43 lb
• Dimensions: 143 mm height x 72.0 mm width x 138 mm depth
• Number of Phases: 1 Phase
• Mounting Type: Wall-Mounted
• Certifications: ATEX, CE, EAC, GOST, KC, NOM, RCM
• Country of Origin: Indonesia
• Storage Temperature: -25 to 70 degrees Celsius
