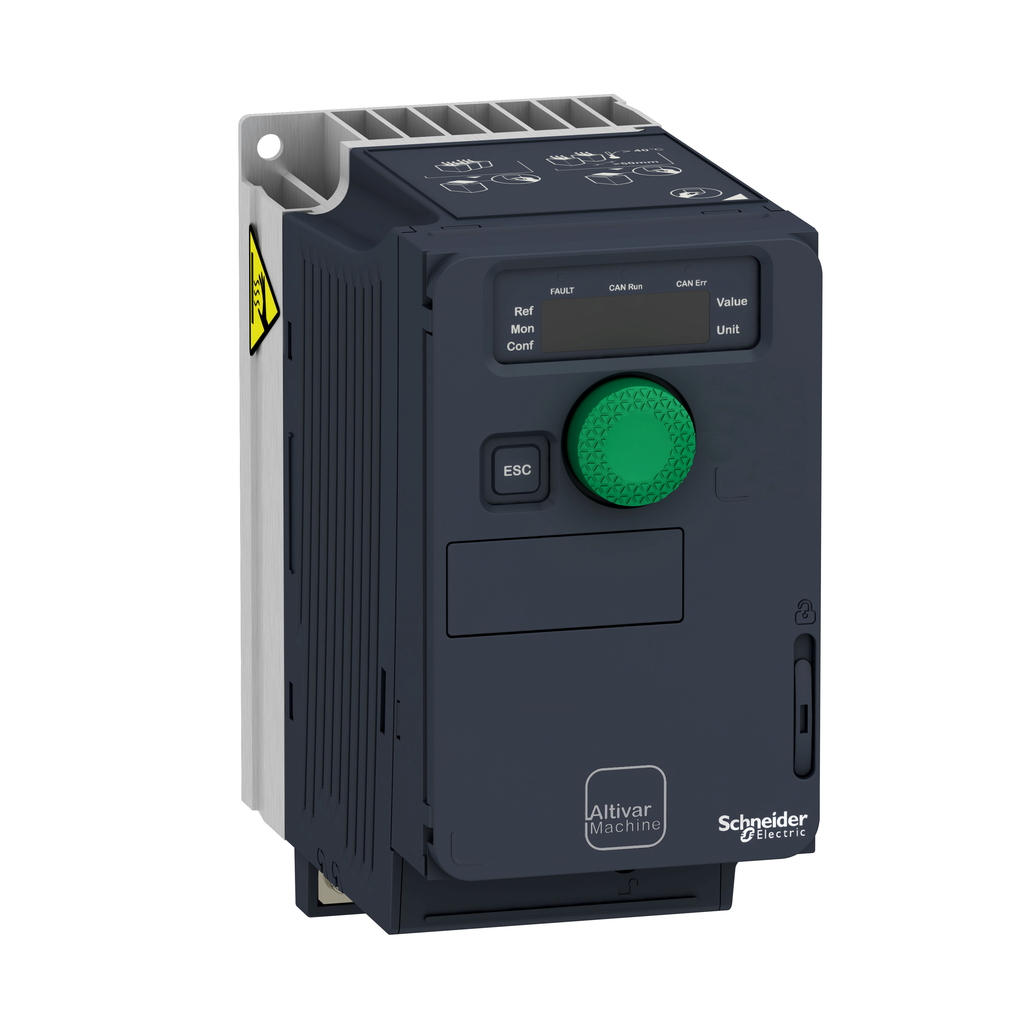

Schneider Electric ATV320U06M3C variable speed drive 0.55kW 200 to 240V

Product Description

Schneider Electric ATV320U06M3C is a variable speed drive designed primarily for Original Equipment Manufacturers (OEMs). This drive supports a rated power of 0.55kW or 0.75hp and operates within a voltage range of 200V to 240V AC. Its compact dimensions facilitate vertical stacking within machinery frames, making it ideal for various applications including packaging, material handling, and mechanical actuators.

• Rated power: 0.55kW / 0.75hp
• Rated voltage: 200V to 240V AC
• Compact design, suitable for vertical mounting

Product Highlights

This variable speed drive offers high dynamic performance and features such as torque and speed accuracy. It can function efficiently in harsh environments with temperatures up to sixty degrees Celsius without additional cooling.

Product Information

Standard Information

• Catalog Number: ATV320U06M3C
• Brand: Schneider Electric

Technical Specifications

• Voltage Range: 200V to 240V AC
• Weight: 1 kg
• Dimensions: 72 mm (W) x 143 mm (H) x 138 mm (D)
• Mounting Type: Wall-Mounted
• Country of Origin: Indonesia
• Standards Compliance: IEC, UL, TUV, KC
• Storage Temperature: -25 to 70 degrees Celsius
• Number of Phases: 3 Phase
