Schneider Electric ATV320U02M2C variable speed dri 0.18kW 200 to 240V AC

Product Description

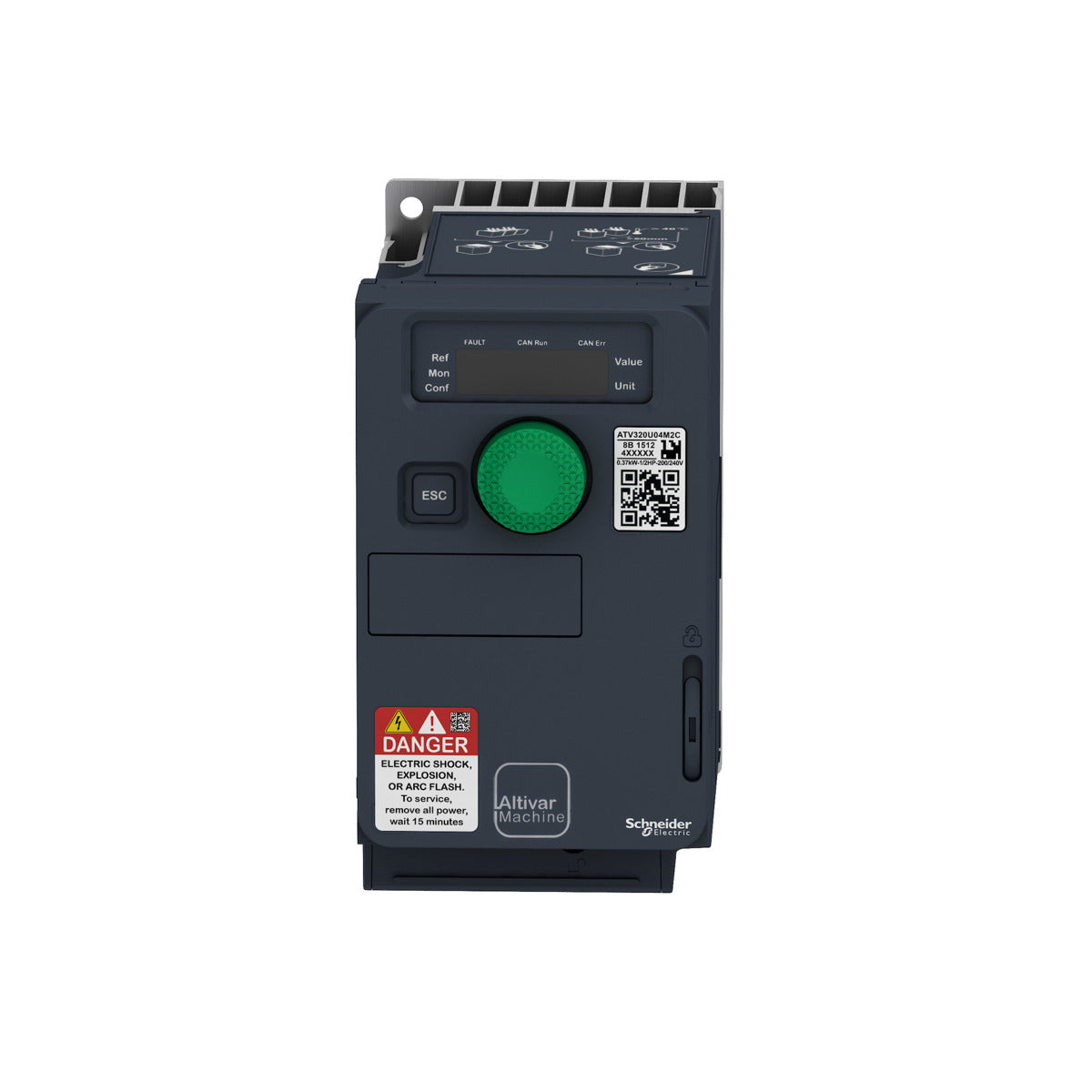

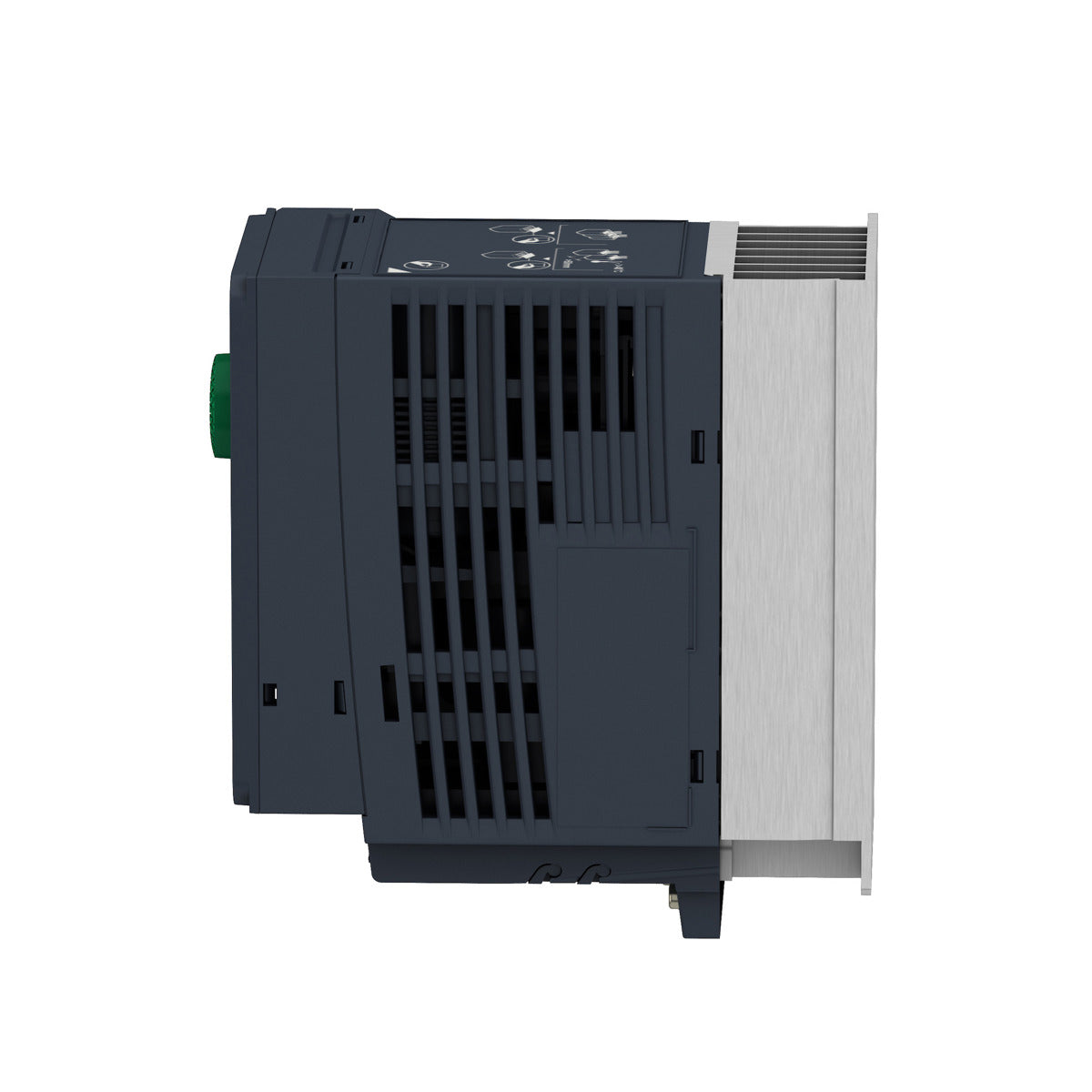

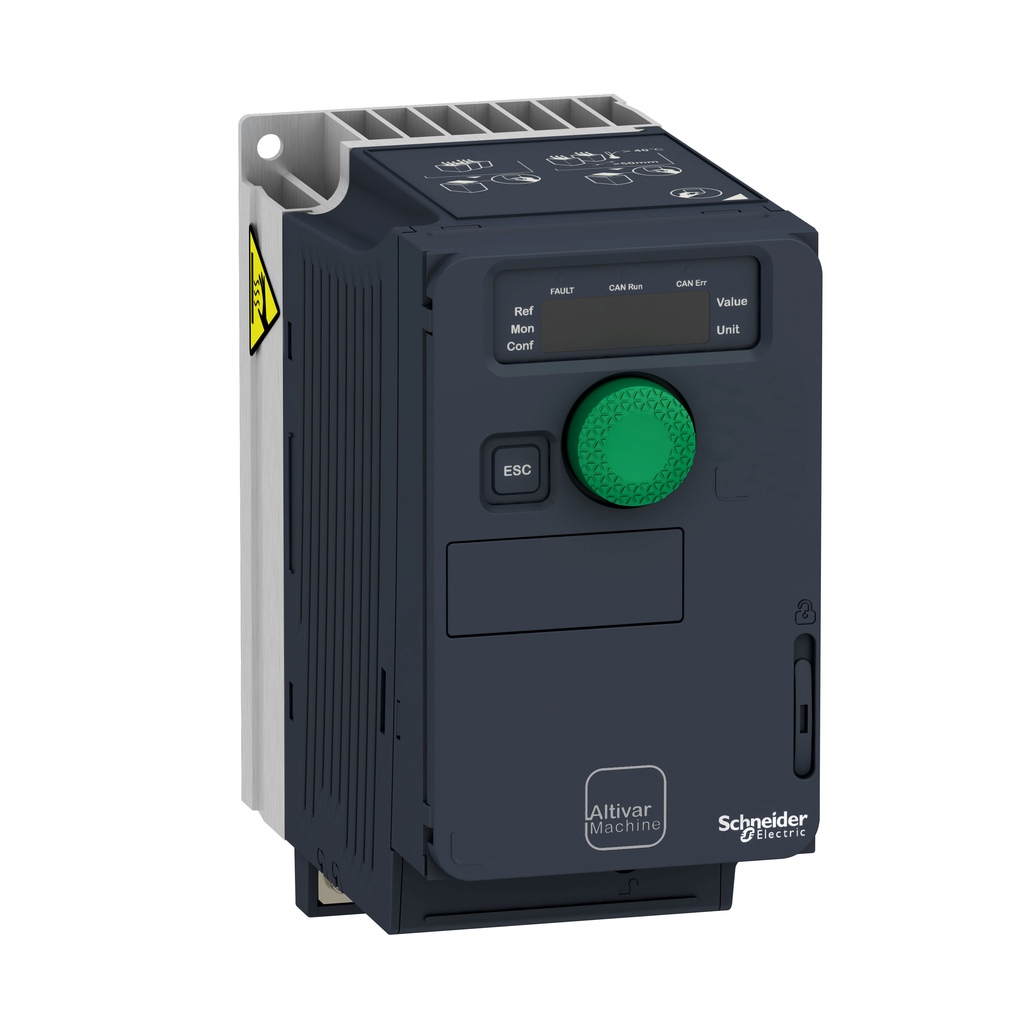

Schneider Electric's ATV320U02M2C is a variable speed drive suitable for single-phase synchronous and asynchronous motors. It operates at a power rating of up to zero point one eight kilowatts or zero point two five horsepower and is compatible with a voltage range of two hundred to two hundred forty volts AC. This drive features a compact design, enabling vertical stacking for space efficiency in machine frames.

• Rated power up to zero point one eight kilowatts.
• Robust design suitable for harsh environments.
• Integrated safety functions for compliance with safety standards.

Product Highlights

The ATV320 series is designed for OEMs and is well-suited for various applications including packaging, material handling, and textile machinery. It maintains operational reliability even in high ambient temperatures, up to sixty degrees Celsius, thanks to its durable construction.

Product Information

Standard Information

• Catalog Number: ATV320U02M2C
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Variable speed drive
• Input Voltage: 200 to 240V AC
• Power Rating: 0.18kW / 0.25hp
• Phase: Single Phase
• Weight: 1.76 lb
• Dimensions: 4.29 in x 2.83 in x 5.63 in (W x D x H)
• Country of Origin: Indonesia
• Certifications: CE, UL, CSA, NOM, EAC, RCM
