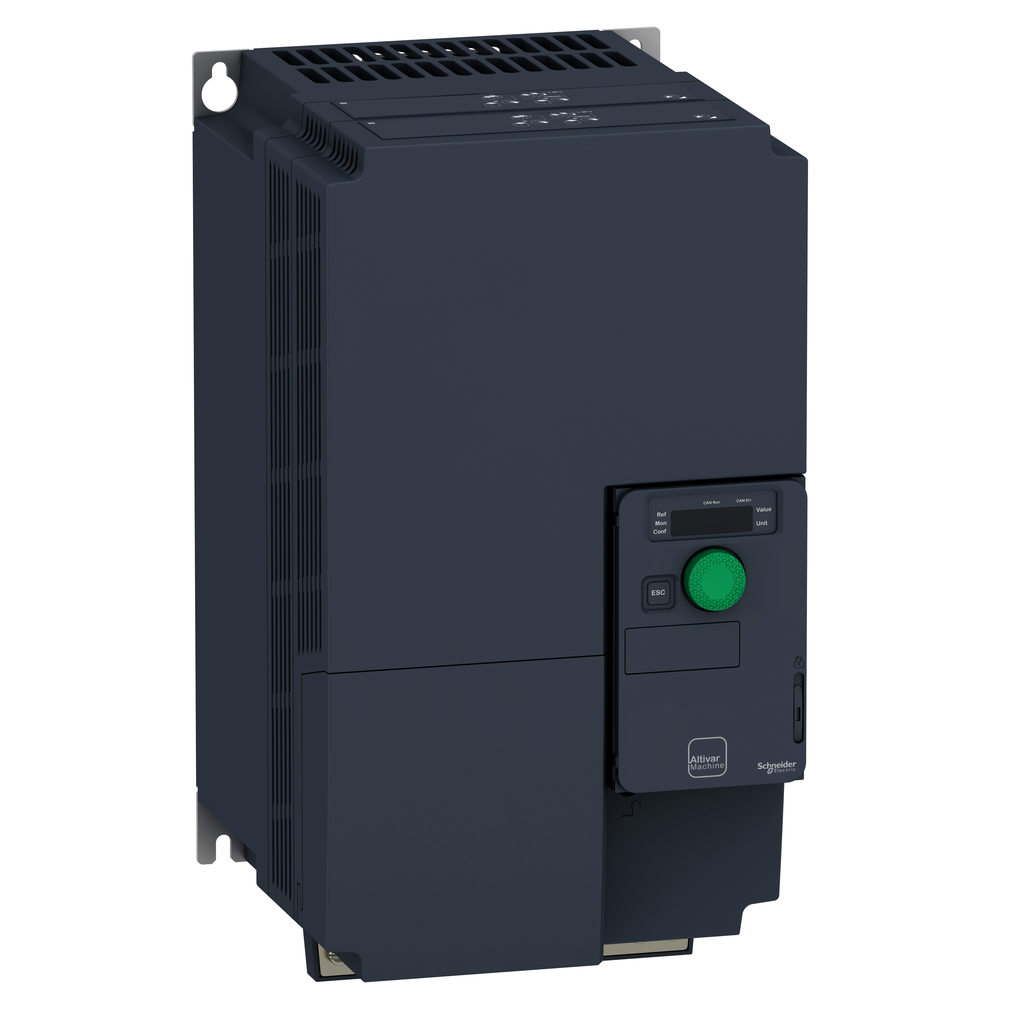

Schneider Electric ATV320D11N4C variable speed drive 11kW 380 to 500V

Product Description

Schneider Electric ATV320D11N4C is a variable speed drive designed for Original Equipment Manufacturers (OEMs). This drive operates at a power rating up to eleven kilowatts and supports a voltage range of three hundred eighty to five hundred volts AC. It features a compact design, allowing vertical stacking in machine frames.

• Rated power up to eleven kilowatts.
• Operating voltage range from three hundred eighty volts to five hundred volts AC.
• Integrated control functions suitable for multiple applications.

Product Highlights

This drive is designed to meet advanced application needs in sectors such as packaging, material handling, and hoisting. It conforms to key international standards including IEC, UL, and TUV.

Product Information

Standard Information

• Catalog Number: ATV320D11N4C
• Manufacturer: Schneider Electric

Technical Specifications

• Weight: 6.8 kg
• Dimensions: 180 mm width, 330 mm height, 198 mm depth
• Mounting Type: Wall-Mounted
• Number of Phases: 3 Phase
• Certifications: ATEX, CE, EAC, GOST, KC, NOM, RCM
• Country of Origin: Indonesia
• Storage Temperature: -25 to 70 degrees C
• GTIN: 03606489917814
