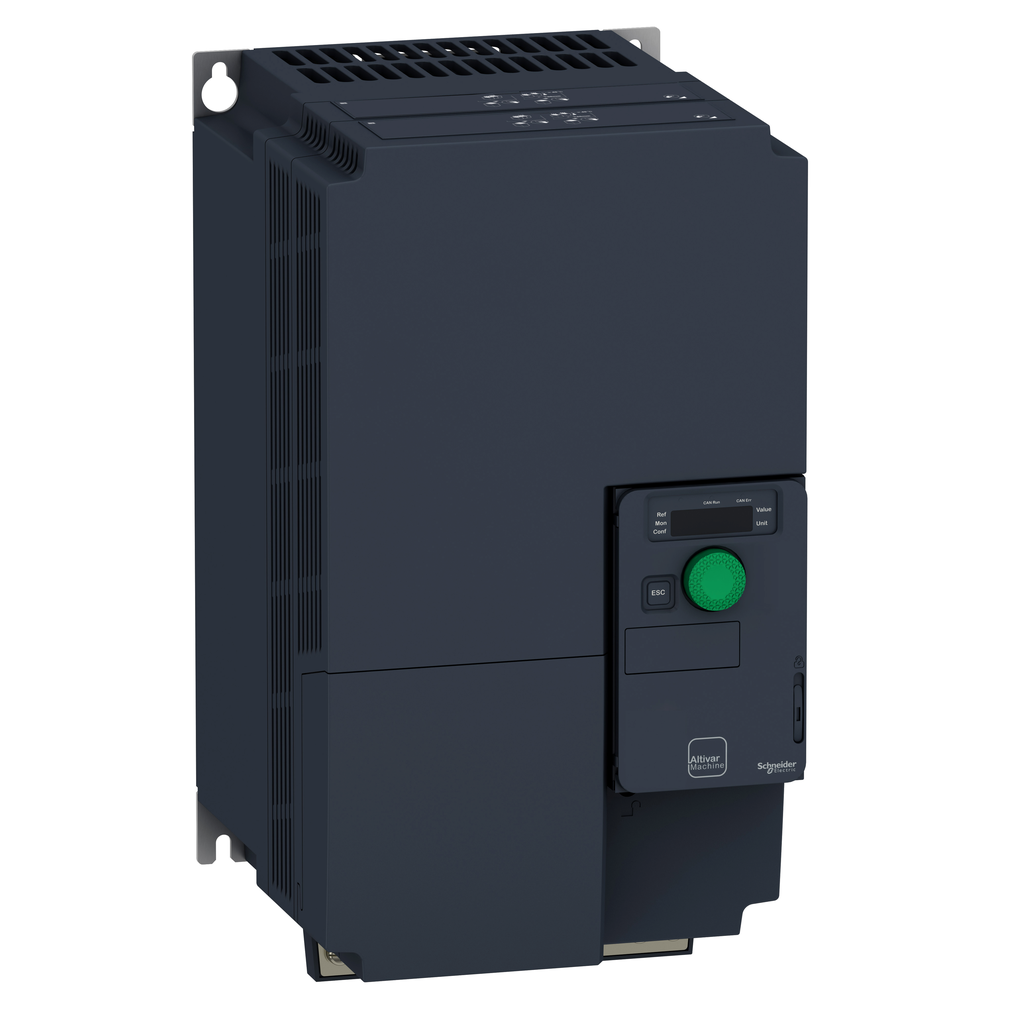

Schneider Electric ATV320D11M3C variable speed drive 11kW 200 to 240V

Product Description

The Schneider Electric ATV320D11M3C is a variable speed drive designed for Original Equipment Manufacturers (OEMs). It has a compact design suitable for vertical stacking within machine frames. This drive operates at a rated power of up to eleven kilowatts, or fifteen horsepower, with a voltage range from two hundred to two hundred forty volts AC. Its robust construction features IEC rated circuit boards, ensuring durability even in harsh conditions, allowing operation at ambient temperatures as high as sixty degrees Celsius without additional cooling.

• Rated Power: Up to 11kW / 15hp
• Voltage Range: 200V to 240V AC
• Weight: 6.8kg

Product Highlights

The ATV320D11M3C offers precision torque and speed control, making it ideal for tasks involving low speeds. Its dynamic performance is enhanced by sensorless flux vector control, and it provides a wide frequency range for high-speed motors. The drive allows for the parallel connection of motors and incorporates energy-saving features for open-loop synchronous motors.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ATV320D11M3C
• Type: Variable speed drive
• Country of Origin: Indonesia
• Depth: 198 mm
• Width: 180 mm
• Height: 330 mm
• Weight: 14.99 lb
• Certifications: ATEX, CE, EAC, GOST, KC, NOM, RCM
• Storage Temperature: -25 to 70 degrees Celsius
