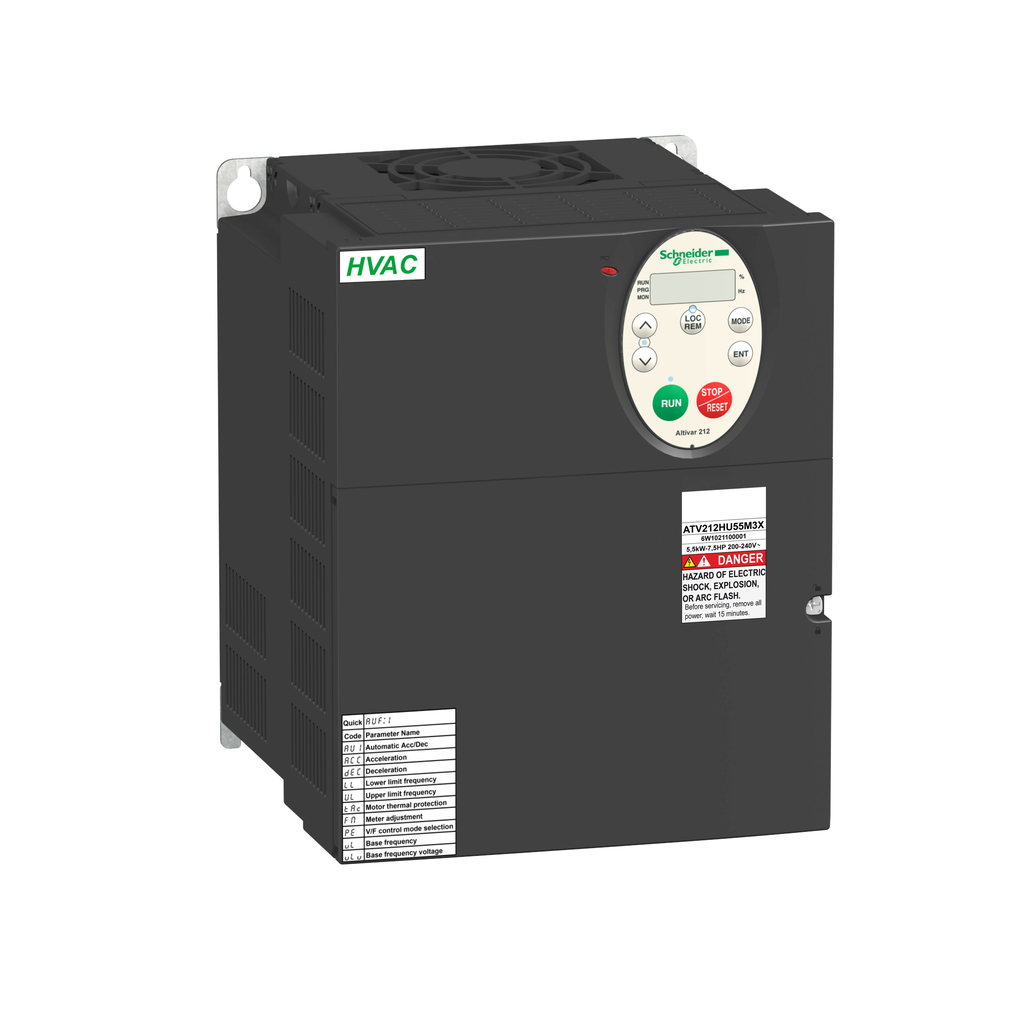

Schneider Electric ATV212HU55M3X Variable Speed Drive 7.5 Hp 240V 3 Phase

Product Description

The Schneider Electric ATV212HU55M3X is a variable speed drive designed for three-phase asynchronous motors. This drive operates at a voltage range from 200V to 240V AC and is capable of delivering power up to 7.5 horsepower. It significantly reduces energy consumption, making it an eco-friendly choice for various applications.

• Rated power: up to 5.5 kW (7.5 hp)
• Protection Index: IP21
• Compatible with multiple communication protocols including Modbus and BACnet

Product Highlights

This drive is ideal for HVAC applications such as heating, ventilation, and air conditioning. It helps manage fluid systems effectively while ensuring compliance with international standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ATV212HU55M3X
• Net Weight: 6.1 kg
• Dimensions: 180 mm width, 232 mm height, 170 mm depth
• Output Voltage: Equal to input voltage 3-phase
• Country of Origin: Indonesia
• Warranty Length: 18 months
• Environmental Conditions: -10-40 degrees C without derating
• Certifications: CE, UL, CSA, C-Tick, NOM
