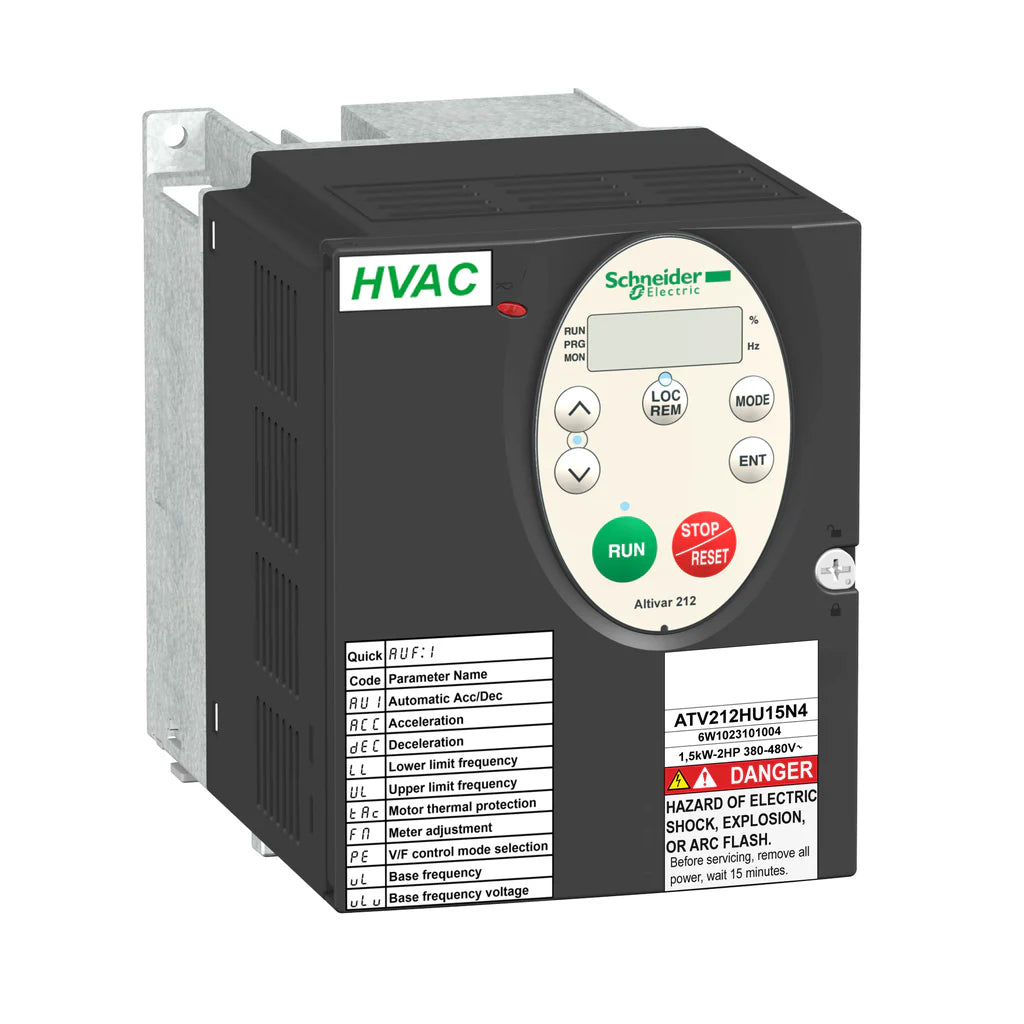

Schneider Electric ATV212HU15N4 Variable Speed Drive 2 Hp 3 Phase 480V

Product Description

The Schneider Electric ATV212HU15N4 is a variable speed drive for 3-phase asynchronous motors. It operates with a voltage range from 380V to 480V AC and a rated power of up to 1.5 kW or 2 hp. This model features an IP21 protection index and includes a built-in EMC filter.

• Reduces energy consumption by up to 70% compared to traditional systems.
• Immediate and disturbance-free operation without extra components like line chokes.
• Compatible with HVAC applications including heating, ventilation, and air conditioning.

Product Highlights

This drive is ideal for common fluid management tasks in commercial buildings, ensuring efficient performance in HVAC systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Model Number: ATV212HU15N4

Technical Specifications

• Rated Voltage: 380V to 480V AC
• Rated Power: 1.5 kW / 2 Hp
• Weight: 2 kg
• Dimensions: 107 mm wide, 143 mm high, 150 mm deep
• Communication Protocols: Modbus, BACnet, METASYS N2
• Environmental Conditions: Operates between -10°C to 40°C
• Standards Compliance: IEC/EN 61800-5-1, IEC/EN 61800-3
• Certifications: CE, UL, CSA, C-Tick, NOM
