Schneider Electric ATV212HD18M3X 200 to 240 VAC 25 Hp 3-Phase Open Type Variable Speed Drive

Product Description

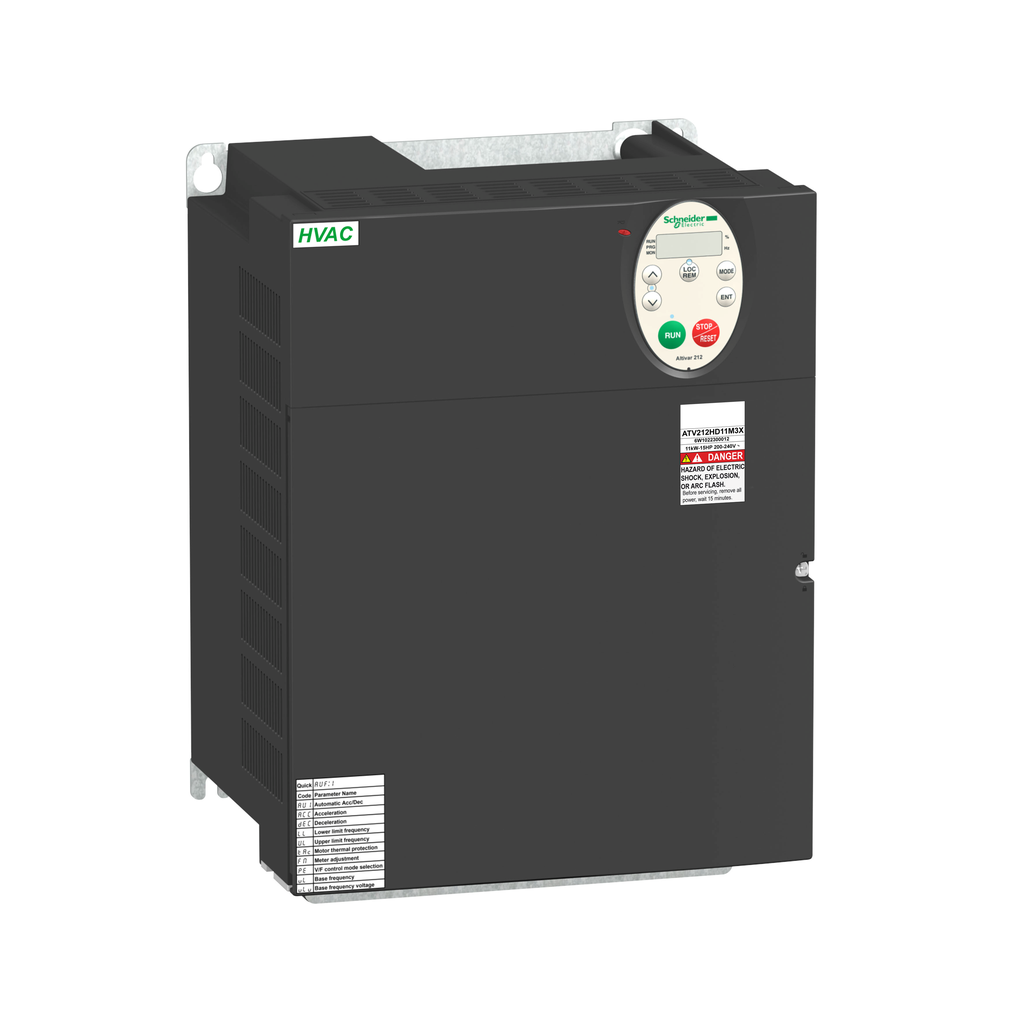

The Schneider Electric ATV212HD18M3X is a variable speed drive that operates on 200 to 240 VAC and provides up to twenty-five horsepower in three-phase systems. Designed for 3-phase asynchronous motors, this drive features an IP21 protection index.

• Rated power of eighteen point five kW / twenty-five hp.
• Eco-energy design reduces consumption by up to seventy percent.
• Conforms to international standards including IEC/EN 61800-5-1 and IEC/EN 61800-3.

Product Highlights

This drive minimizes energy usage and ensures stable performance with advanced cable temperature rise technology. It is particularly useful in HVAC applications such as heating, ventilation, air conditioning, and pumping.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• MPN: ATV212HD18M3X
• Weight: 11.55 kg
• Length: 9.06 inches
• Width: 9.65 inches
• Height: 12.99 inches
• Input Voltage: 200 to 240 V AC
• Output Voltage: <= power supply voltage
• Number of Phases: 3 Phase
• Certifications: CE, UL, CSA, C-Tick, NOM
