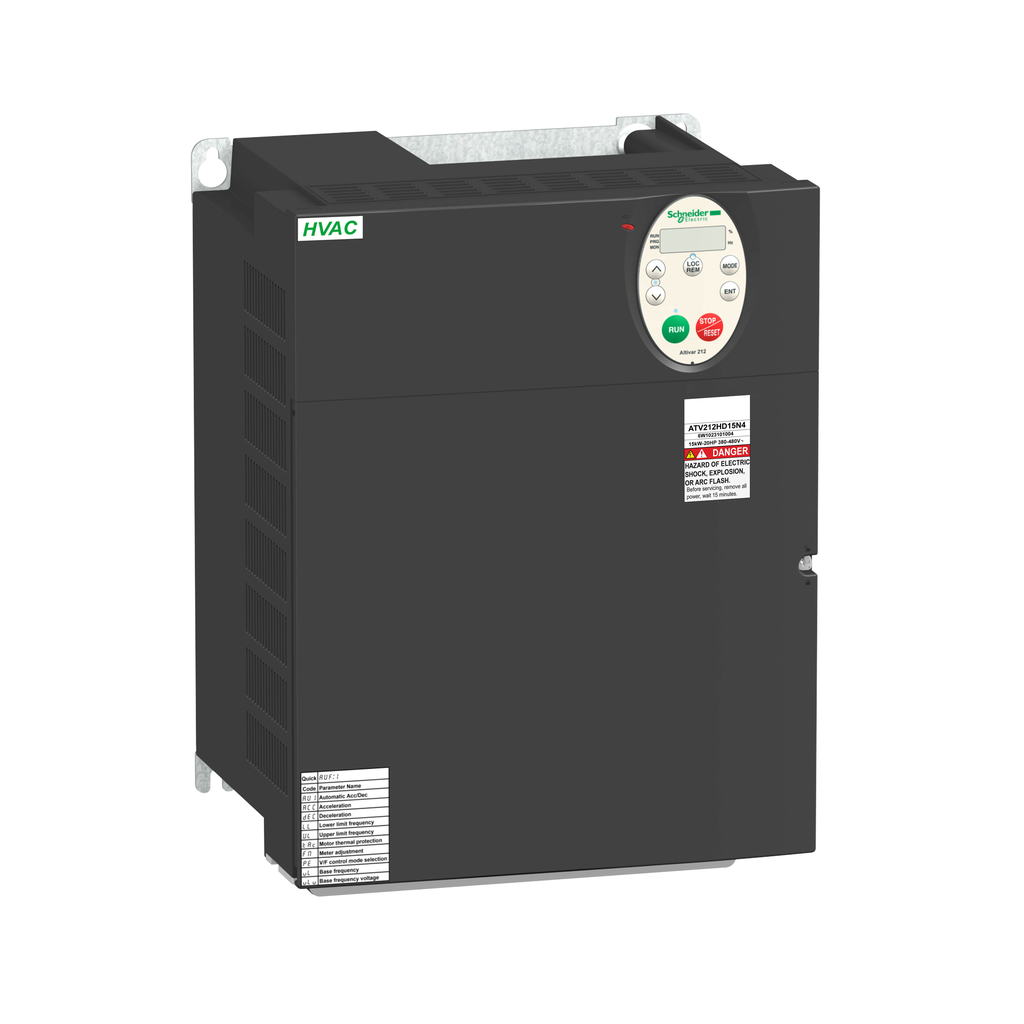

Schneider Electric ATV212HD15N4 Speeddrive 20HP 460V 3PH

Product Description

The Schneider Electric ATV212HD15N4 is a variable speed drive designed for 3-phase asynchronous motors. It operates at a rated power of fifteen kilowatts or twenty horsepower and is compatible with power supply voltages ranging from three hundred eighty to four hundred eighty volts AC.

This drive includes a built-in EMC filter with a protection index of IP21, which supports its use in a variety of industrial and HVAC applications. Its energy-efficient design reduces consumption by up to seventy percent when compared to traditional control systems. The Altivar 212 features innovative technology that minimizes cable temperature rise, allowing for smooth, uninterrupted operation without needing additional components like line or DC chokes.

With a weight of eleven point sixty-five kilograms and dimensions of two hundred forty-five millimeters in width, three hundred thirty millimeters in height, and one hundred ninety millimeters in depth, it fits well into tight spaces. The drive is suitable for most fluid management tasks, including but not limited to heating, ventilation, air conditioning, and pumping systems.

• Conforms to IEC/EN 61800-5-1 and IEC/EN 61800-3 standards.
• CE, UL, CSA, and NOM certified.
• Optional motor chokes available to extend cable lengths and reduce terminal disturbances.

Product Highlights

Designed for HVAC fluid management systems, the ATV212 is flexible and integrates easily with various building management systems, supporting communication protocols like Modbus, METASYS N2, APOGEE FLN P1, and BACnet.

Product Information

Standard Information

• Catalog Number: ATV212HD15N4
• Manufacturer: Schneider Electric

Technical Specifications

• HP Rating: 20 HP
• Power Rating: 15 kW
• Input Voltage: 380-480 VAC
• Protection Index: IP21
• Weight: 11.65 kg
• Dimensions: 245 mm x 330 mm x 190 mm
• Enclosure Type: Open IP20
• Country of Origin: Indonesia
