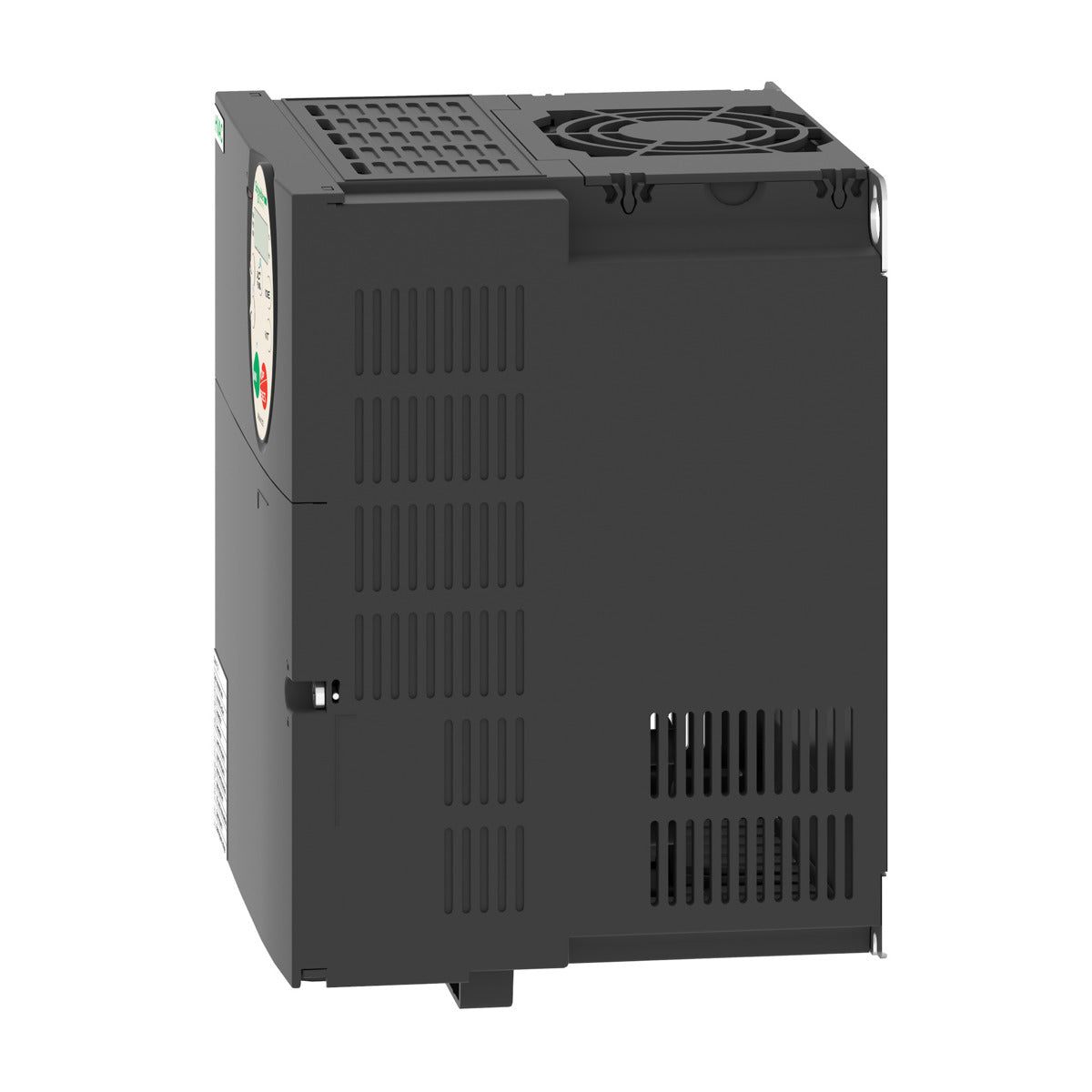

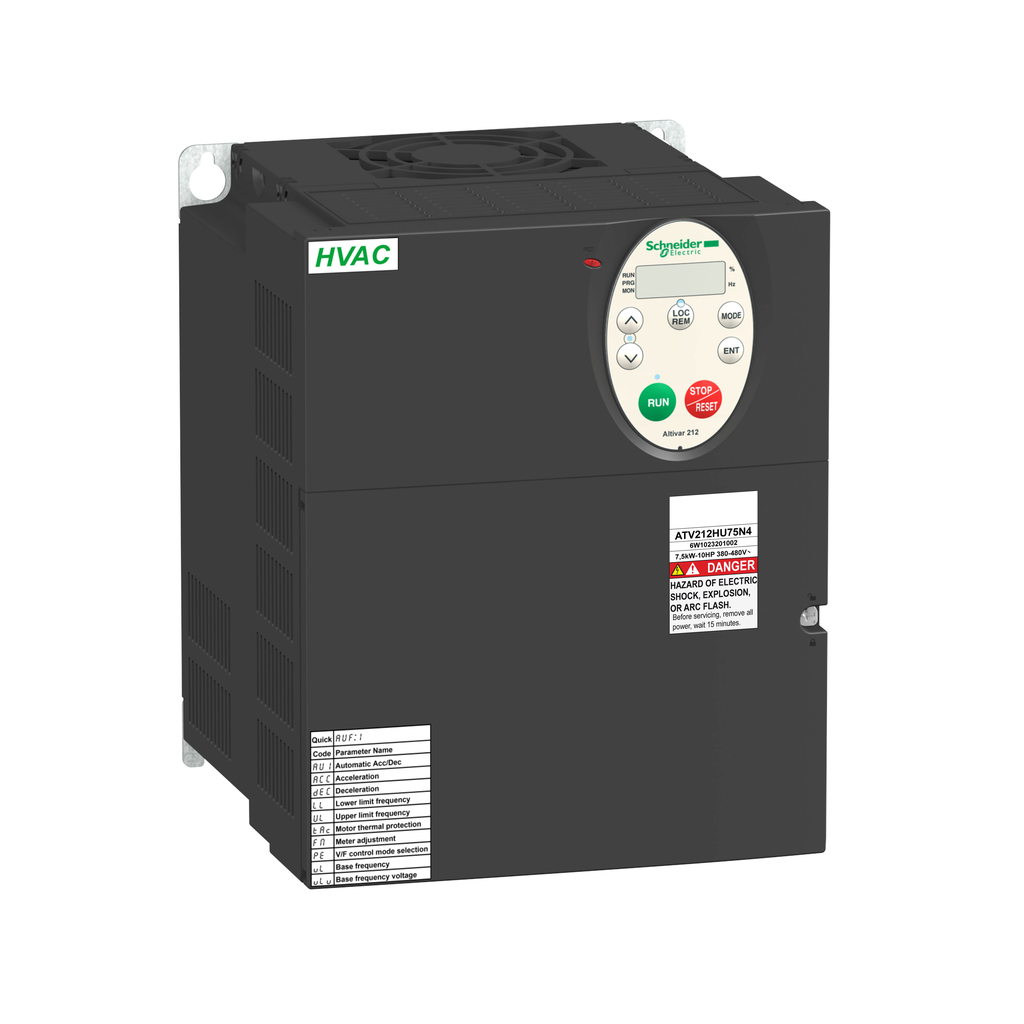

Schneider Electric ATV212HD11N4 Square D 15 Hp 3-Phase Open Type Variable Speed Drive

Product Description

Schneider Electric designs the ATV212HD11N4 Variable Speed Drive for 3-phase asynchronous motors. This variable speed drive functions at a power rating of up to 11kW or 15 horsepower, operating efficiently within a voltage range of 380 to 480 VAC. It includes IP21 protection and a built-in EMC filter to minimize electromagnetic interference.

The Eco-energy design significantly lowers energy usage, achieving a reduction of up to seventy percent in energy consumption compared to traditional systems. The innovative cable temperature rise reduction technology ensures immediate operation without disturbances, eliminating the need for additional components to manage current harmonics.

Designed specifically for HVAC applications such as heating, ventilation, air conditioning, and pumping, the ATV212HD11N4 adheres to global standards IEC/EN 61800-5-1 and IEC/EN 61800-3.

• Weight: 6.45kg
• Dimensions: 180 mm wide, 232 mm high, 170 mm deep

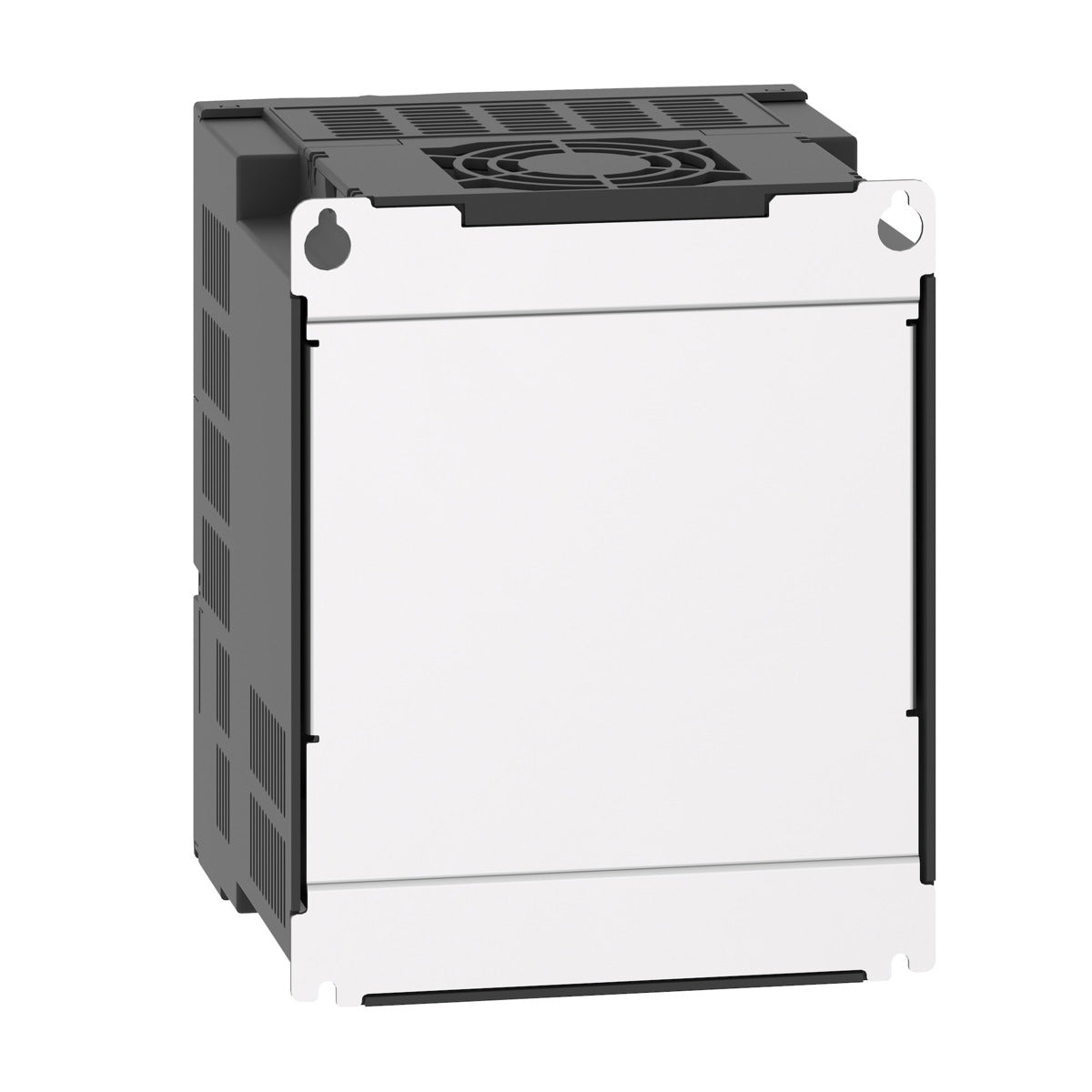

• Mount vertically with four mounting holes for secure installation.

Product Highlights

This variable speed drive integrates multiple communication protocols, including Modbus, BACnet, and METASYS N2, for easy integration with building management systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• Catalog Number: ATV212HD11N4
• Power Rating: 11 kW
• Horse Power: 15 HP
• Output Voltage: 3-Phase
• Weight: 14.22 lb
• Height: 9.13 inches
• Width: 7.09 inches
• Depth: 6.69 inches
