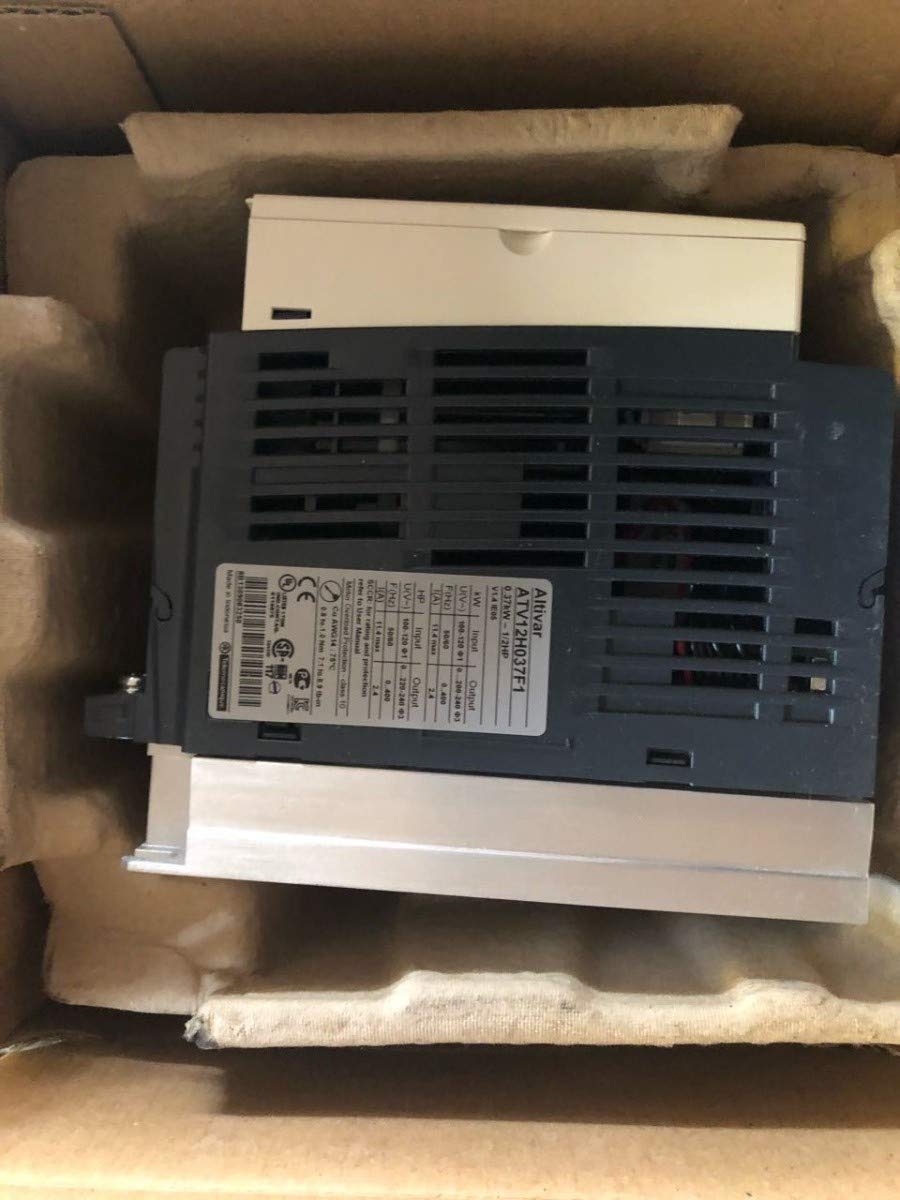

Schneider Electric ATV12H037F1 Variable Speed Drive 0.5 Hp 115 VAC 1-Phase

Product Description

The Schneider Electric ATV12H037F1 Variable Speed Drive offers reliable control for various industrial applications. This drive ensures optimal performance for electric motors in simple machinery setups.

• Rated power up to 0.37 kW
• Rated voltage from 100V to 120V AC
• Modbus communication protocol included

Product Highlights

This variable speed drive is suitable for applications such as conveyors, pumps, extractors, and treadmills. The drive features advanced functions like PID control, fly catching, and motor control settings with a fan-cooled enclosure and option for an EMC filter.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: ATV12H037F1
• Manufacturer: Square D
• Country of Origin: Indonesia
• Warranty: 18 months

Technical Specifications

• Rated Power: 0.37 kW / 0.5 Hp
• Rated Voltage: 115 VAC
• Dimensions: 4.77 in (Depth) x 2.83 in (Width) x 5.63 in (Height)
• Mounting Type: Cabinet Mount
• Output Voltage: ...240 V
• Output: 230VAC 3-Phase
• Weight: 1.76 lb
• Certifications: IEC, UL, CSA, GOST, KC, NOM, RCM
• Environmental Conditions: -10-40 degrees Celsius
• Storage Temperature: -25-70 degrees Celsius
• Modbus Communication: RJ45
• Applications: Asynchronous motors, simple machines
• Warranty Length: 18 months
