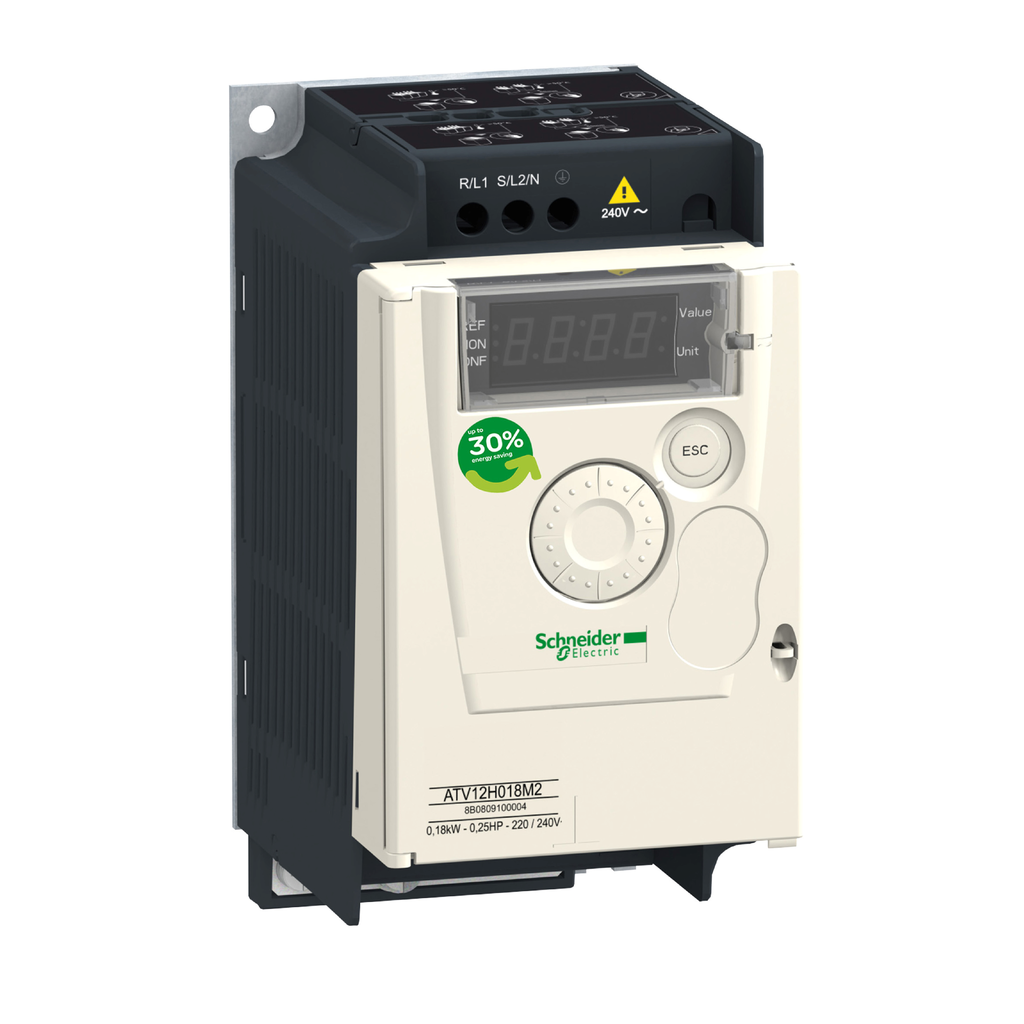

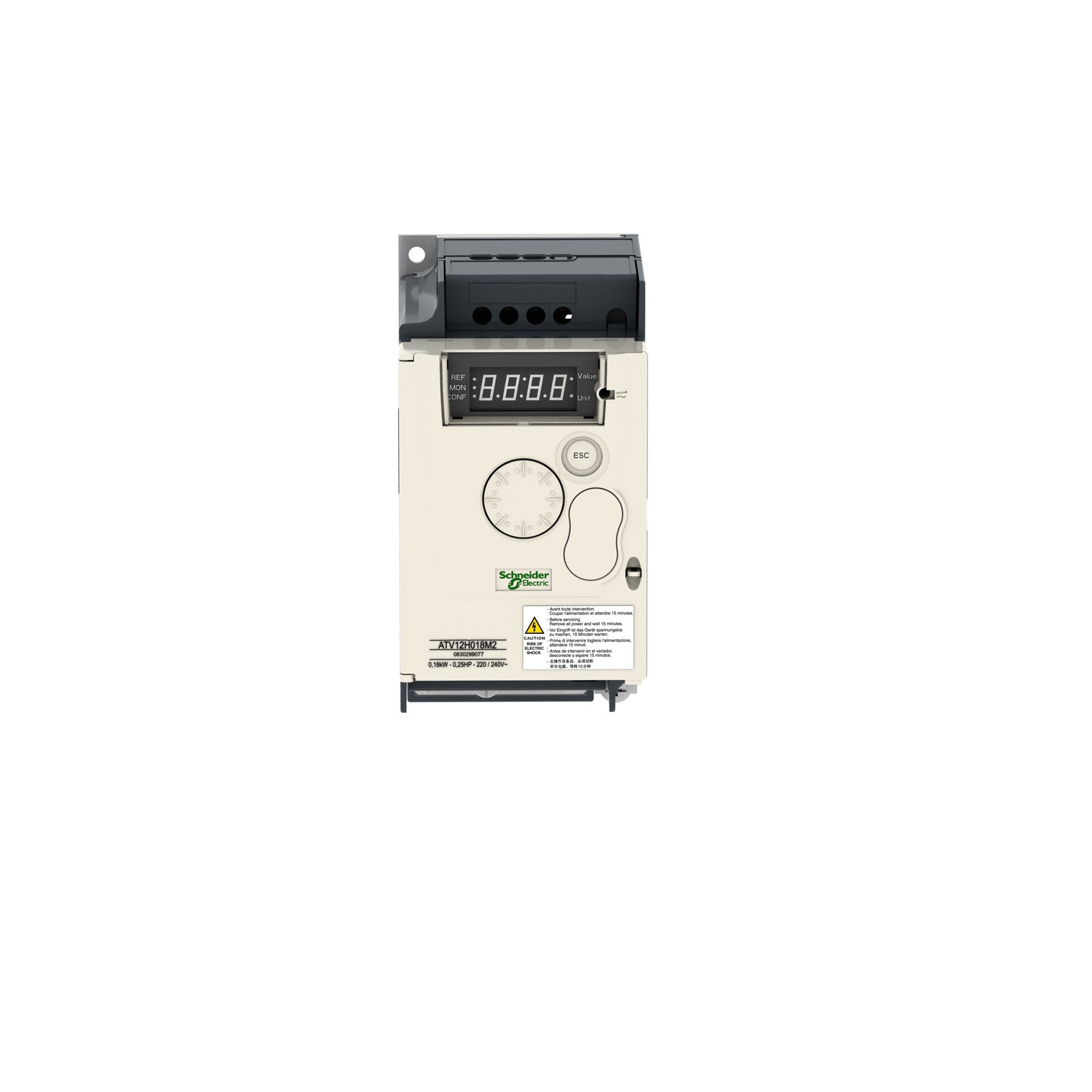

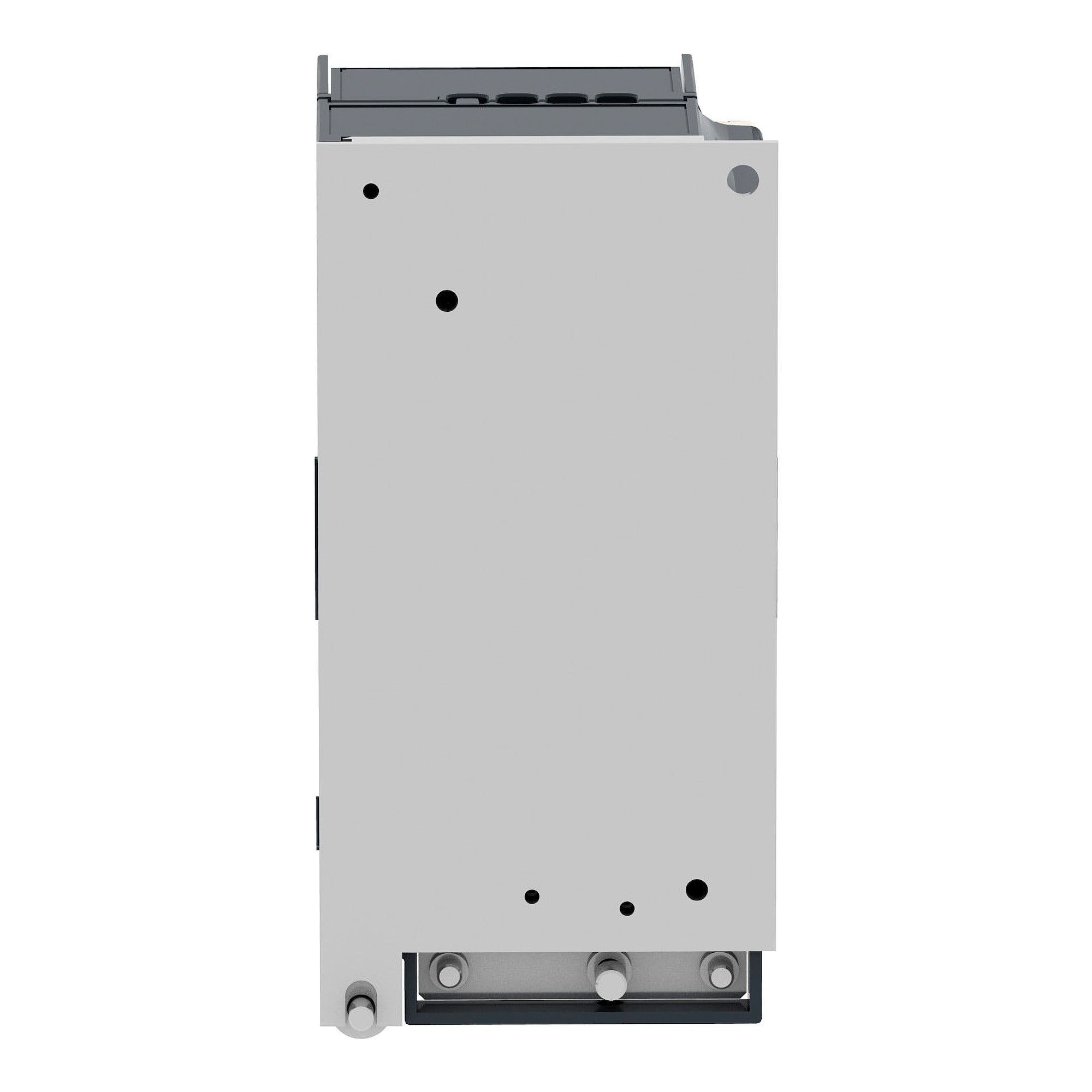

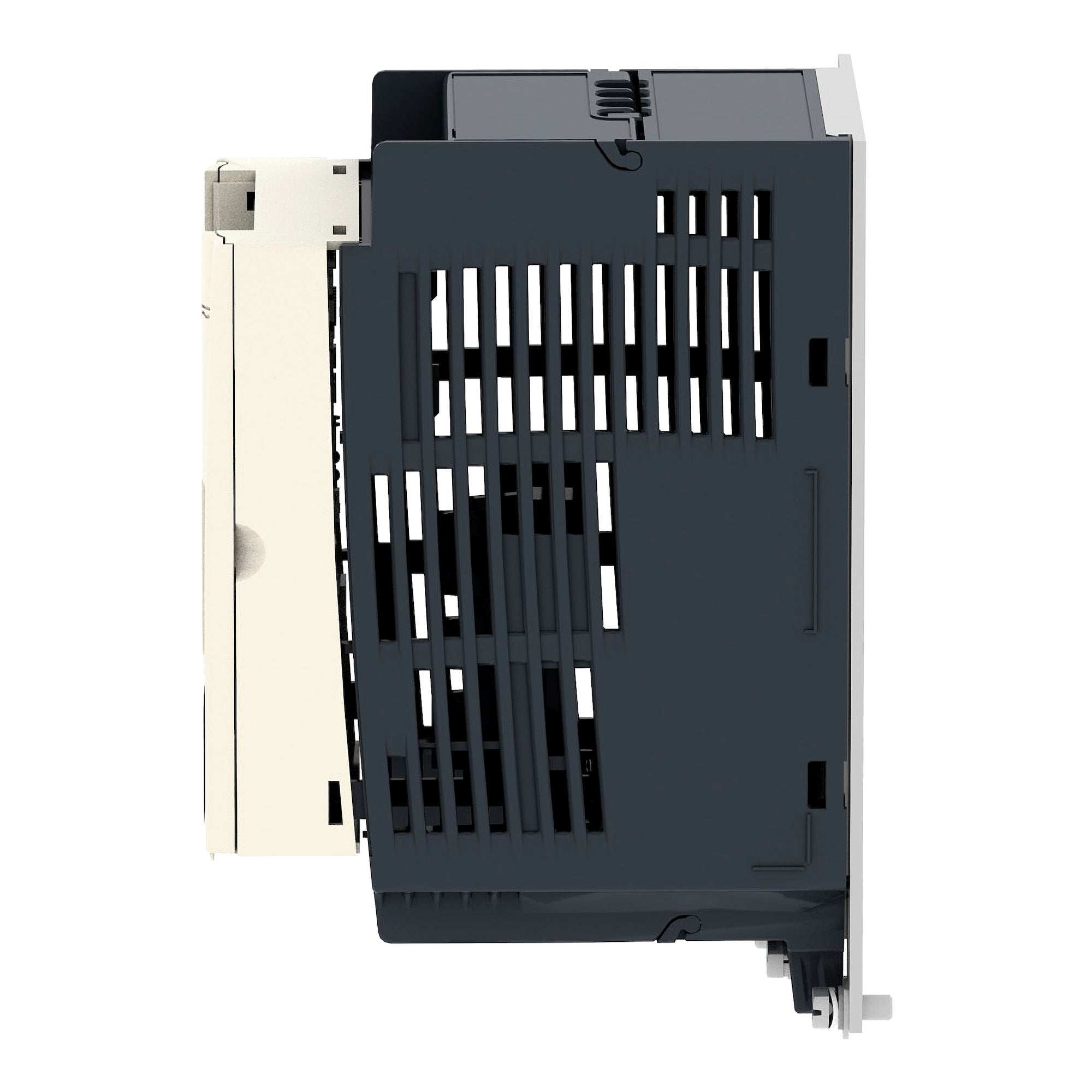

Schneider Electric ATV12H018M2 variable speed drive 0.18kW 200 to 240V 1 phase

Product Description

The Schneider Electric ATV12H018M2 is a variable speed drive designed for commercial equipment and simple machines. This model operates at a power rating up to 0.18 kilowatts and a voltage range from two hundred to two hundred forty volts AC. The drive features a heatsink, making it suitable for typical environments, along with a fan-cooled enclosure. It includes advanced PID control and catch-on-the-fly functions for easy motor control settings.

• Rated power up to 0.18 kW / 0.25 hp
• Compatible with Modbus communication protocol
• Energy-saving operations with up to 30% efficiency

Product Highlights

This drive integrates easily into industrial applications, including HVAC systems, conveyors, pumps, and basic access barriers. It complies with international standards such as IEC and UL, ensuring reliability and safety. The SoMove software is available to simplify configuration management and reduce maintenance downtime.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: ATV12H018M2

Technical Specifications

• Power Consumption: 0.18 kW
• Output Voltage: 230VAC 3-phase
• Dimensions: 4.02 in (length) x 2.84 in (width) x 5.63 in (height)
• Weight: 1.54 lb
• Mounting Type: Cabinet Mount
• Country of Origin: Indonesia
• Warranty Length: 18 months
• Environmental Conditions: Operating temperature -10°C to 40°C
