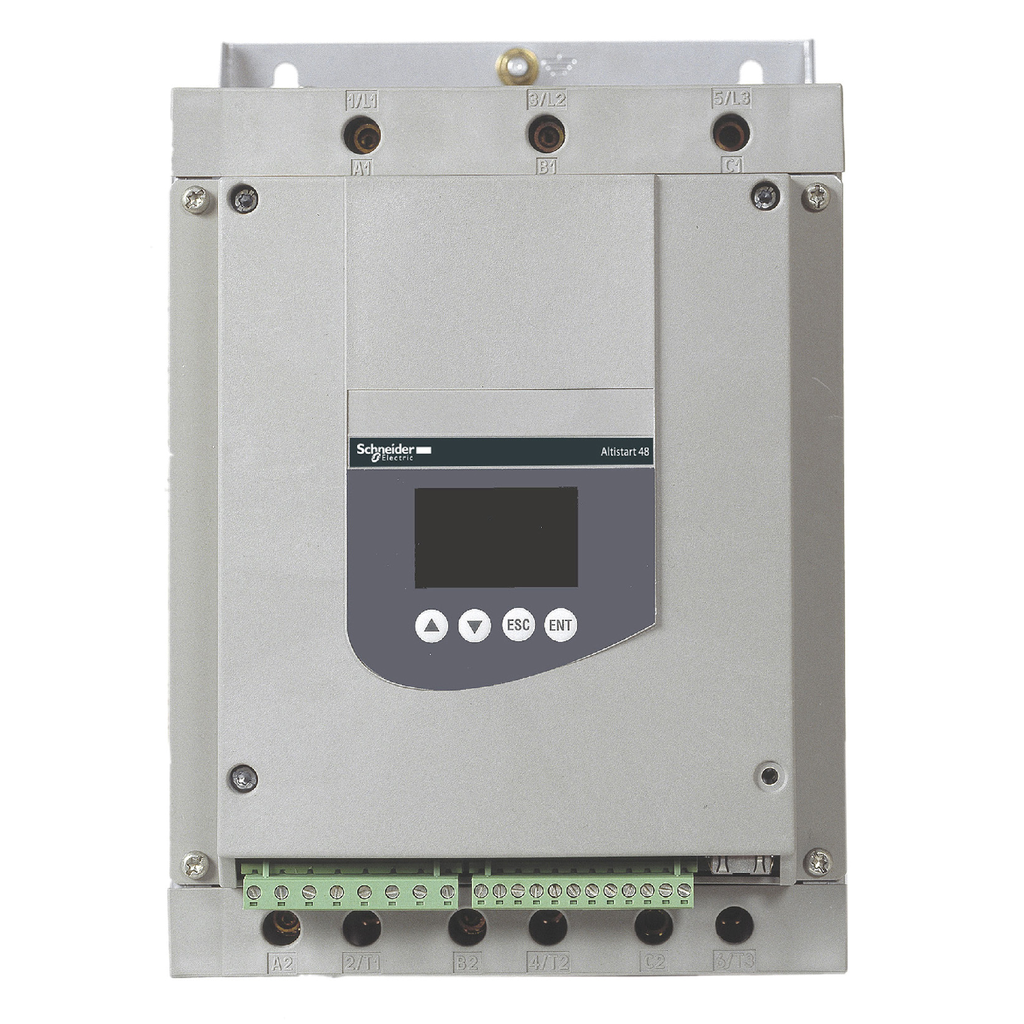

Schneider Electric ATS48D47Y Soft Starter 208 to 690 VAC 47 Amp 18.5 kW

Product Description

The Schneider Electric ATS48D47Y is a soft starter designed for three-phase asynchronous motors. This unit operates at a voltage range of two hundred eight to six hundred ninety volts AC and is rated for forty-seven amps. This soft starter utilizes six thyristors to enable torque-controlled starting and stopping.

• Soft start and stop functionality
• Machine and motor protection options
• Compliant with IEC/EN 60947-4-2 standard

Product Highlights

This soft starter minimizes mechanical stress during start-up and enhances control over hydraulic transitions. The single acceleration ramp allows for quick adjustments regardless of load conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ATS48D47Y
• Weight: 10.80 lb
• Depth: 190 mm
• Width: 160 mm
• Height: 275 mm
• Voltage Range: 208V to 690V AC
• Maximum Amperage: 47A
• Country of Origin: Indonesia
