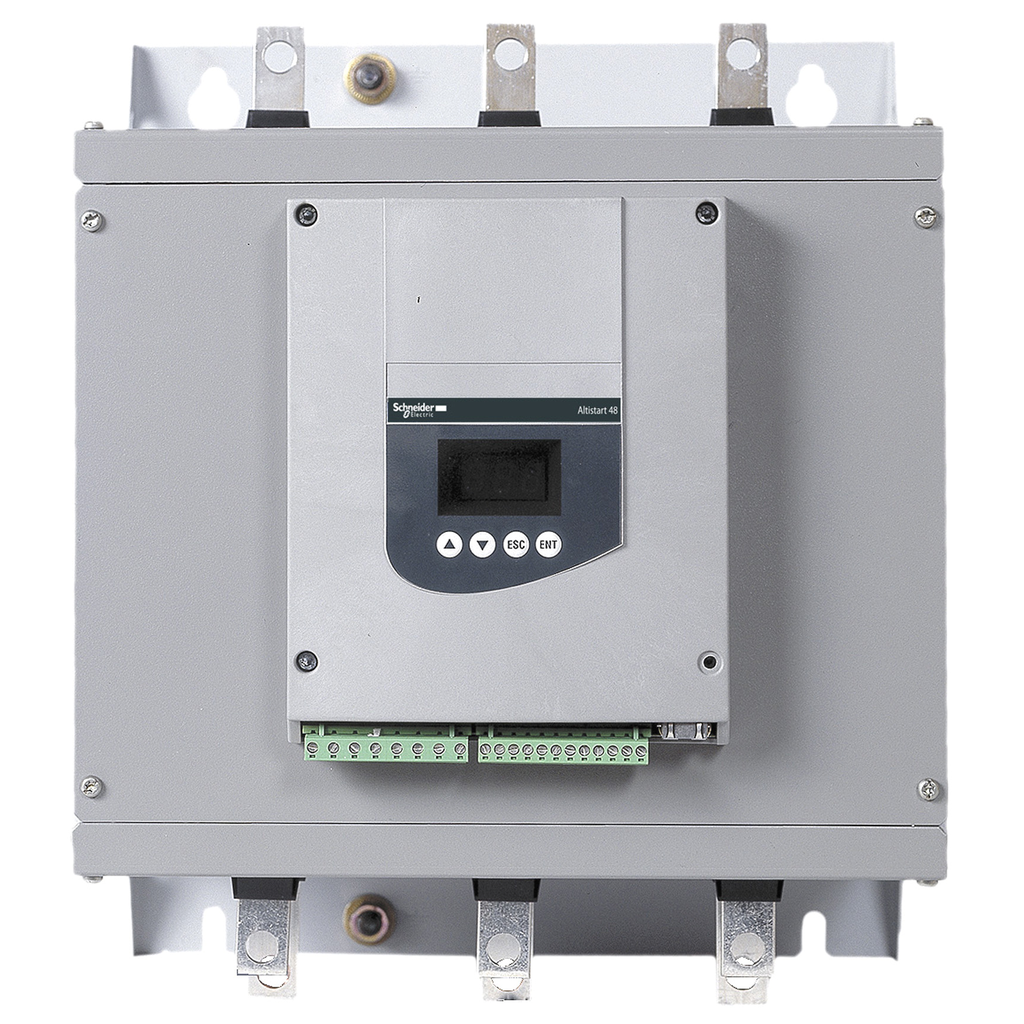

Schneider Electric ATS48C21Y Soft Starter 210 Amp 208 to 690 VAC

Product Description

The Schneider Electric ATS48C21Y is a soft start and stop controller with six thyristors. This product is designed for controlling the torque of three-phase asynchronous motors. The unit provides soft starting and deceleration functions as well as machine and motor protection. It operates with a voltage range of 208 to 690 volts AC and supports up to 210 amperes.

• Torque control minimizes mechanical stress during startup.
• Compatible with multiple communication protocols including Modbus and Ethernet.
• Designed for motors up to 200 horsepower in standard applications.

Product Highlights

This soft starter is suitable for various applications such as centrifugal machines, pumps, fans, compressors, and conveyors. It is compliant with the IEC/EN 60947-4-2 standard and certified by several international bodies including CE and UL.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ATS48C21Y
• Voltage: 208 to 690 VAC
• Amperage: 210 A
• Dimensions: 12.6 inches wide, 15 inches high, 10.4 inches deep
• Weight: 40.12 lbs
• Country of Origin: Indonesia
• Certifications: CE, UL, CSA, DNV, C-Tick, GOST, CCC, NOM
• Warranty: 18 months
