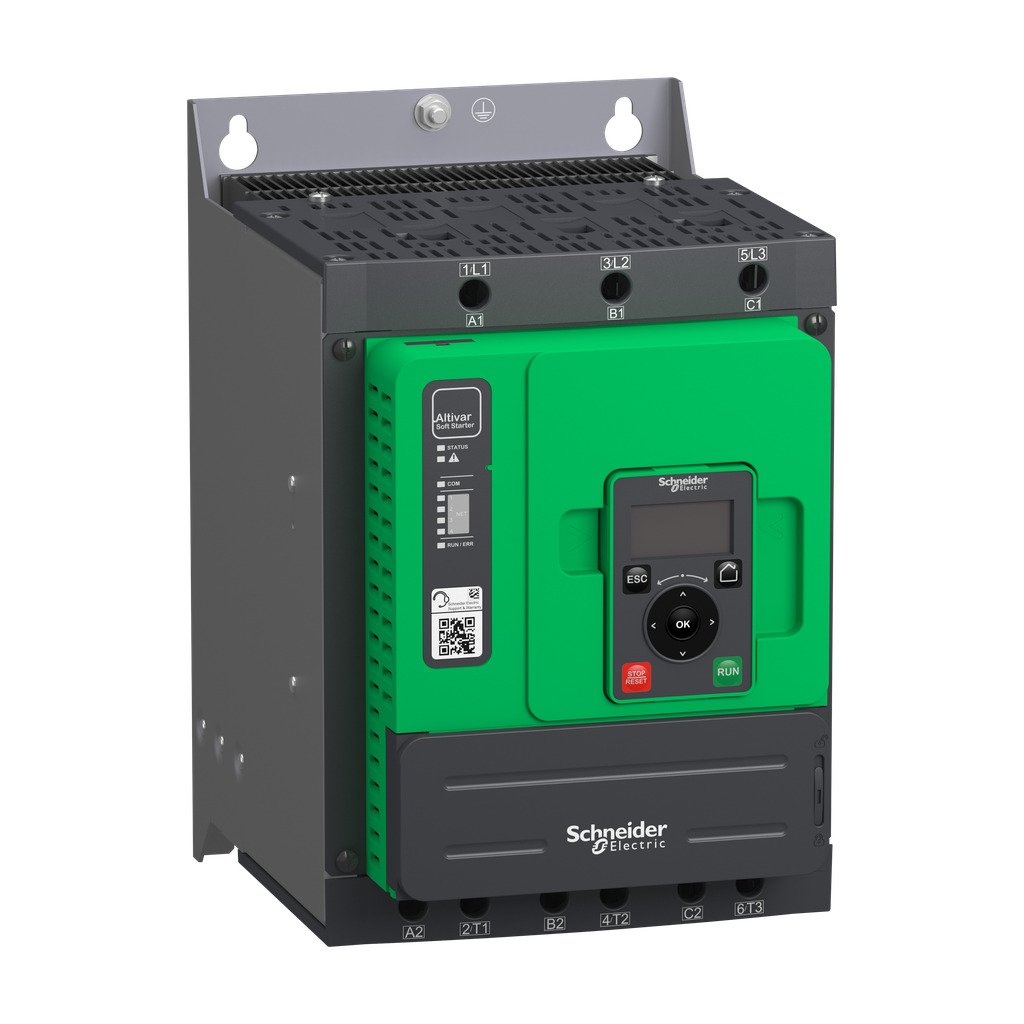

Schneider Electric ATS480D75Y Altivar Soft Starter 75 A 208...690V AC control supply 110...230V AC

Product Description

The Schneider Electric ATS480D75Y is a soft starter designed for controlling motors. It operates within a voltage range of 208 to 690 volts AC and supports control voltage ratings of 110 to 230 volts AC. This unit is suitable for various applications requiring reduced start-up currents and smooth acceleration. The device features an IP20 degree of protection, ensuring its durability in industrial settings.

• Compatible with multiple motor types and configurations.
• Offers a frequency range from fifty to sixty Hertz.
• Designed with an operating temperature range of negative ten to forty degrees Celsius.

Product Highlights

The ATS480D75Y soft starter is excellent for HVAC applications, pumps, and conveyors, allowing users to manage power demands efficiently.

Product Information

Standard Information

• Catalog Number: ATS480D75Y
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage Rating: 208...690 V - 15...10 %
• Control Voltage Rating: 110...230 V AC 50/60 Hz - 15...10 %
• Frequency Range: 50...60 Hz - 20...20 %
• Horsepower: 20.0 hp at 208 V normal duty; 15.0 hp at 208 V heavy duty; 25.0 hp at 230 V normal duty; 20.0 hp at 230 V heavy duty; 50.0 hp at 460 V normal duty; 40.0 hp at 460 V heavy duty; 60.0 hp at 575 V normal duty; 50.0 hp at 575 V heavy duty
• Dimensions: Width - 7.48 inches; Height - 11.42 inches; Depth - 9.72 inches
• Weight: 18.30 pounds
• Degree of Protection: IP20
• Operating Temperature: -10...40 °C (14...104 °F) without derating when not bypassed
• Country of Origin: Indonesia
