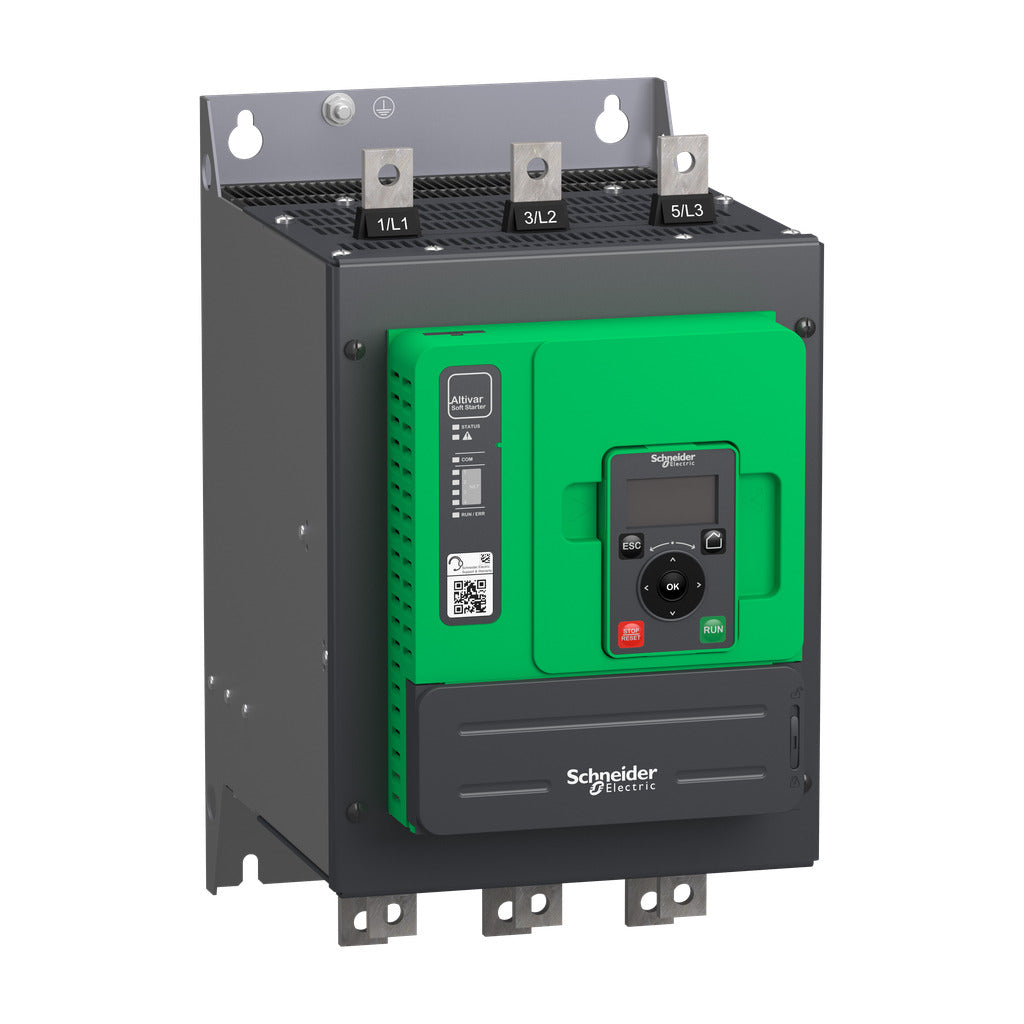

Schneider Electric ATS480C14Y Altivar Soft Starter 140 A 208...690V AC Control Supply 110...230V AC

Product Description

Schneider Electric ATS480C14Y is a soft starter designed for industrial applications. It has a current rating of one hundred forty amps and operates within a voltage range of two hundred eight to six hundred ninety volts AC. The control supply range is from one hundred ten to two hundred thirty volts AC. This device is essential for controlling motor start-up and reducing the inrush current, which can prolong the lifespan of motors and connected equipment.

• Rated for use with motors up to one hundred twenty-five hp.
• Frequency range is 50 to 60 Hz.
• Provides IP20 protection against dust and water.

Product Highlights

This soft starter is suitable for various motor applications, ensuring smooth start and stop operations. It features comprehensive protection and control capabilities to enhance motor performance.

Product Information

Standard Information

• Catalog Number: ATS480C14Y
• Manufacturer: Schneider Electric

Technical Specifications

• Control Voltage Rating: 110...230 V AC 50/60 Hz - 15...10 %
• Degree of Protection: IP20
• Frequency Range: 50...60 Hz - 20...20 %
• Horsepower Ratings: 40.0 hp at 208 V normal duty; 30.0 hp at 208 V heavy duty; 50.0 hp at 230 V normal duty; 40.0 hp at 230 V heavy duty; 100.0 hp at 460 V normal duty; 75.0 hp at 460 V heavy duty; 125.0 hp at 575 V normal duty; 100.0 hp at 575 V heavy duty
• Voltage Rating: 208...690 V - 15...10 %
• Weight: 27.34 lbs
• Dimensions: Width 7.87 inches, Height 13.39 inches, Depth 10.71 inches
• Operating Temperature: -10...40 °C (14...104 °F) without derating
