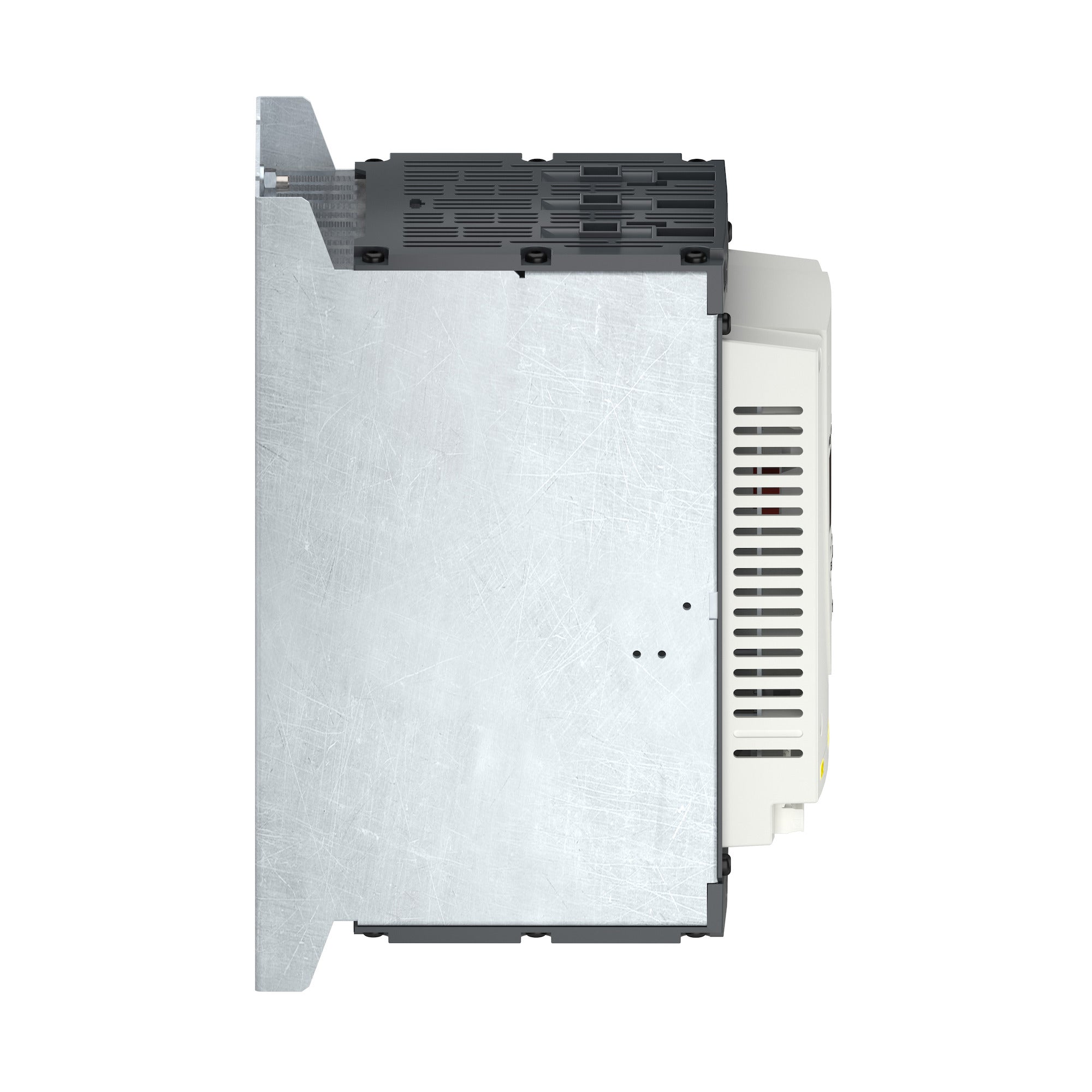

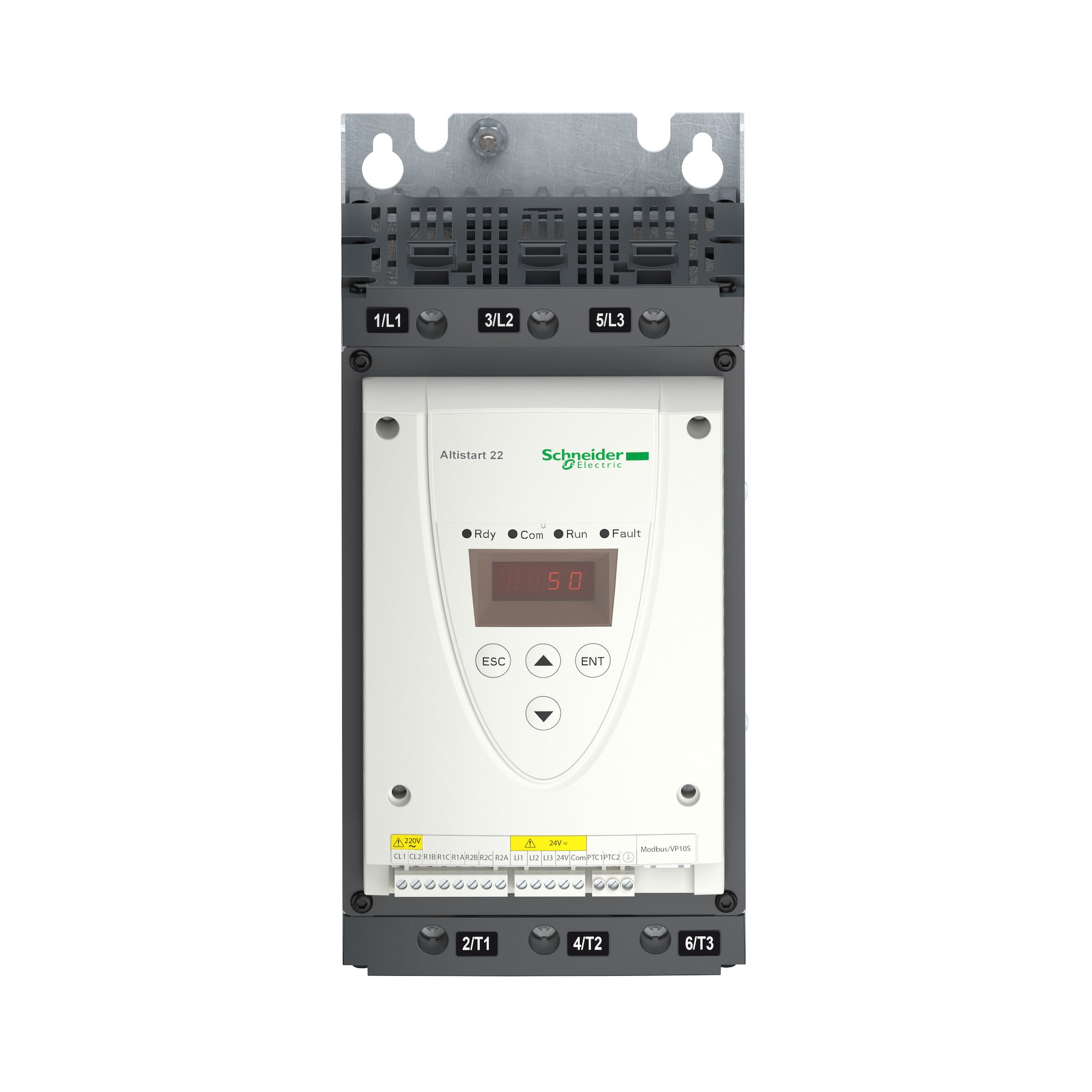

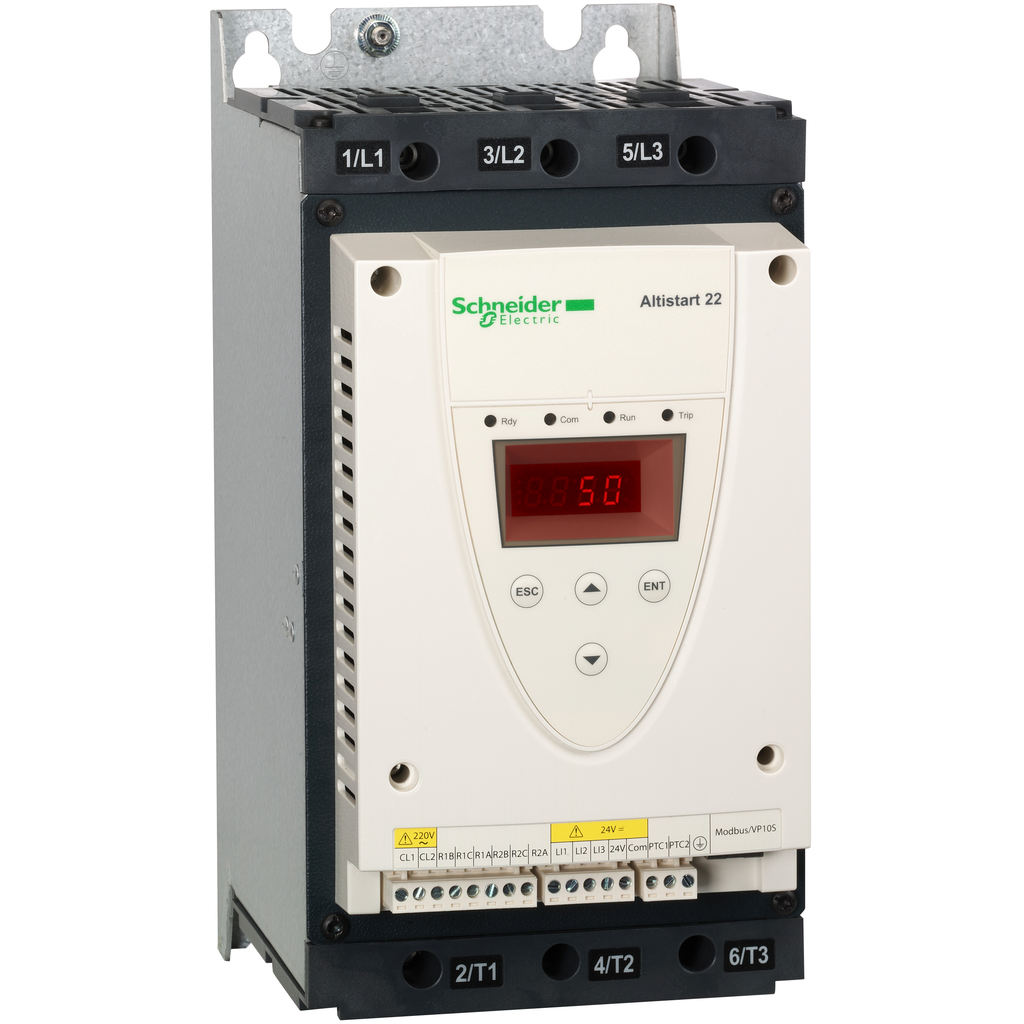

Schneider Electric ATS22D88S6U Soft Starter 110 VAC 88 Amp 37 kW

Product Description

The Schneider Electric ATS22D88S6U is a soft starter designed for 3-phase asynchronous motors in supply line connections. This unit has a rating of 88 amps and supports a rated power range from twenty-five horsepower to seventy-five horsepower. It operates with a voltage rating between two hundred thirty volts to five hundred seventy-five volts AC. The ATS22D88S6U is suitable for various applications including centrifugal pumps, piston pumps, fans, and material handling systems.

• Integrated bypass reduces noise and heat dissipation.
• Compatibility with SoMove software simplifies configuration and maintenance.
• Supports mounting in various machine frames due to its slim form factor.

Product Highlights

This soft starter provides smooth starting for machinery, minimizing mechanical stress and extending equipment life.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ATS22D88S6U
• Voltage Rating: 110 V - 15...10 % 50/60 Hz
• Amperage: 88 A
• Enclosure: IP20
• Country of Origin: Indonesia
• Weight: 26.46 lb
• Dimensions: 8.15 in (Length) x 5.71 in (Width) x 11.61 in (Height)
• Warranty: 18 months
• Connection: In the motor supply line
