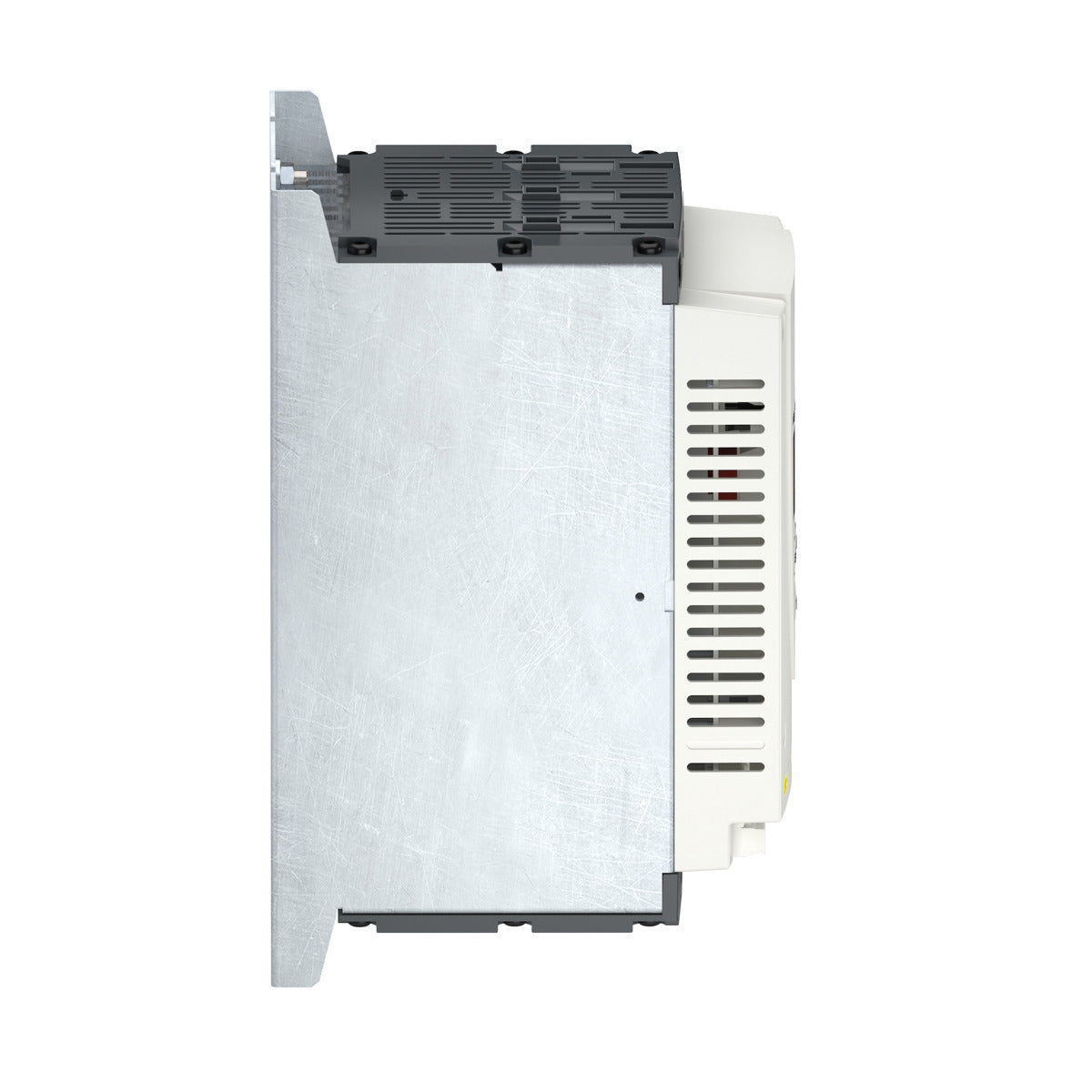

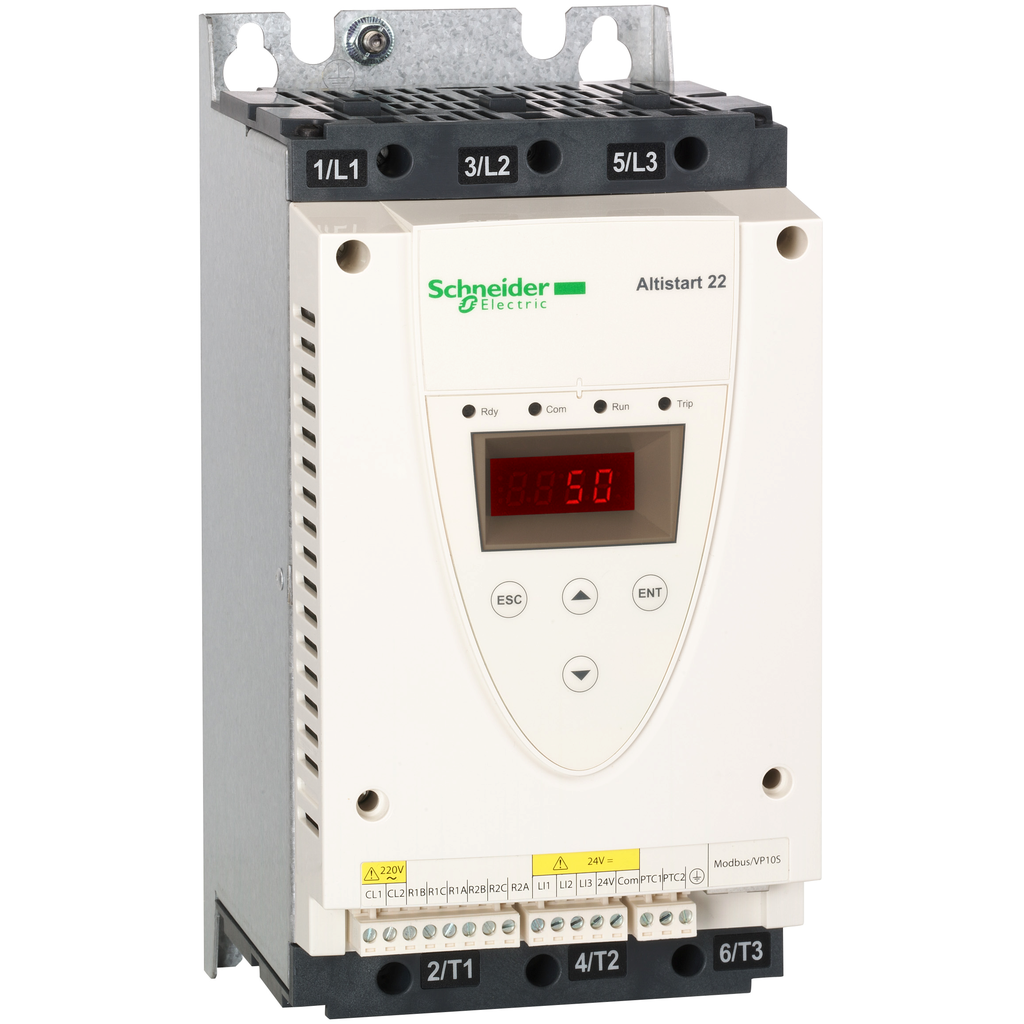

Schneider Electric ATS22D47S6U soft starter for asynchronous motors 47A 15HP to 40HP 230V to 575V AC

Product Description

The Schneider Electric soft starter, MPN ATS22D47S6U, is designed for use with 3-phase asynchronous motors. It efficiently manages voltage and current to ensure a smooth start for your equipment. This unit is rated for 47 amps, suitable for motors with power ranging from fifteen to forty horsepower, and compatible with voltages between two hundred thirty and five hundred seventy-five volts AC.

• Integrated bypass reduces noise and heat dissipation.
• Compatible with SoMove software for easy configuration and installation.
• Compact design allows mounting in various machine frames.

Product Highlights

This soft starter is ideal for inductive load applications, including pumps, fans, and material handling systems. Its advanced features prevent mechanical stress during startup, extending the life of your machinery.

Product Information

Standard Information

• Catalog Number: ATS22D47S6U
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage Range: 230V to 575V AC
• Amperage Rating: 47A
• Power Rating: 15HP to 40HP
• Dimensions: 130 mm Width, 169 mm Depth, 265 mm Height
• Weight: 15.43 lb (7 kg)
• Operating Temperature: -10 to 40 degrees C
• Enclosure Rating: IP20
• Warranty: 18 months
