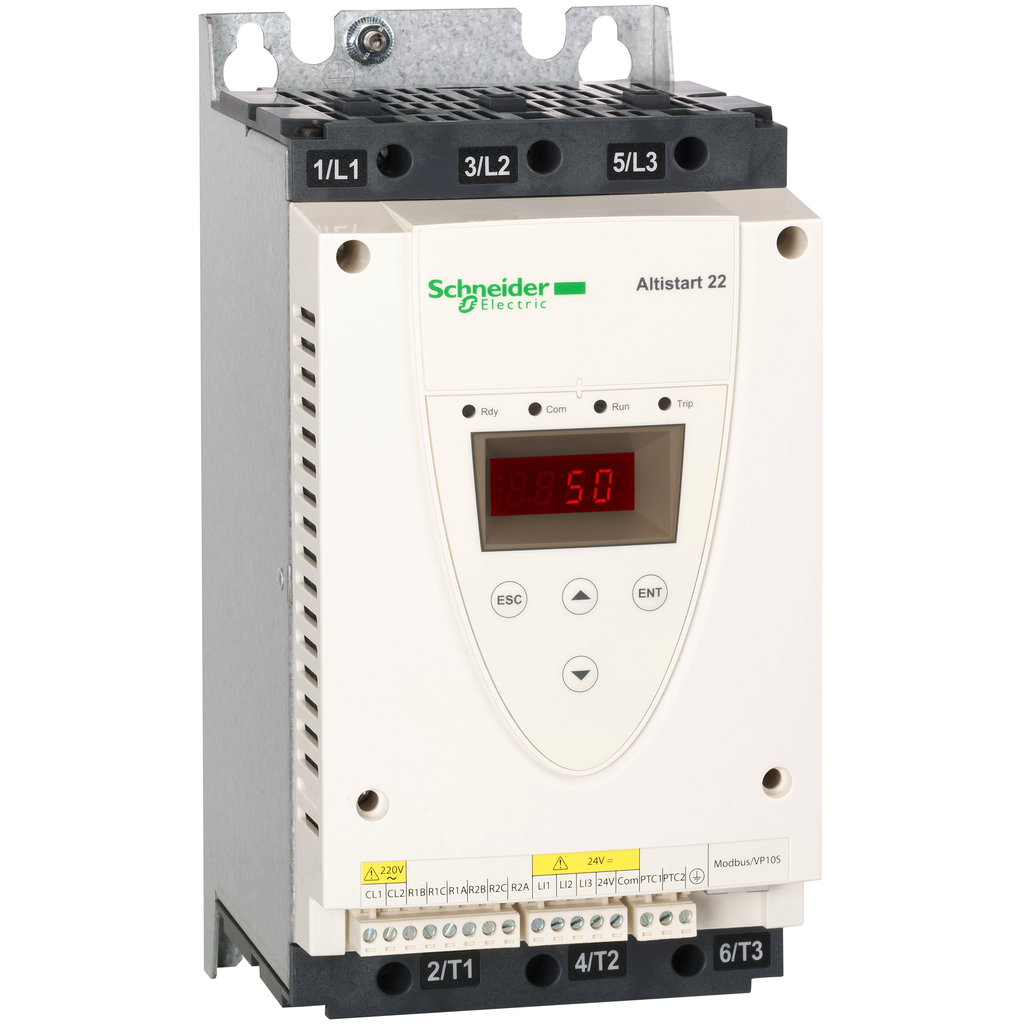

Schneider Electric ATS22D32S6U 110 VAC 32 Amp 11 kW Soft Starter

Product Description

The Schneider Electric ATS22D32S6U is a soft starter designed for 3-phase asynchronous motors. It operates with a current rating of thirty-two amps and supports motors with a power range from seven point five to twenty-five horsepower. It is compatible with supply voltages from two hundred thirty volts to five hundred seventy-five volts AC.

• Ideal for use with centrifugal and piston pumps, fans, screw compressors, and material handling systems.
• Slim design allows for easy installation in various machine frames.
• Integrated bypass feature minimizes noise and heat generation.

Product Highlights

This soft starter enhances machine operation by providing smooth startup, which reduces mechanical strain and extends service life.

Product Information

Standard Information

• Catalog Number: ATS22D32S6U
• Brand: Schneider Electric

Technical Specifications

• Voltage Range: 208 to 575 volts
• Amperage: 32A
• Dimensions: 130 mm width, 169 mm depth, 265 mm height
• Weight: 15.43 lb
• Enclosure Rating: IP20
• Number of Phases: 3 Phase
• Country of Origin: Indonesia
• Warranty Period: 18 months
