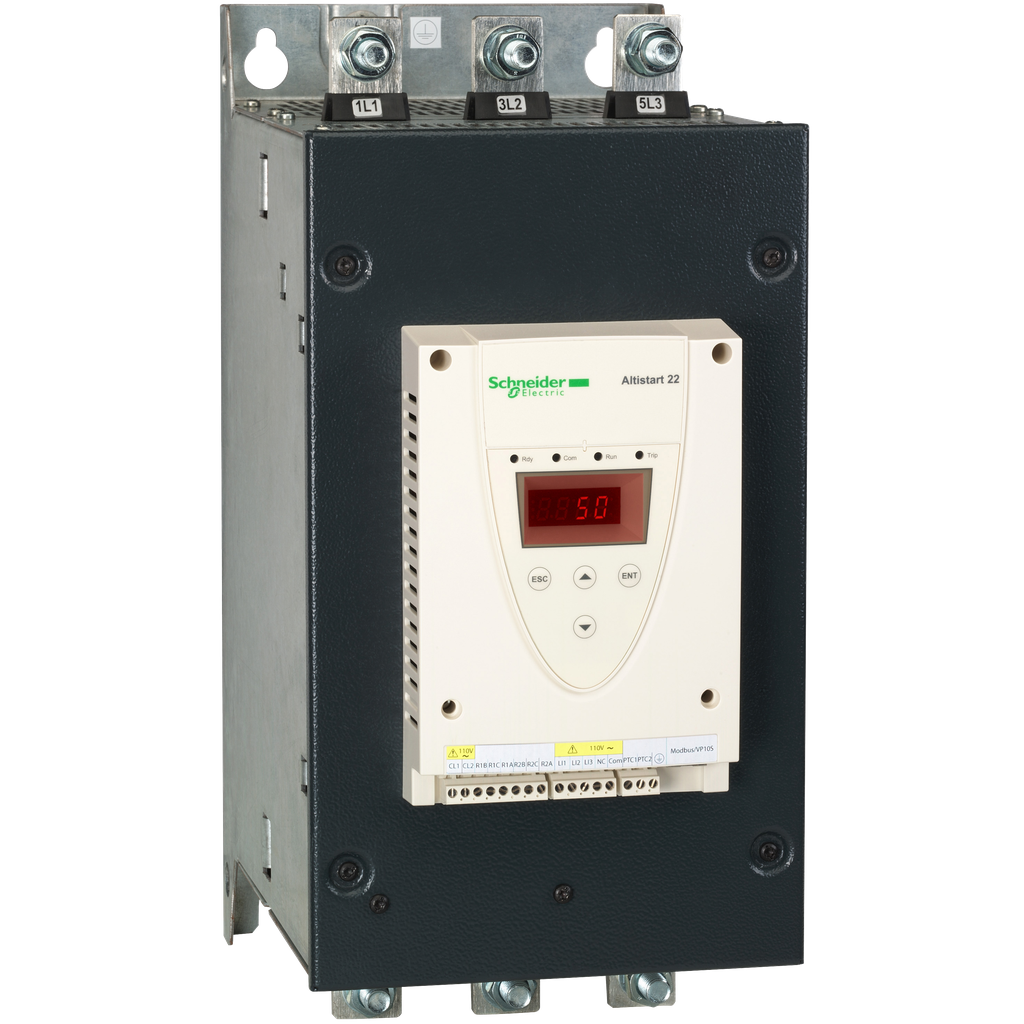

Schneider Electric ATS22C32S6U SQD Soft Starter for Asynchronous Motors 320A (Power Rating 100HP to 300HP)

Product Description

The Schneider Electric ATS22C32S6U soft starter is designed for 3-phase asynchronous motors. With a current rating of 320A, it supports power levels from one hundred HP to three hundred HP and voltages ranging from two hundred thirty volts to five hundred seventy-five volts AC. This soft starter is suitable for various applications, including centrifugal pumps, piston pumps, fans, screw compressors, and material handling systems. Its slim design enhances installation flexibility, allowing mounting in diverse machine frames.

• Integrated bypass to reduce noise and heat.
• Compatible with SoMove software for easy configuration.
• Ensures smooth starting to reduce mechanical strain.

Product Highlights

This soft starter features simple installation and reliable operation, enhancing the performance of your machinery while extending its lifespan.

Product Information

Standard Information

• Catalog Number: ATS22C32S6U
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage Range: 230V to 575V AC
• Current Rating: 320 A
• Dimensions: 206 mm (W) x 299 mm (D) x 425 mm (H)
• Weight: 72.75 lb
• Operating Temperature: -10 to 40 degrees C
• Warranty: 18 months
• Country of Origin: China
