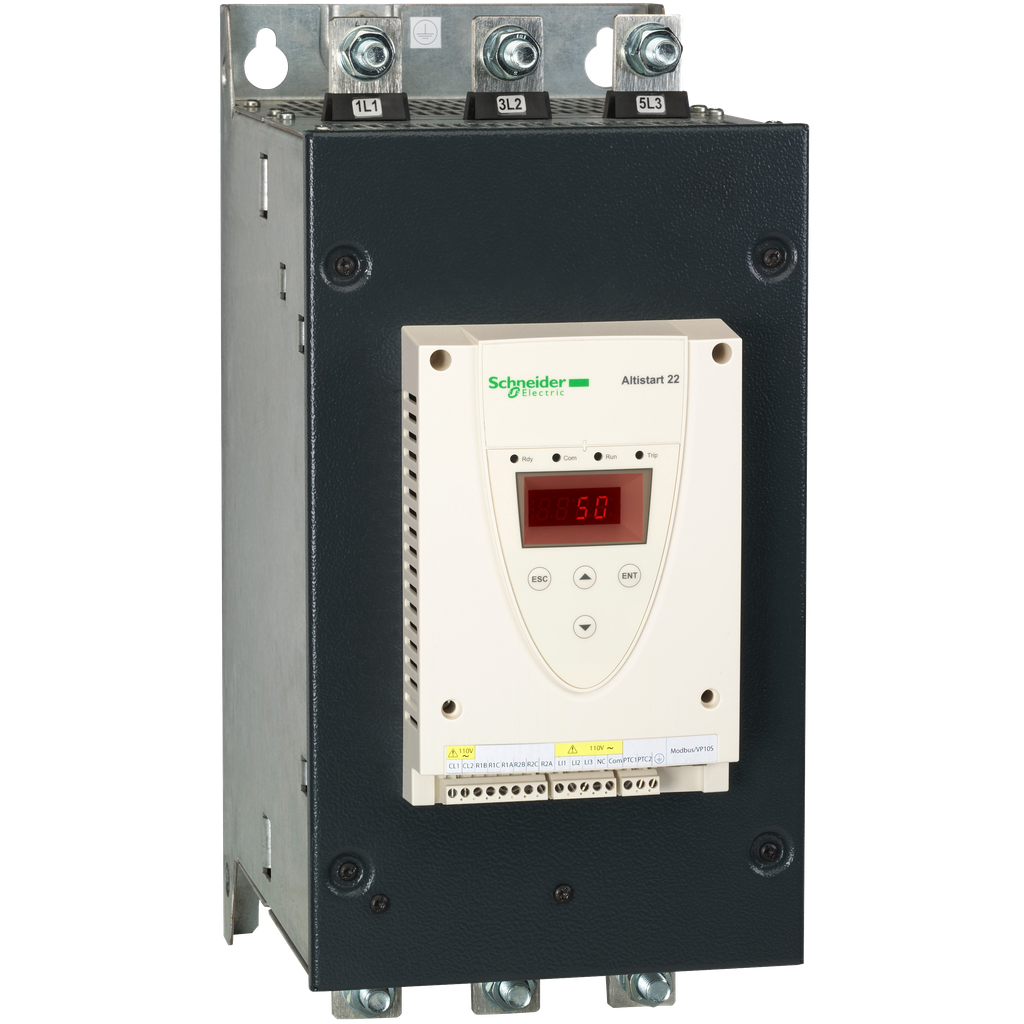

Schneider Electric ATS22C25S6U Soft Starter 110 VAC 250 Amp 110 kW

Product Description

The Schneider Electric ATS22C25S6U is a soft starter designed for 3-phase asynchronous motors. This device operates efficiently within a supply line, managing voltages from 230V to 575V AC. With a current rating of 250 Amperes, it supports horsepower between seventy-five and two hundred fifty. The soft starter finds application in various equipment including centrifugal pumps, piston pumps, fans, and material handling machinery. Its compact design ensures it can be mounted in different equipment frames. An integrated bypass feature minimizes noise and heat. The compatibility with SoMove software enables easy configuration transfers, ensuring quick installation of replacement units. This product enhances machinery life by providing smooth startups, reducing mechanical stresses.

• Voltage range: 230V to 575V AC
• Current rating: 250A
• Complementary software integration with SoMove

Product Highlights

Ideal for diverse industrial applications providing effective control for motor startups.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: ATS22C25S6U

Technical Specifications

• Catalog Number: ATS22C25S6U
• Voltage Rating: 110 V - 15...10 % 50/60 Hz
• Amperage: 250A
• Item Type: Soft starter; 1 RJ45
• Operating Temperature: -10 to 40 degrees C
• Country of Origin: China
• Warranty Length: 18 months
• Connection type: In the motor supply line
