Schneider Electric ATS22C17S6U SQD ATS22C17S6U Soft Starter for As 170A (230V/575V) Replacement MPN ATS22C17S6U

Product Description

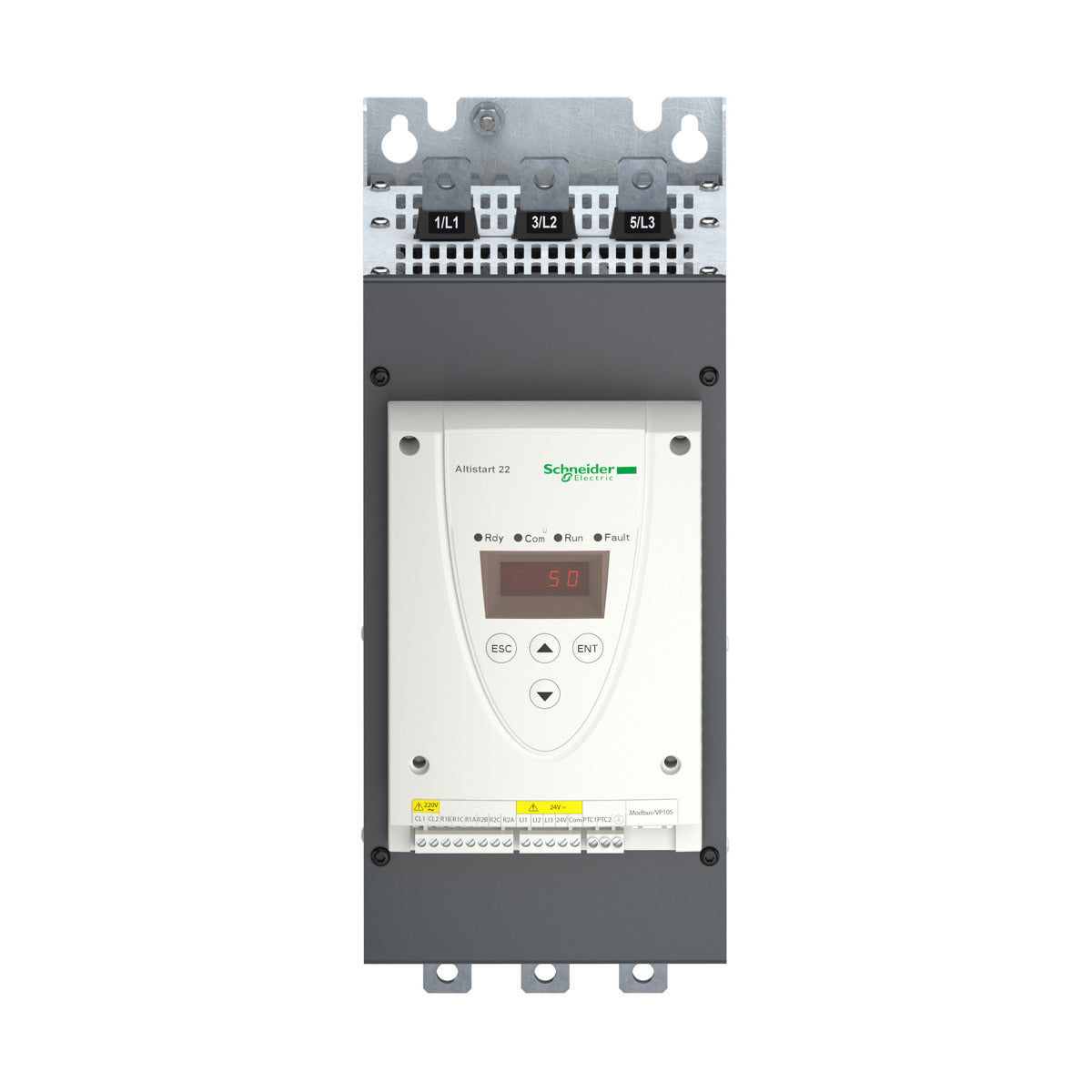

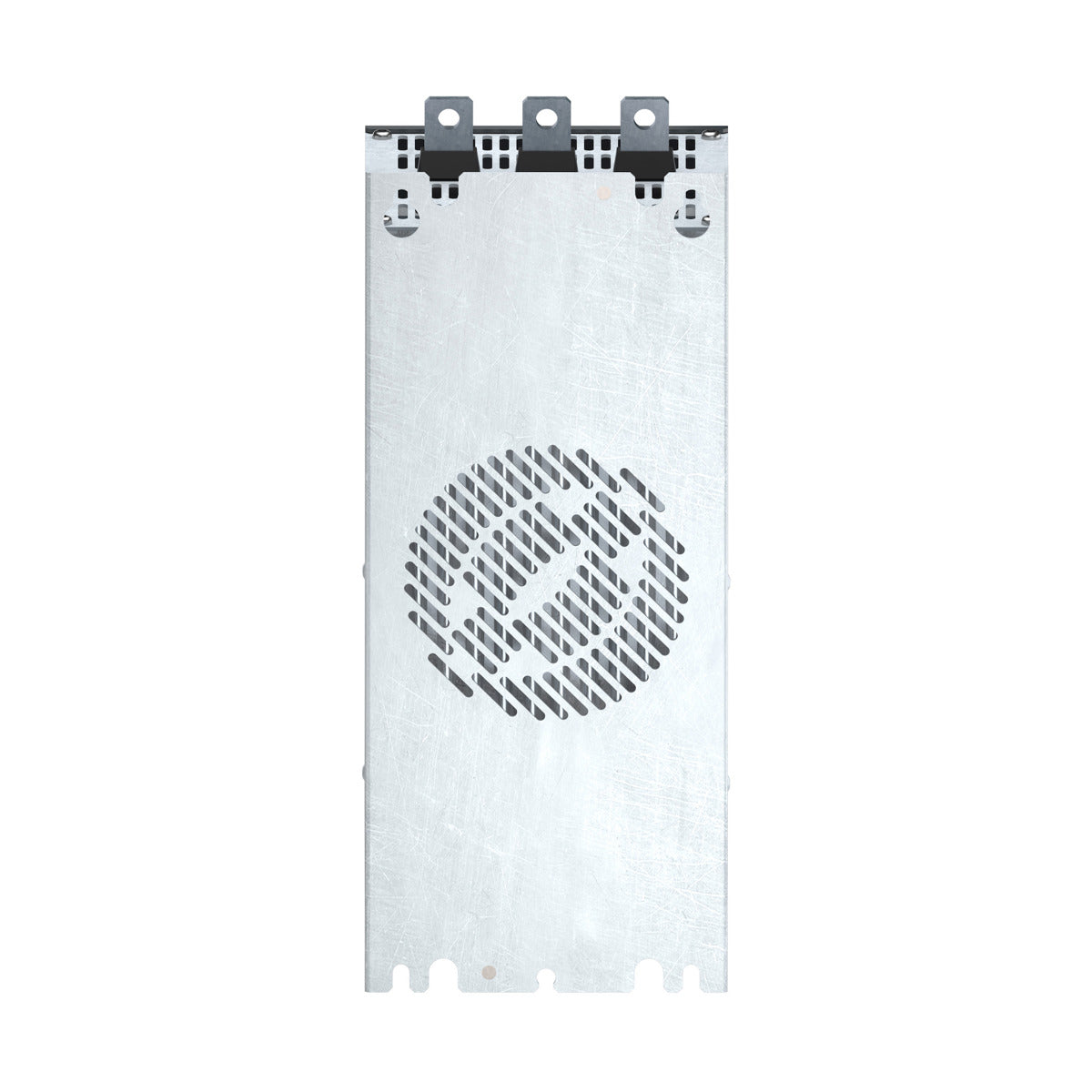

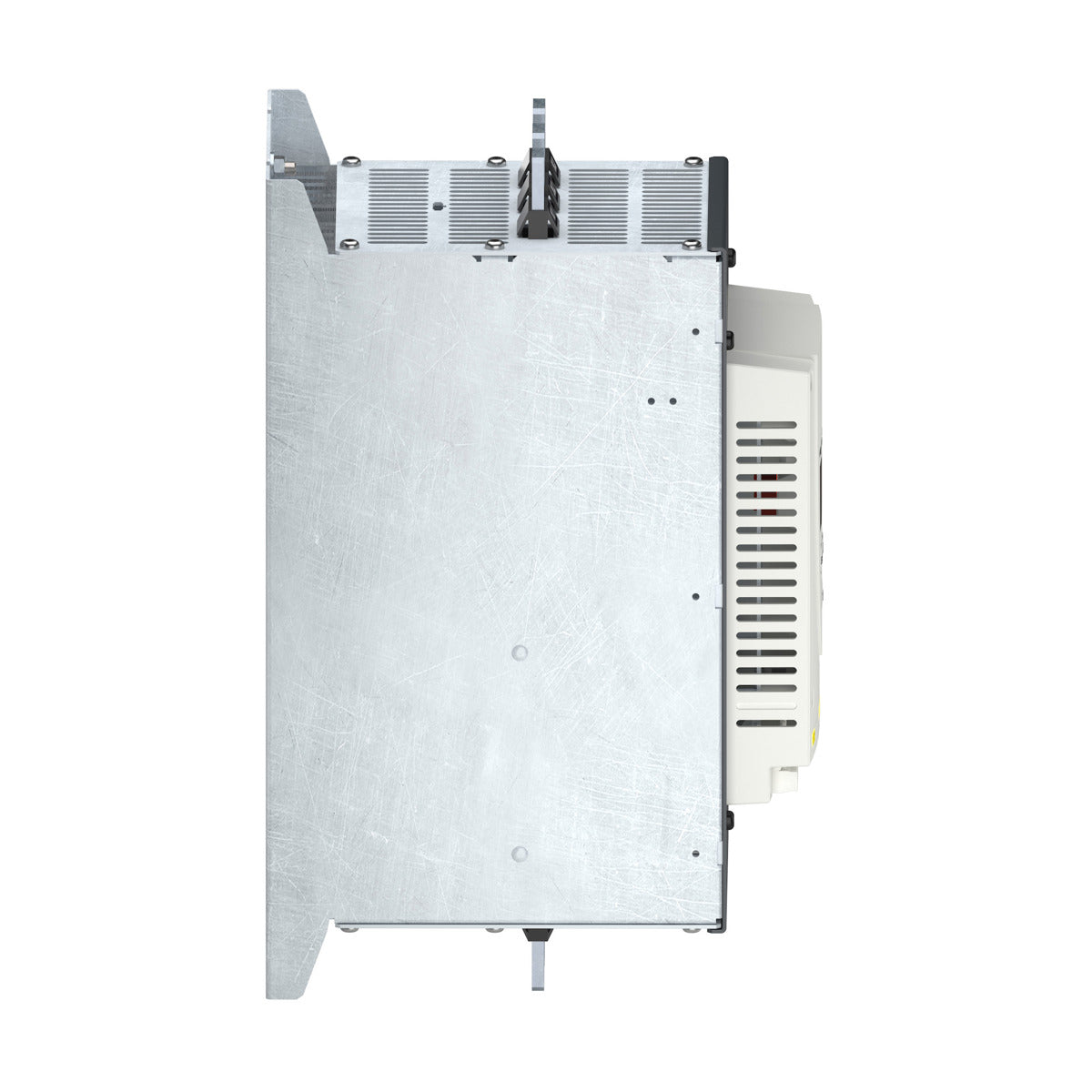

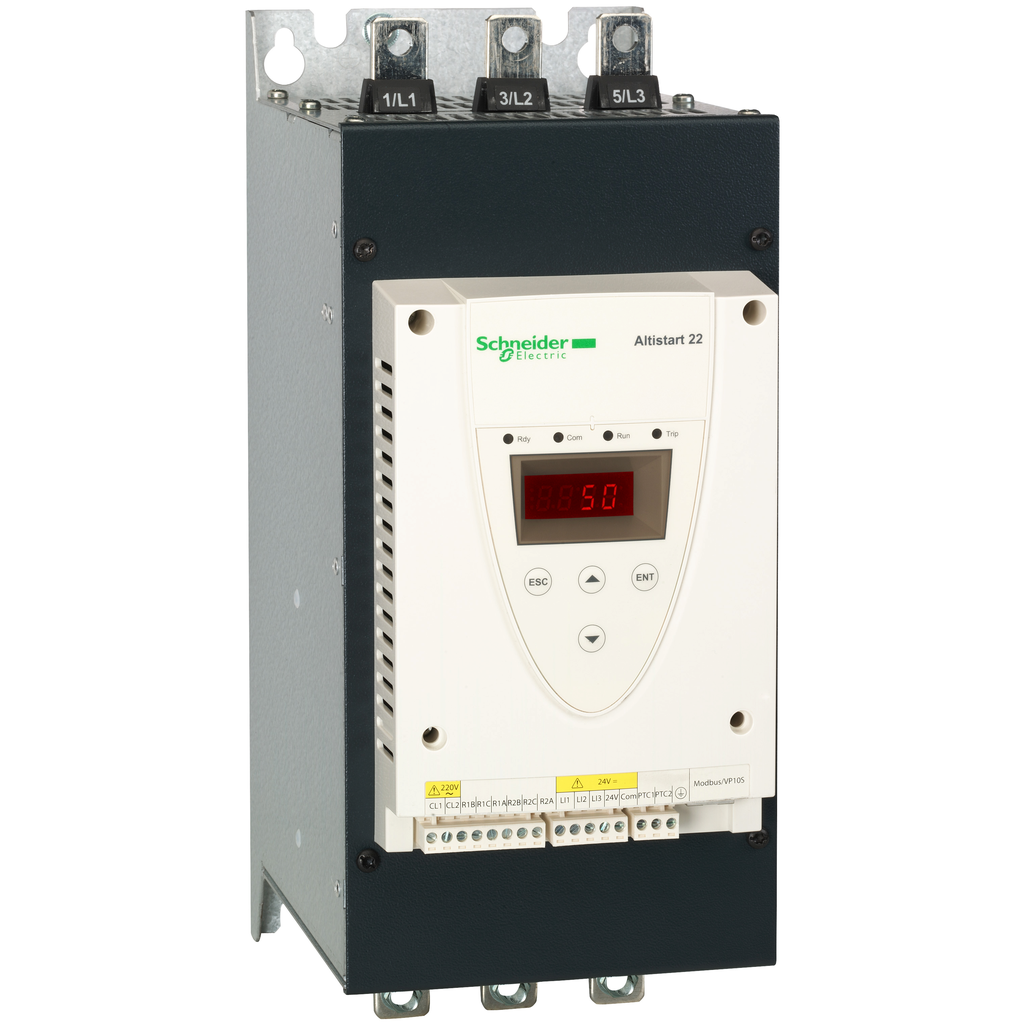

This Schneider Electric ATS22C17S6U is a soft starter designed for 3-phase asynchronous motors. It supports a power range of up to 150 horsepower and operates with voltages from two hundred thirty to five hundred seventy-five volts alternating current. Applications include centrifugal and piston pumps, fans, and material handling systems. The slim design enhances versatility, facilitating installation in various machinery types. The soft starter features an integrated bypass to minimize noise and heat dissipation. It also supports SoMove software, allowing easy configuration transfers for quick replacements.

• Rated current: 170A
• Voltage range: 230V to 575V AC
• Dimensions: 9.04 inches by 15 centimeters by 35.6 centimeters

Product Highlights

This product ensures smooth startups for machinery, prolonging their lifespan by reducing mechanical stress.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ATS22C17S6U
• Rated Power: 50HP to 150HP
• Amperage: 170A
• Voltage Rating: 177-660V, 50-60HZ
• Weight: 39.68 lb
• Country of Origin: Indonesia
• Warranty Length: 18 months
• Applications: Asynchronous Motors
