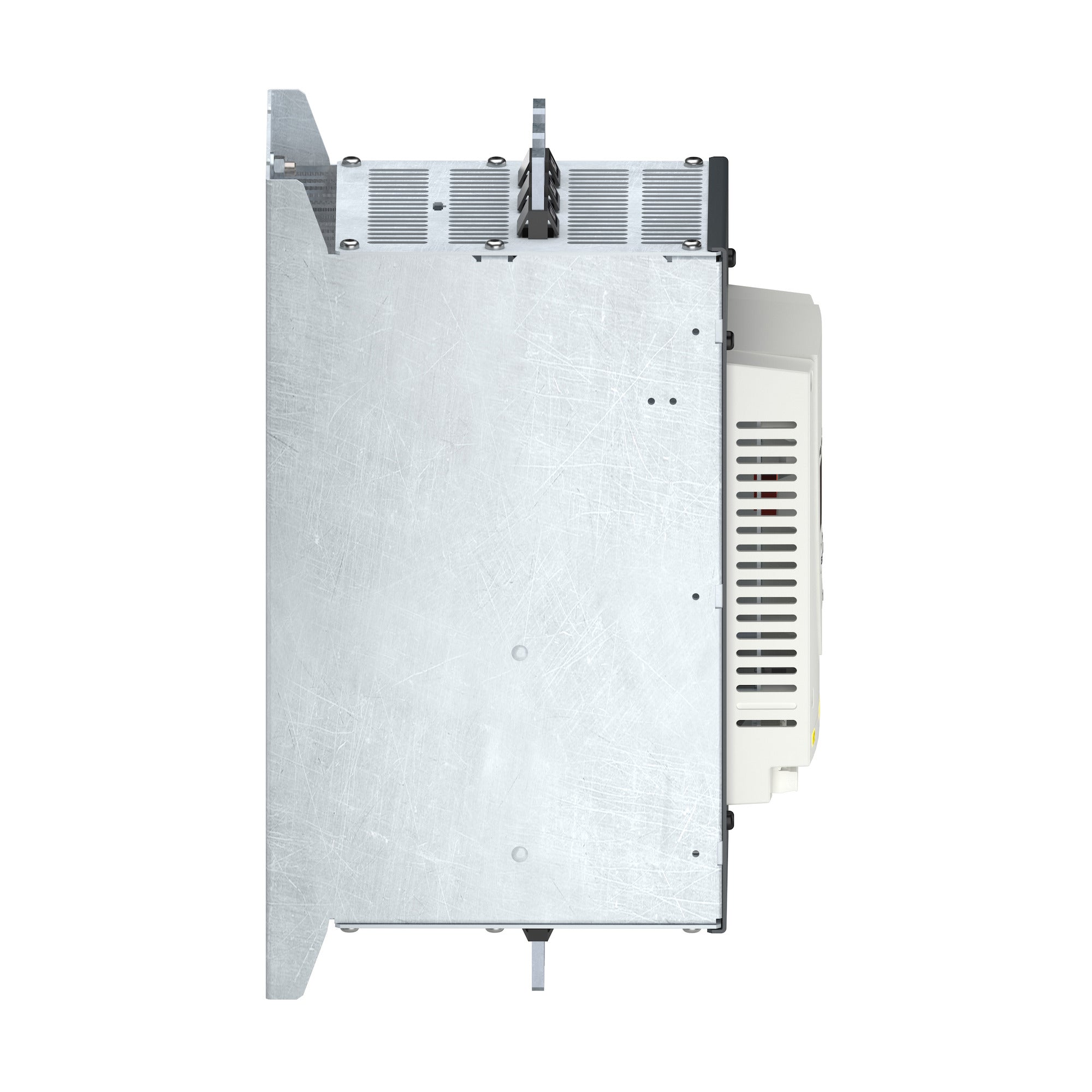

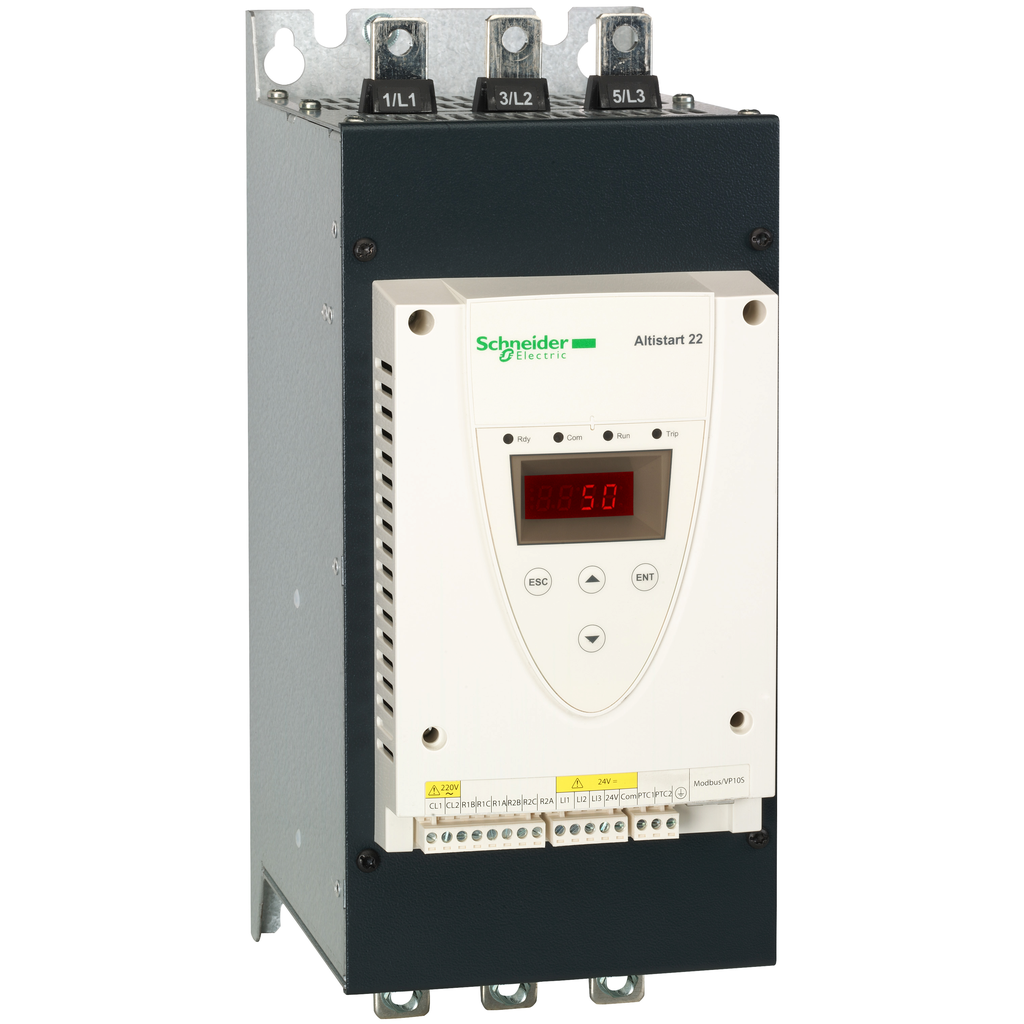

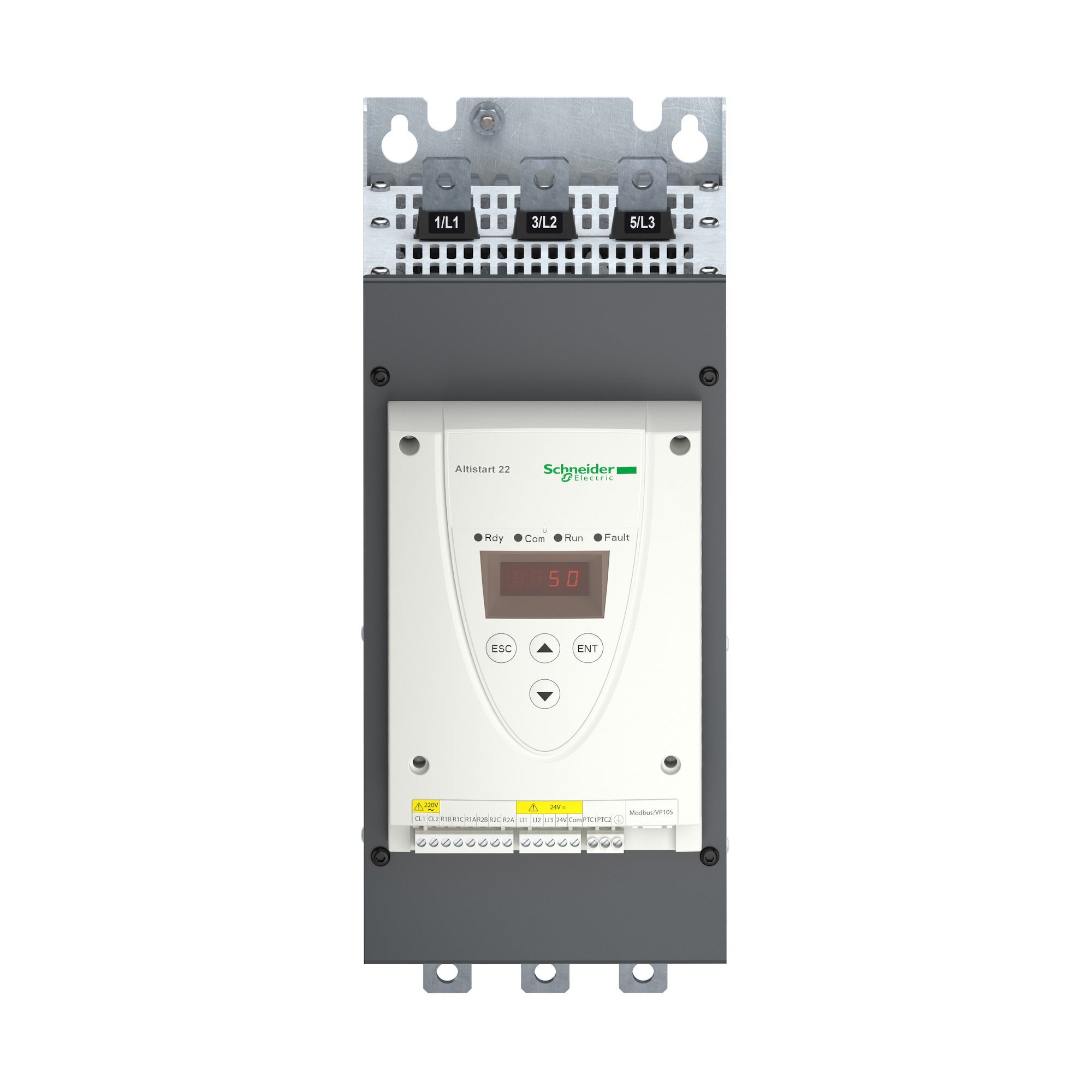

Schneider Electric ATS22C14S6U Soft Starter 110 VAC 140 Amp 55 kW

Product Description

The Schneider Electric ATS22C14S6U soft starter is designed for 3-phase asynchronous motors. It has a current rating of 140A and can handle power from 40HP to 125HP with a voltage range from 230V to 575V AC. This soft starter is suitable for various applications, including centrifugal pumps, piston pumps, fans, screw compressors, and material handling equipment.

• Compact design allows for flexible installation in different machine frames.
• Integrated bypass reduces operating noise and heat loss.
• Compatible with SoMove software for easy setup and configuration.

Product Highlights

This product offers smooth motor start-up, reducing mechanical stress and extending the life of your equipment. Its versatile design is ideal for both simple and complex machinery setup.

Product Information

Standard Information

• Catalog Number: ATS22C14S6U
• Brand: Schneider Electric

Technical Specifications

• Rated Voltage: 177-660 Volt, 50/60 Hz
• Current Rating: 140A
• Phase: 3 Phase
• Height: 14 inches
• Width: 5.91 inches
• Depth: 9.04 inches
• Weight: 39.68 lb
• Country of Origin: Indonesia
• Warranty Period: 18 months
