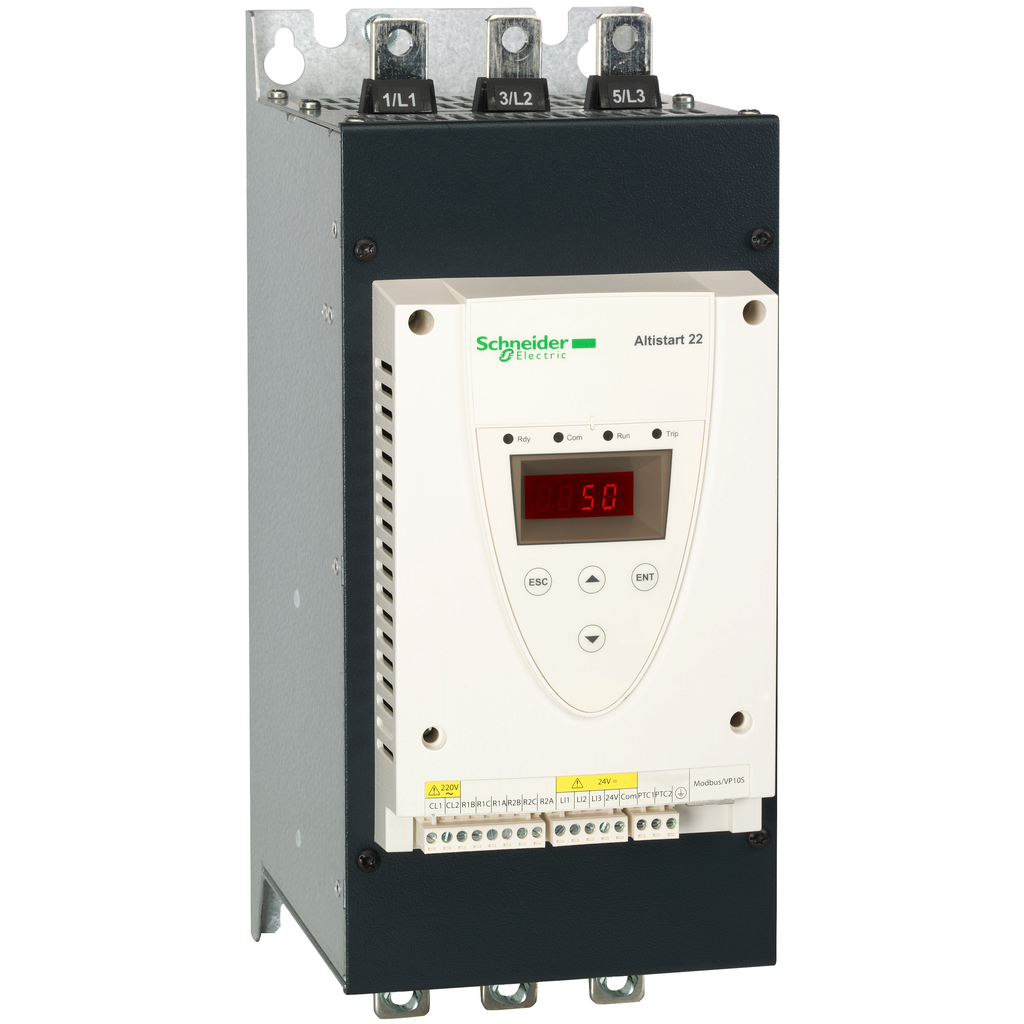

Schneider Electric ATS22C11S6U Soft Start Unit Power 110V 208 to 575V 30 to 100HP

Product Description

The Schneider Electric ATS22C11S6U Soft Start Unit is designed for 3-phase asynchronous motors with a voltage range of 208 to 600 volts. It offers smooth starting and stopping to prevent mechanical stress on machinery. With a current rating of 110 amps and power capability from thirty to one hundred horsepower, it is suitable for various applications including centrifugal pumps, fans, and material handling equipment.

• Integrated bypass for reduced heat and noise
• Compatible with SoMove software for easy configuration transfers
• Compact size for versatile mounting

Product Highlights

This unit provides controlled starts and stops which minimises mechanical stress, thereby extending equipment life.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ATS22C11S6U
• Voltage Rating: 208 to 600 Volt
• Amperage: 110A
• Power Supply: 208...600 V
• Phase: 3 Phase
• Weight: 39.68 lb
• Dimensions: 9.04 inches (Depth) x 5.91 inches (Width) x 14.02 inches (Height)
• Enclosure Rating: IP20
