Product Description

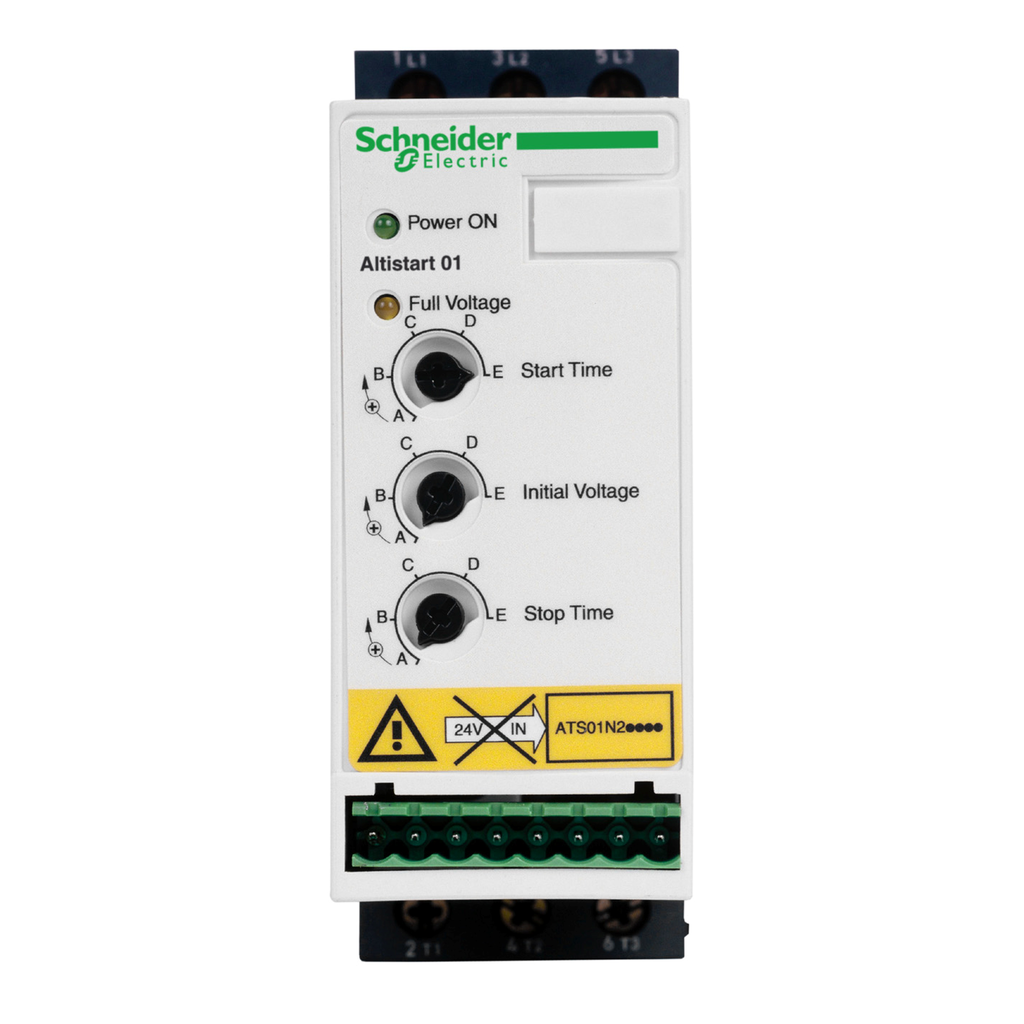

The Schneider Electric ATS01N209RT is a soft starter designed for 3-phase asynchronous motors. It handles a maximum current of nine amps and supports motor applications ranging from two horsepower up to one point five kilowatt. This device is ideal for various machines including conveyors, pumps, and fans.
- Compact design allows for installation in tight spaces.
- Integrated bypass function to reduce noise and heat.
- User-friendly setup with only two configuration settings.
Product Highlights
This soft starter minimizes mechanical stress during the starting process, extending the lifespan of your equipment.
Product Information
Standard Information
-
Brand: Schneider Electric
-
MPN: ATS01N209RT
Technical Specifications
-
Voltage Rating: 460 to 480V
-
Current Rating: 9A
-
Dimensions: 5.16 inches (length) x 1.77 inches (width) x 4.88 inches (height)
-
Weight: 0.93 lb
-
Number of Phases: Three Phase
-
Operating Temperature: -10 to 40 degrees C
-
Enclosure Rating: IP20
-
Warranty: 18 months
