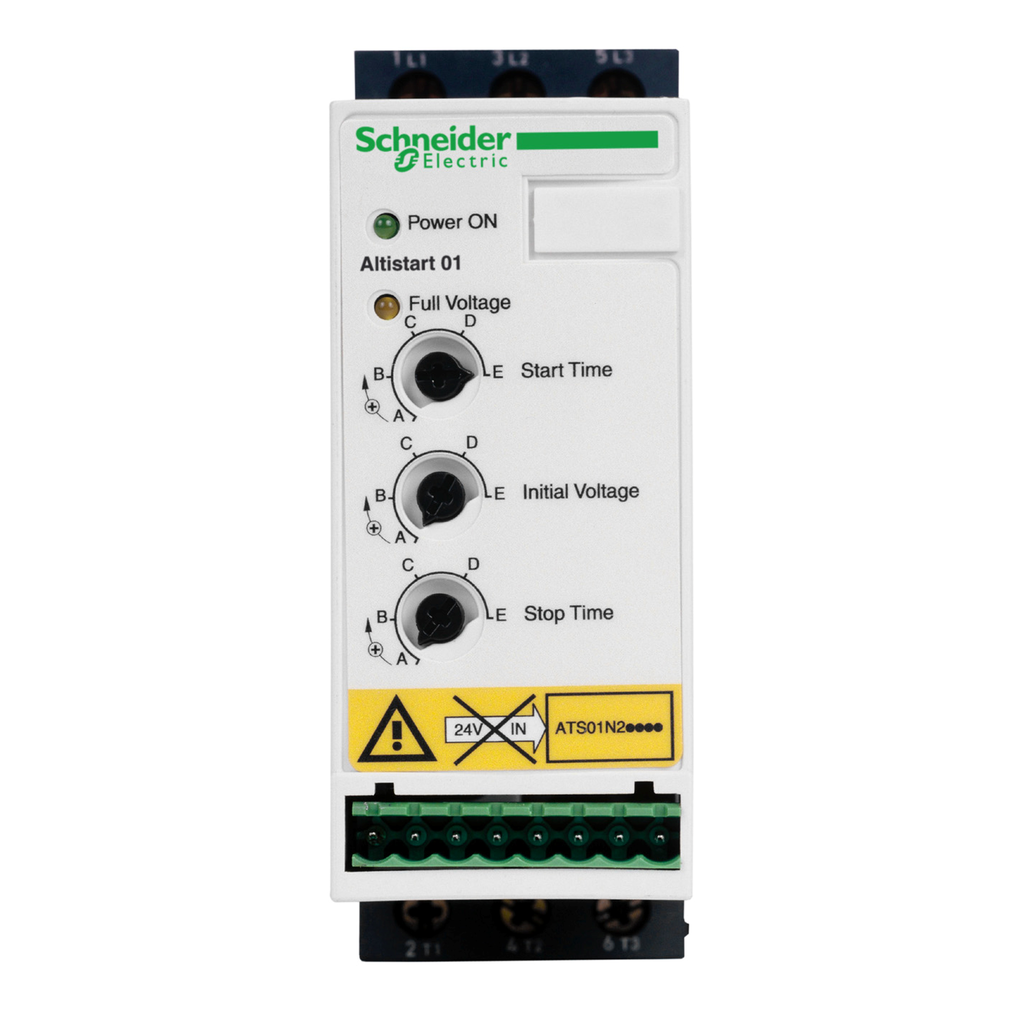

Schneider Electric ATS01N206LU SQUARED Soft Starter 6A 200 to 240V 0.75 to 1.1kW

Product Description

The Schneider Electric ATS01N206LU is a soft starter designed for three-phase asynchronous motors with a rating of up to six amperes. This unit manages power up to 1.1 kilowatt or 1.5 horsepower for three-phase applications operating between two hundred volts to two hundred forty volts AC. It is suitable for simple machinery such as conveyors, pumps, fans, compressors, and automated systems.

• DIN rail mountable design
• Integrated bypass for reduced noise
• Simple two-setting configuration

Product Highlights

Compact size of forty-five millimeters allows for installation in tight spaces. Engineered to provide smooth startups, this soft starter minimizes mechanical stress on equipment, extending operational life.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ATS01N206LU
• Depth: 131 mm
• Width: 45 mm
• Height: 124 mm
• Weight: 0.93 lb
• Voltage Rating: 200 to 240V
• Current Rating: 6A
• Phase: 3 Phase
• Country of Origin: Germany
• Warranty: 18 months
