Schneider Electric AH14A020 Erie PopTop Actuator 24 VAC

Product Description

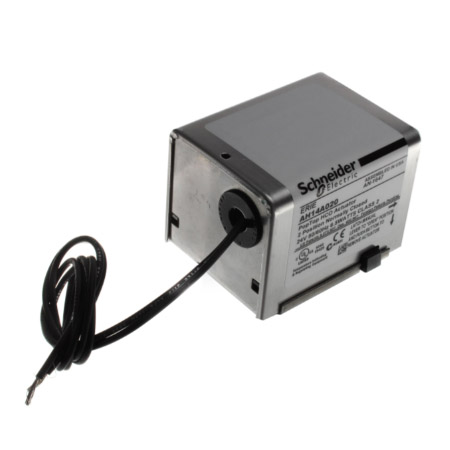

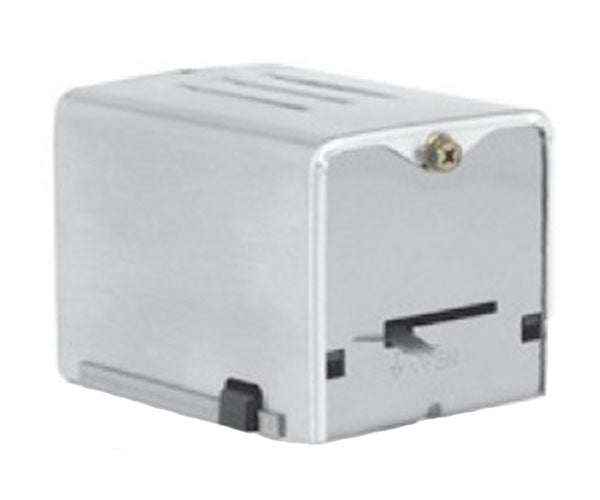

The SCHNEIDER ELECTRIC AH14A020 Erie PopTop Actuator is a spring return, normally closed, two-position motor actuator. It features a high close-off and high temperature rating. Designed for easy installation in heating and cooling systems. The actuator can be easily attached after the valve body has been installed into the system.

• One-Handed Engagement Or Removal Of The Motorized Actuator To The Valve Body
• Valve Actuator Can Be Easily Attached After The Valve Body Has Been Installed Into The System
• Mounts Quickly And Easily Without The Need Of Linkages Or Calibration

Product Highlights

This actuator offers convenient, reliable, and easy installation for a variety of heating and cooling applications. It features a removable actuator to aid in both installation and service.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: AH14A020
• Country of Origin: Mexico

Technical Specifications

• Housing: NEMA 1, IP10
• Auxiliary Switch: 2
• Power Consumption: 6.5 Watts, 7.5 VA
• Operating Conditions: 32 F To 200 F (Fluid) At 169 F
• Electrical Connection: 18 in. Standard Wire Leads
• Pressure Differential: 75 psi
• Voltage: 24 VAC
• For Use With: VS VALVES
• Watts: 6.5 w
• Fail-Safe: Spring Return
• Control Signal: Two Position
• Drive Time: 25 seconds maximum @ 60 Hz
• Spring Return Time: 9 seconds maximum
• Operating Temperature: AG actuator: maximum ambient 104°F (40°C); AH actuator: maximum ambient 169°F (77°C)
• Timing, Full Open to Full Close: 25 seconds maximum for 60 Hz 30 seconds maximum for 50 Hz 9 seconds maximum spring return
• Materials: Stainless steel base plate, aluminum cover
• Ambient Temperature Limits: Shipping and storage: -40 to 160°F (-40 to 71°C) Operating: 32 to 250°F (fluid) at 169°F (ambient) (0 to 121°C at 76°C), and/or 15 PSI (103 kPa) steam
• Humidity: 5 to 95% relative humidity, non-condensing
• Agency Listings: UL873: Underwriters laboratories (File #E94929 Category Temperature Indicating and Regulating Equipment) CUL: UL Listed for use in Canada by Underwriters Laboratory; Canadian Standards C22.2 No. 24 European Community: 'EMC Directive (89/336/EEC). Low Voltage Directive (72/23/EEC) Australia: This product meets requirements to bear the C-Tick Mark according to the terms specified by the Communications Authority under the Radio Communications Act of 1992
• Package Quantity: 1
• Certifications & Standards: AbilityOne, ADA Compliant, GSA Approved, Made in the USA, TAA/BAA Compliant, UL Listed
