Schneider Electric AH13A02A 24V HCO S/R Actuator With End Switch 1 Pack

Product Description

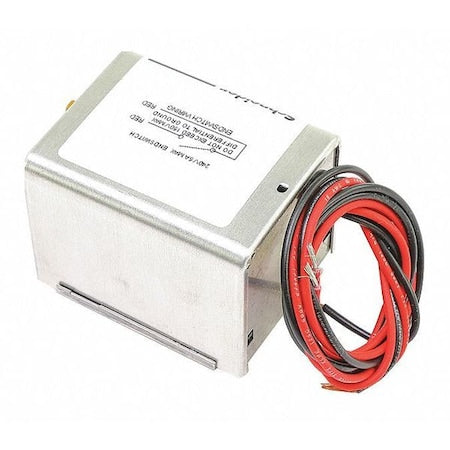

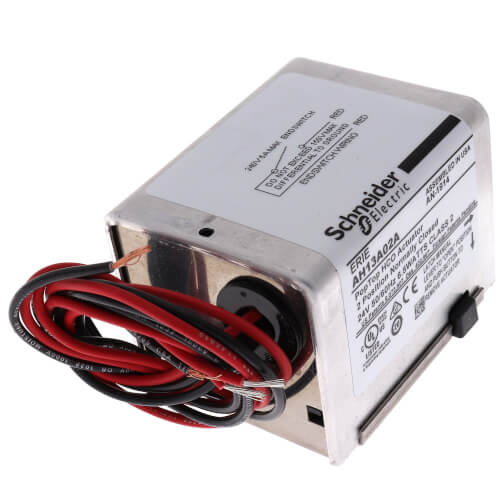

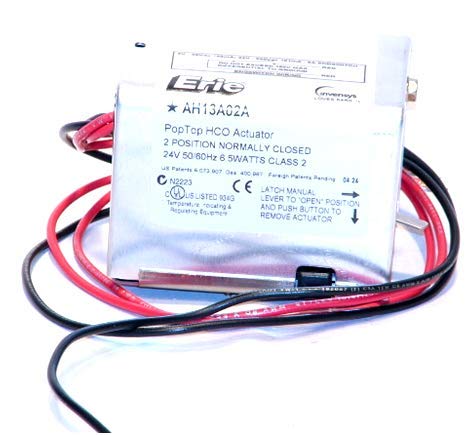

The Schneider Electric AH13A02A is a 24V high close-off spring-return actuator equipped with an end switch. This device is engineered for reliable operation and easy installation in various industrial and HVAC applications.

• Simple snap-on installation enhances usability.
• Integrated end switch for precise control.
• Durable construction suitable for demanding settings.

Product Highlights

This actuator offers smooth operation with a temperature control range from 32 to 200 degrees Fahrenheit. It operates on 24V AC and can handle up to 75 psi pressure differential close-off. Suitable for use with VT valves, it features 18 leads for enhanced functional connectivity.

Technical Specifications

• Brand: Schneider Electric
• MPN: AH13A02A
• Voltage: 24V AC
• Pressure Rating: up to 75 psi
• Temperature Range: 32 to 200 degrees Fahrenheit
• Connection Type: SPDT
• Control Signal: On/Off, 2 position, spring return
• Construction Materials: stainless steel base plate, aluminum cover
