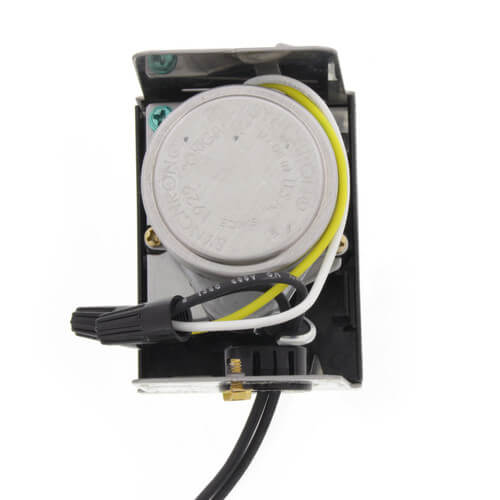

Schneider Electric AG14A000 24V High Temp PopTop Actuator

Product Description

Schneider Electric introduces the AG14A000, a 24V PopTop actuator designed for straightforward installation in heating and cooling applications. This actuator facilitates post-installation adjustments with its innovative aspect of being mounted directly onto fan coils, baseboards, or air handlers.

• Easy post-valve body installation process.
• Features synchronous motor drive with spring return.
• Manual override capability on normally closed models.

Product Highlights

The AG14A000 actuator is built for efficiency, featuring a normally closed position that enhances temperature control precision in various environments. Its compact design allows direct mounting without additional linkages, streamlining the installation process.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: AG14A000
• Category: Actuators

Technical Specifications

• Type: PopTop Actuator
• Voltage: 24V
• Position: Normally Closed
• Operation Cycle: 9 to 11 seconds to open/close
• Spring Return: 4 to 5 seconds
• Mounting: Direct without linkages
• Wiring: 6 inches Motor Wires
• Weight: 2 pounds
