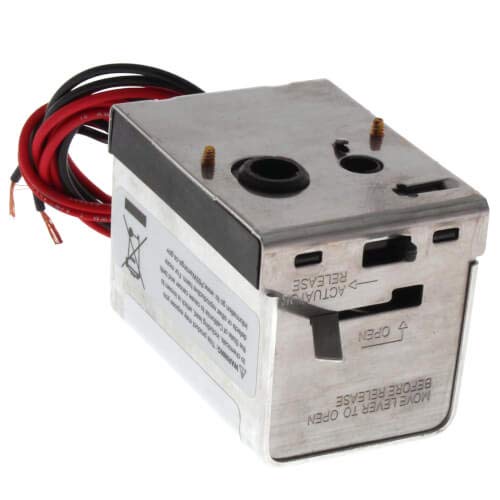

Schneider Electric AG13U02A 230V Normally Closed Spring Return PopTop Actuator

Product Description

The Schneider Electric model AG13U02A is a robust spring return PopTop actuator designed for efficient operation in various heating and cooling applications. This actuator is engineered to simplify installations on fan coils, baseboards, or air handlers without the need for linkages or calibration.

• Easy installation with no need for linkages or recalibration.
• Features a synchronous motor with spring return.
• Manual override option available on its normally closed configuration.

Product Highlights

With its general close-off position and ability to handle 230 volts, this actuator delivers reliable performance. It comes equipped with 18-inch leads and an end switch, making it versatile for various system configurations.

Product Information

Standard Information

• Voltage: 230v
• Actuator Type: General Close-Off
• Position: Normally Closed
• Temperature Ratings: General
• Wiring: 18-inch Leads
• Switch Type: End Switch

Technical Specifications

• Weight: 1.04 lbs
• Dimensions: Height: 2.75 inches, Width: 3.88 inches, Depth: 5.44 inches
